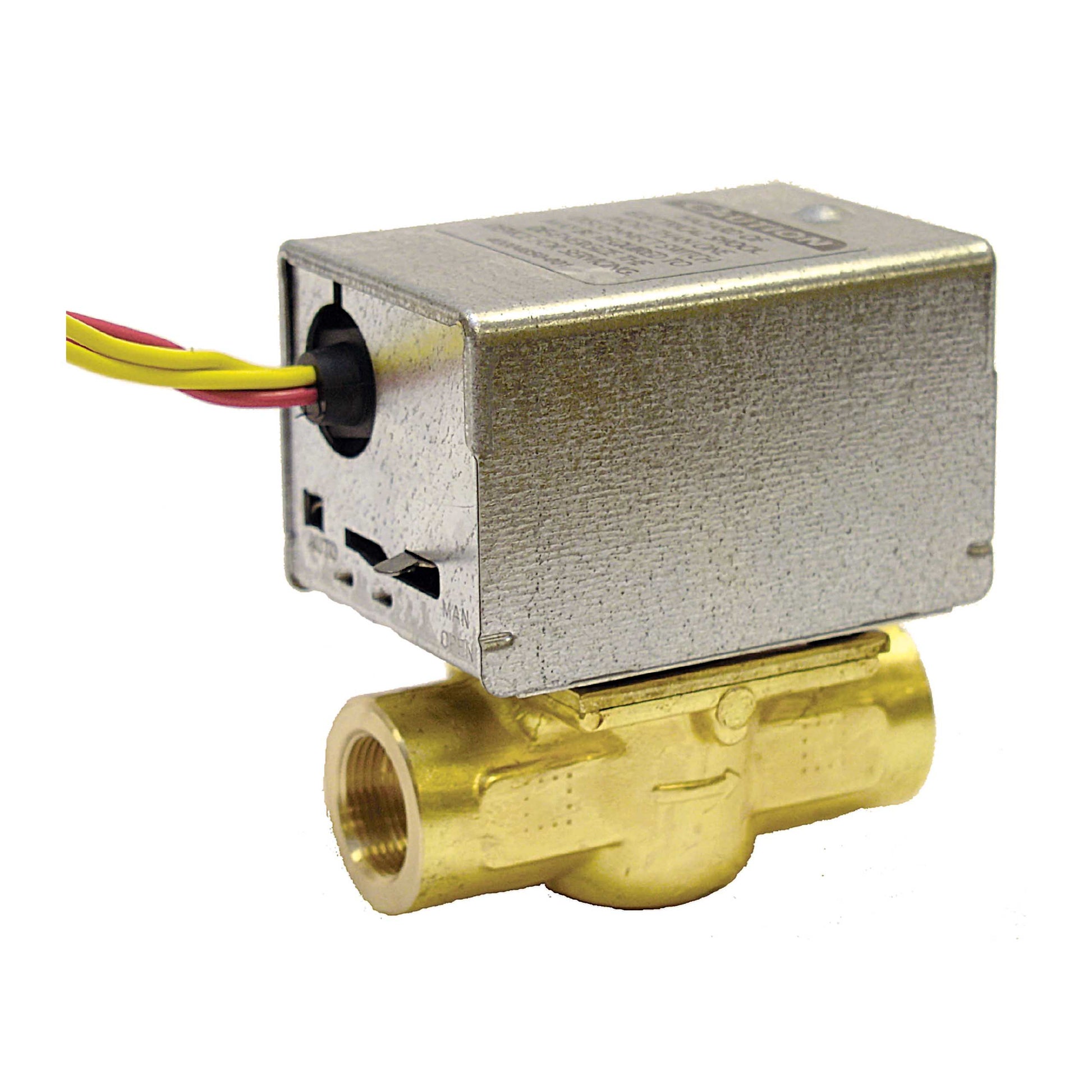

Resideo - Honeywell Home V8043E1129 Motorized Zone Valve

The Motorized Zone Valve with the model V8043E1129 from Resideo–Honeywell Home delivers precise 2-way zoning control for hydronic heating systems. This normally closed, 2-position valve features a spring-return to close and opens in about 15 seconds, ensuring fast zoning response. With a 1/2 inch nominal size and inverted flare end connections, it fits standard piping. The brass body houses a stainless steel stem, EPDM packing, and Buna-N plug, delivering durable performance for hot water up to 200°F and up to 125 psi static pressure. Designed for low-voltage control, it draws 24 VAC at 0.32 A (roughly 7.7 VA) and includes an 18-inch lead and a manual opener for partial manual operation. UL-listed and suitable for hydronic control, this valve supports a flow coefficient (Cv) of 3.5 and is built for reliable, long-term operation in residential or light commercial systems.

• 2-Way, straight-through flow for efficient zoning
• Nominal 1/2" size with inverted flare end connections
• Brass body with stainless steel stem, EPDM packing, and Buna-N plug
• 2-position, spring-return to close; normally closed
• 15-second open timing and Cv of 3.5
• 24 VAC input, 0.32 A (≈7.7 VA), 18" lead, manual opener
• Hot water up to 200°F; static pressure 125 psi; ambient 125°F
• UL-listed; low-voltage control; ideal for hydronic control applications
