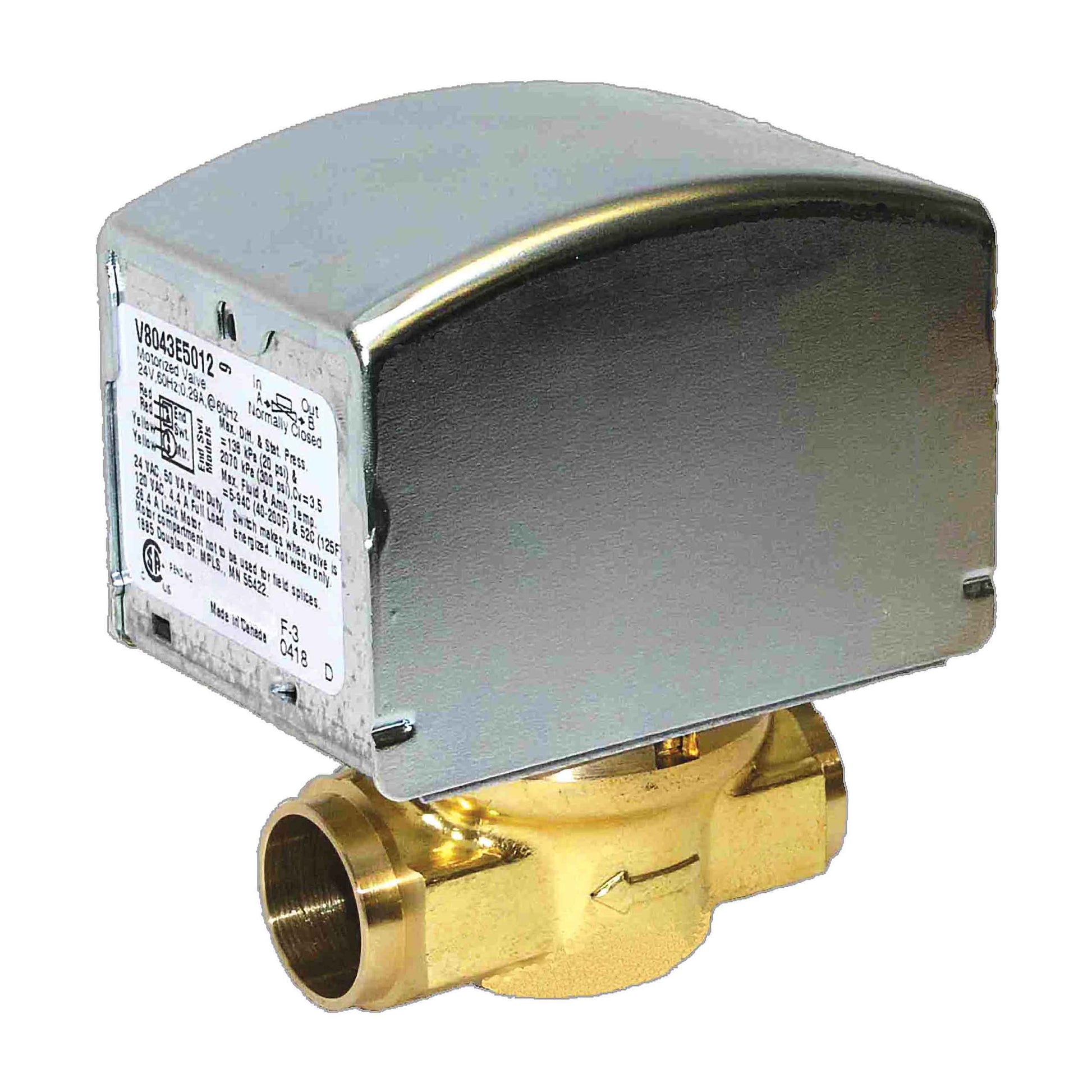

Resideo - Honeywell Home V8043E5012 Motorized Zone Valve

The Motorized Zone Valve V8043E5012 delivers precise hydronic control for hot water heating systems. This 2-way, straight-through valve provides reliable flow management, with a 3/4 inch nominal size, soldered x soldered end connections, and a 2-position, spring-return-to-close actuator that ensures the valve remains normally closed until energized.

Durable construction features a brass body, stainless steel stem, EPDM rubber packing, and Buna-N rubber ball (plug/ball/disc), designed for hot water service from 50 to 200°F. It withstands 20 psi close-off and 300 psi static pressure, with low-voltage operation (7.2 VA at 24 VAC, 60 Hz) and an 18-inch electrical lead. The unit includes a manual opener and SPST end switch for straightforward integration into hydronic control schemes (CSA certified).

Ideal for zoned heating and cooling systems where reliable, energy-efficient control is essential, the V8043E5012 combines compact size with robust performance in non-condensing environments with 5–95% relative humidity.

• 2-Position, Spring Return to Close
• 3/4" Nominal Size with Soldered x Soldered Ends
• Brass Body, Stainless Steel Stem, EPDM Packing, Buna-N Ball
• Hot Water Media (50–200°F)
• 20 psi Close-Off / 300 psi Static
• 18" Electrical Lead; Manual Opener; SPST End Switch
• Flow Capacity: 3.5 Cv
• CSA Certified
