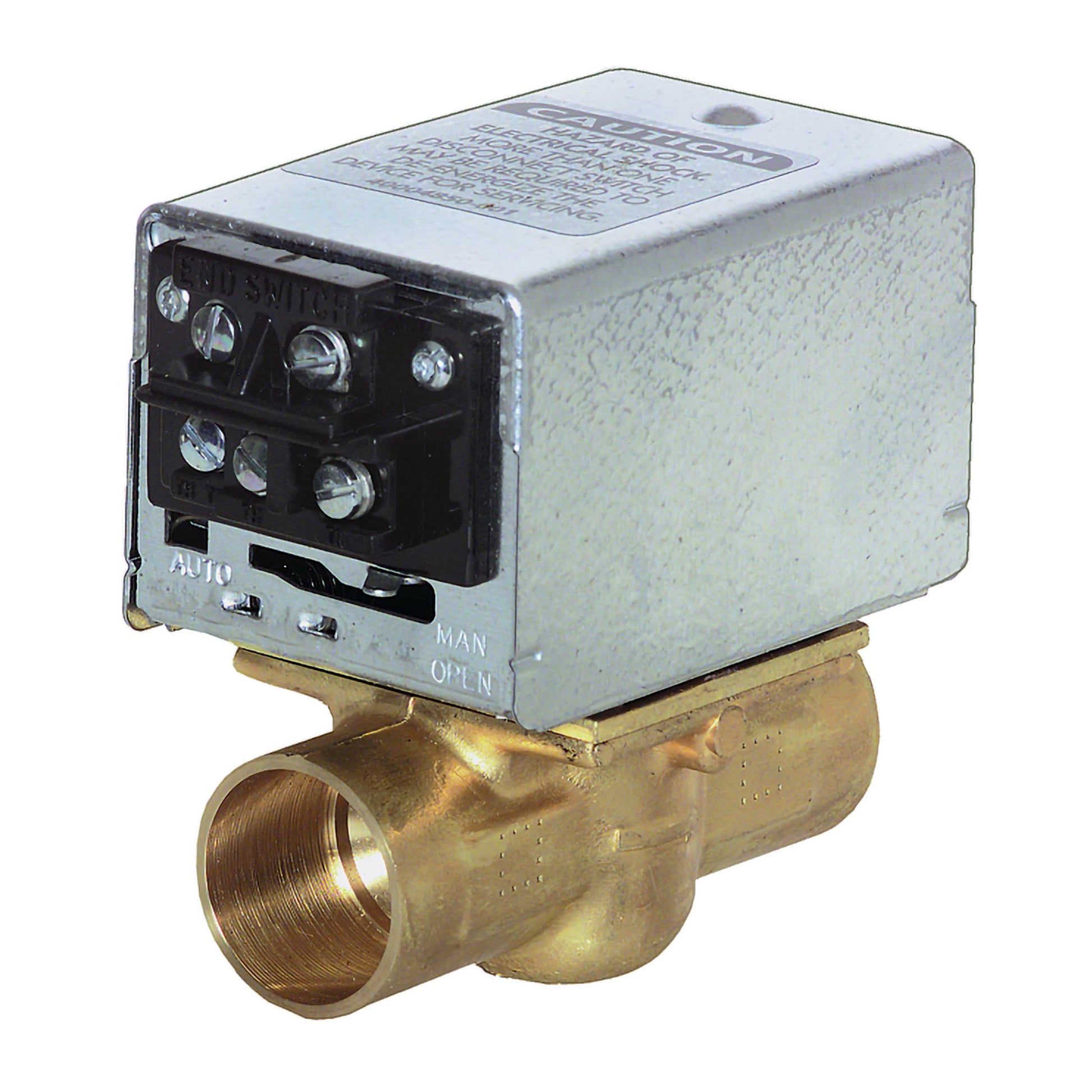

Resideo - Honeywell Home V8043F1093 Motorized Zone Valve

V8043F1093 motorized zone valve from Honeywell Home by Resideo delivers precise, automatic control for hydronic heating and hot-water systems. This 2-Way, 2-Position valve uses electric actuation and a spring-return to close mechanism for reliable shutoff. With a 3/4 inch nominal size and soldered x soldered end connections, it mounts cleanly into standard piping and features a durable brass body for hot-water service.

Designed for hydronic control, the V8043F1093 balances performance and compatibility with boiler controls. Key specifications: 24 VAC, 0.32 A coil, 125°F media rating, and 8 Cv flow. It accommodates close-off pressure of 8 PSI and static pressure of 125 PSI, ensuring robust operation in residential and commercial installations. The unit includes a manual opener and an end switch for easy integration with control systems, and it uses a stainless steel stem and Buna-N plug/disc for long life.

• 2-Way, 2-Position operation for precise valve control
• 3/4" nominal size with soldered end connections
• Electric actuation with spring-return to close
• Brass body; stainless steel stem; Buna-N seal
• Manual opener and end switch for boiler/controls compatibility
• UL and CSA listed for safety and performance
