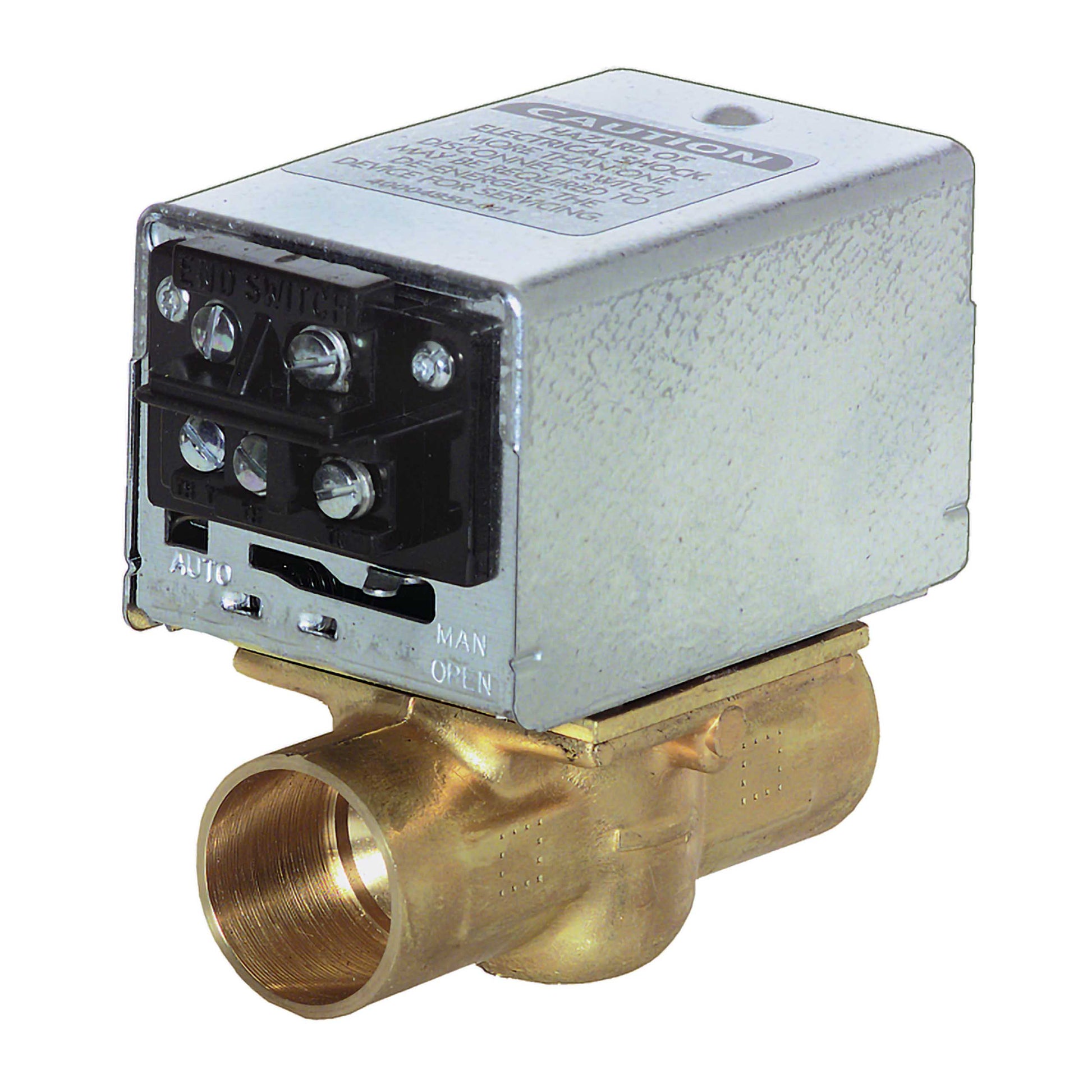

Resideo - Honeywell Home V8043F1101 Motorized Zone Valve

Resideo - Honeywell Home V8043F1101 Motorized Zone Valve is a 2-Way, straight-through valve designed for precise hot water control in hydronic systems. It is normally closed with a spring-return to ensure reliable shutoff, featuring a 15-second open time for fast zone response.

Engineered for durability, the valve uses a brass body, stainless steel stem, EPDM packing, and Buna-N ball plug. It operates on low voltage 24 VAC (7.7 VA) with an 18-inch lead and a SPST end switch for straightforward integration into hydronic controls.

• Nominal size: 1 inch, with soldered x soldered end connections
• 2-Way, straight-through flow for predictable performance
• Normally closed with spring-return to close
• Flow capacity: 8 Cv; 15-second opening
• Media: hot water; rated up to 200°F
• Ambient temp up to 125°F; non-condensing 5–95% RH
• Brass body, stainless steel stem, EPDM/Buna-N materials
• UL/CSA listed for hydronic control applications
• Electrical: 24 VAC, 7.7 VA, 18 in leads; SPST end switch
