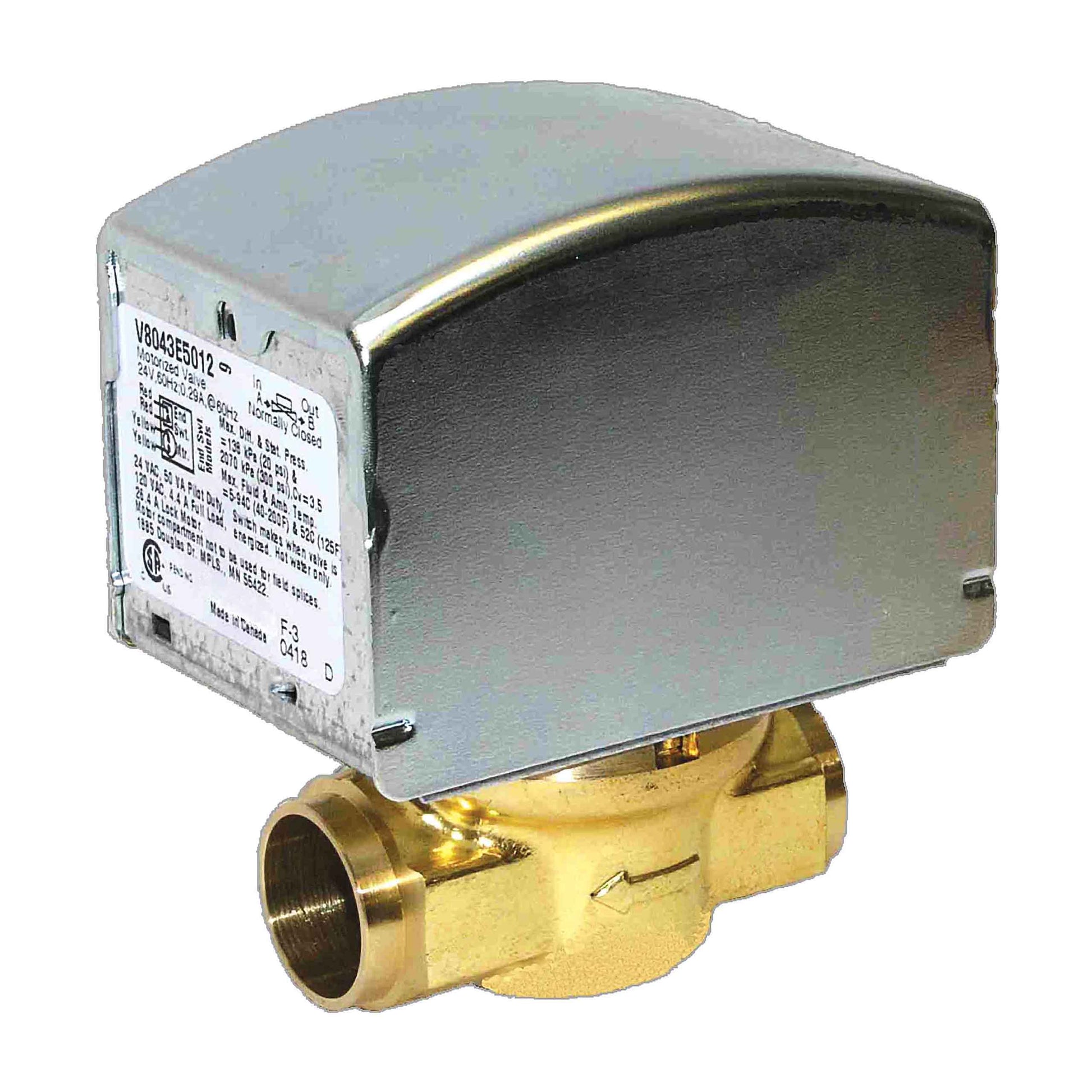

Resideo - Honeywell Home V8043F5093 Motorized Zone Valve

Motorized Zone Valve technology from Resideo Honeywell Home V8043F5093 delivers precise hydronic control for hot water systems. This 2-Way, straight-through valve is 3/4 inch nominal and features soldered end connections for reliable, leak-free installation.

With a 2-position actuator and spring return to close, the valve is normally closed, providing fail-safe operation. Open time is approximately 15 seconds, enabling quick zone activation. The compact brass body houses a stainless steel stem and EPDM packing with Buna-N seals, rated for hot water media from 50 to 200 F.

Designed for robust performance in hydronic control applications, it supports 8 Cv flow, up to 8 psi close-off and 300 psi static pressure, and operates from low-voltage control (7.2 VA at 24 VAC, 0.32 A). The electrical connection uses a screw terminal block and it includes a manual opener and an SPST end switch for straightforward wiring and testing. CSA-certified, this valve is built for reliability in residential or light commercial hot-water systems.

• 2-Way, straight-through flow; normally closed
• Nominal 3/4" size with soldered x soldered end connections
• 2-position actuator with spring return to close; 15-second open
• Flow capacity: 8 Cv; Close-off: 8 psi; Static: 300 psi
• Materials: brass body; stainless steel stem; EPDM packing; Buna-N ball
• Low-voltage control (7.2 VA @ 24 VAC); SPST end switch; manual opener
• Hydronic control for hot water media; CSA standard
• Dimensions: 3-1/2" W x 2-3/8" D x 4-3/8" H
