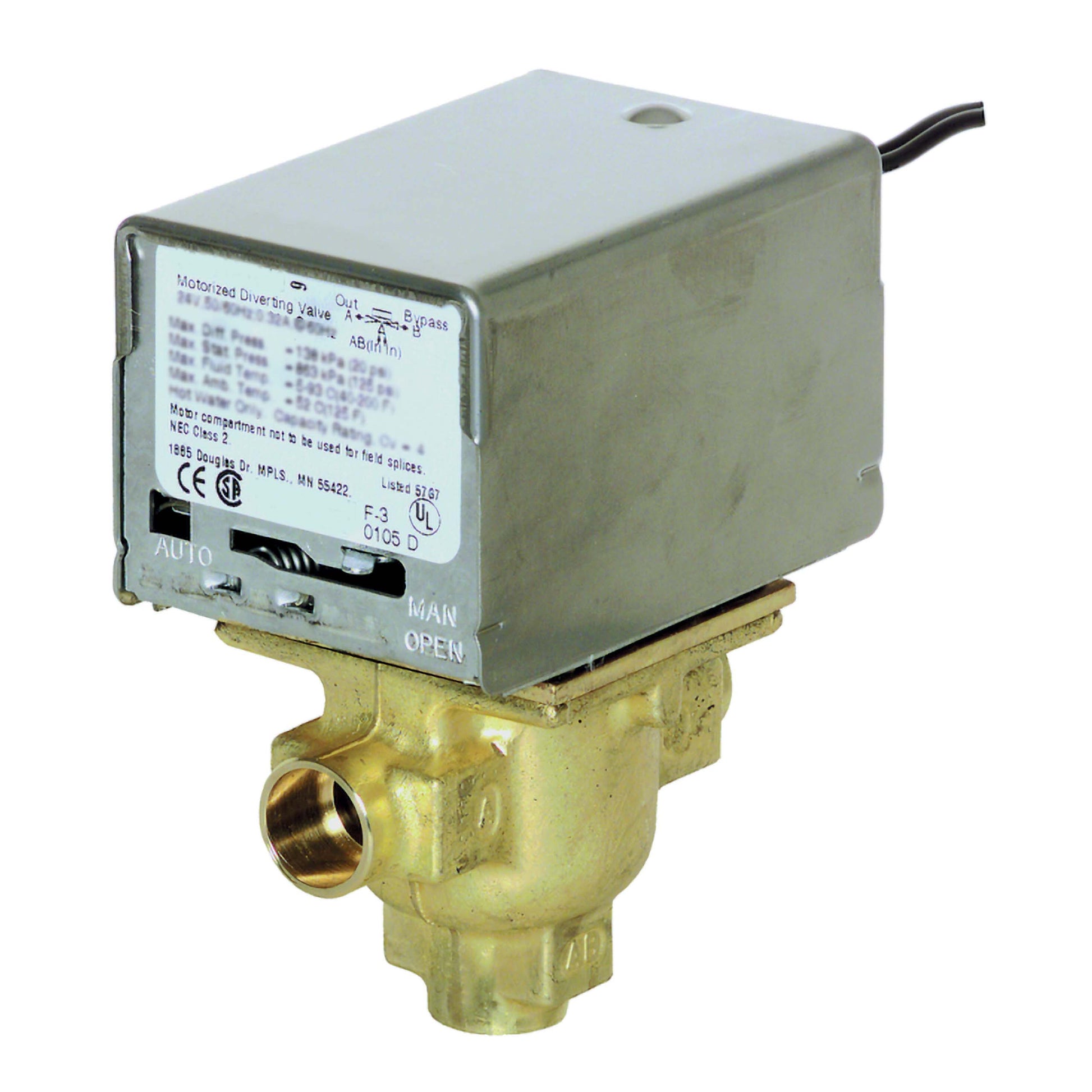

Resideo - Honeywell Home V8044A1010 Motorized Zone Valve

V8044A1010 Motorized Zone Valve from Resideo - Honeywell Home is a robust 3-Way valve designed for hot water hydronic control. This normally closed valve uses a 2-position, spring-return actuator to divert flow between ports A and B, delivering a reliable 30-second open time for precise zone isolation.

Constructed for durability in demanding environments, it features a brass body, stainless steel stem, Buna-N seating, and EPDM packing to ensure dependable operation in hot-water systems. With 1/2 inch nominal size and soldered x soldered end connections, it fits compact hydronic circuits from radiant floors to boiler loops. The valve offers a flow capacity of 4 CV and a close-off pressure of 20 psi, up to 125 psi static, making it suitable for a range of system pressures.

Electrical and control specs support easy integration: low-voltage actuation (7.7 VA at 24 VAC, 0.32 A) with an 18-inch lead, plus a manual opener for service and testing. It operates across 40–200°F (media) and 5–95% humidity (non-condensing), and it’s UL and CSA listed for safe, compliant use in hydronic control applications.

• Type: 3-Way, End connections: Soldered x Soldered
• Actuation: 2-Position, Spring Return to Port A Close, Diverting
• Valve position: Normally Closed
• Materials: Brass body; Stainless steel stem; Buna-N ball/plug/disc; EPDM packing
• Timing: 30 seconds open
• Electrical: 7.7 VA at 24 VAC, 0.32 A; 18 in lead
• Media: Hot Water
• Temperature range: 40–200°F; Humidity 5–95% non-condensing
• Applications: Hydronic control; UL CSA listed
