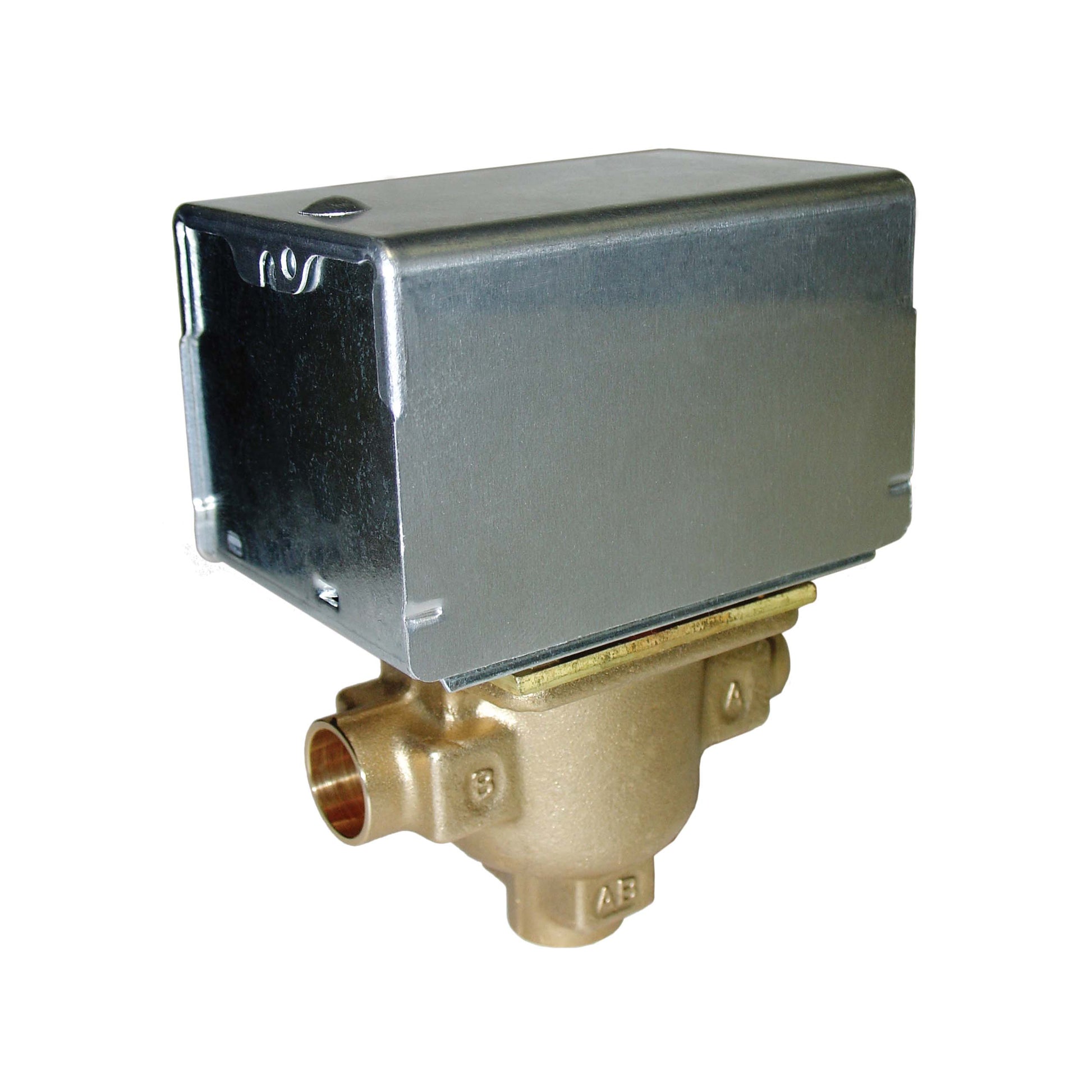

Resideo - Honeywell Home V8044E1003 Motorized Zone Valve

V8044E1003 Motorized Zone Valve from Honeywell Home by Resideo delivers reliable hydronic control for hot water systems. This 1/2-inch nominal valve features soldered end connections, a 2-position spring-return actuator (Port A close, diverting), and a normally closed position.

Durable construction meets demanding HVAC needs. The brass body, stainless steel stem, EPDM packing, and Buna-N ball are built to withstand hot water service, with a temperature range of 40–200°F and a pressure rating of 20 psi close-off (125 psi static). The valve opens in about 30 seconds and includes a manual opener and SPST end switch for seamless integration into control schemes.

• Type: 3-Way, normally closed, diverting
• Connections: 1/2" nominal, soldered x soldered
• Actuation: 2-position, spring return to Port A closed
• Flow: 4 Cv
• Materials: Brass body; stainless steel stem; EPDM packing; Buna-N ball
• Electrical: 7.7 VA @ 24 VAC, 0.32 A; 18" lead; SPST end switch
• Media: Hot water
• Standards: UL, CSA

Ideal for hydronic control applications, the V8044E1003 combines robust performance with easy installation and reliable operation in residential and light commercial systems.
