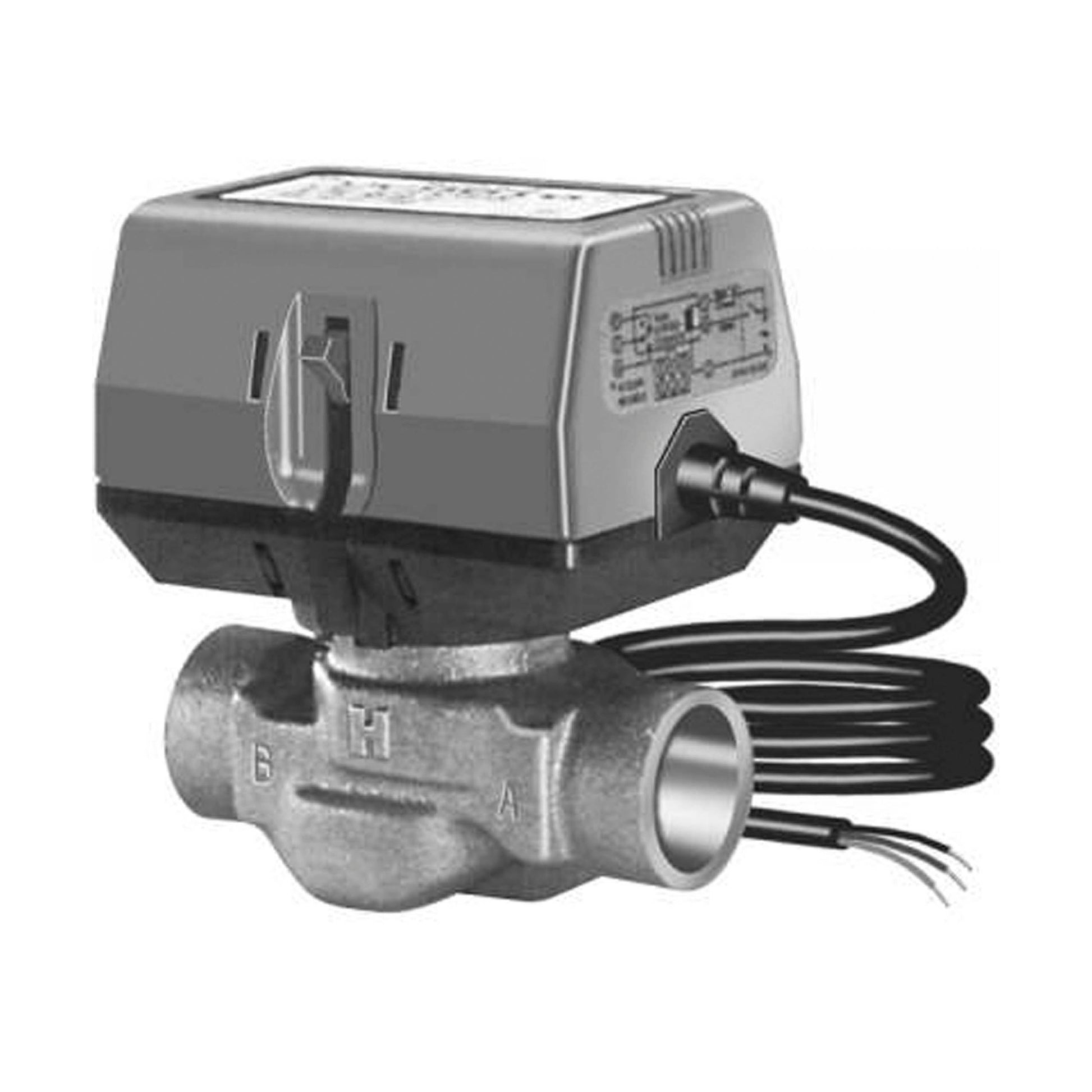

Resideo - Honeywell Home VC8711ZZ11 Cartridge Cage Valve Actuator

Cartridge Cage Valve Actuator for HVAC systems delivers precise 2-position control in a compact, SPST, direct-coupled design. The 24 Volt AC actuator (model VC8711ZZ11) provides reliable operation with a 60 Hz frequency and a 6-second timing that ensures consistent actuation. With an IP40-rated plastic enclosure, it is built to endure typical HVAC environments while maintaining compact dimensions: 3.7 inch width, 2.7 inch depth, and 2.8 inch height. The unit features direct coupling for straightforward installation and includes an auxiliary switch for additional signaling or control logic.

• SPST, Direct Coupled, 2-Position configuration
• Power rating: 6 VA (Driving) with 24 Volt AC, 60 Hz operation
• IP40 enclosure with durable plastic body
• Includes auxiliary switch for additional signaling
• Timing: 6 seconds for reliable actuation
• Application: HVAC System
• Supply cable: 39 inch plenum cable
• Compact dimensions: 3.7 W × 2.7 D × 2.8 H inches
• Operating temperature range: 32–150°F
• Approvals: UL, CSA, CE

Designed for compatibility with HVAC controllers, this actuator offers dependable performance under low voltage conditions and robust approvals.
