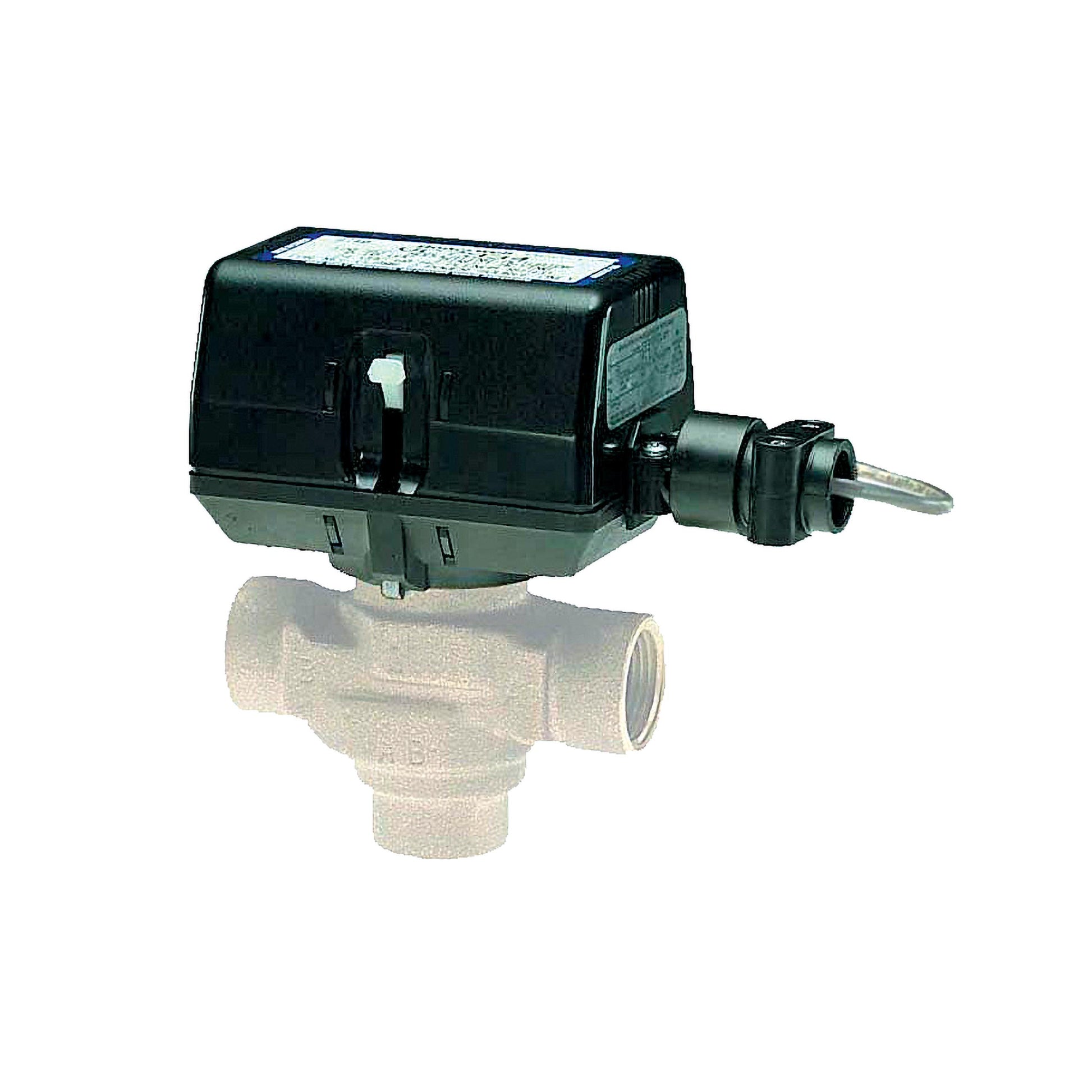

Resideo - Honeywell Home VC8714ZZ11 Valve Actuator

Valve Actuator for HVAC systems, the VC8714ZZ11 from Resideo - Honeywell Home delivers precise, reliable control in a compact package. This SPST, 2-Position, low-voltage actuator operates on 24 Volt AC supply with a 60 Hz frequency, delivering 6 VA of driving power for swift valve positioning. The IP40 enclosure shields the mechanism indoors, and the 3.7" W x 2.7" D x 2.8" H body simplifies installation in control panels and duct-mounted applications.

Designed for easy integration, it includes a flexible conduit adapter and an auxiliary switch for expanded control options. With UL, CSA, and CE approvals, it meets safety and performance standards; it tolerates up to 60 PSID differential pressure and completes position timing in about 6 seconds. Operating temperature ranges from 32 to 150°F, making it suitable for a wide range of HVAC environments.

• Valve Actuator Type: SPST, 2-Position
• Voltage & Frequency: 24 VAC, 60 Hz
• Drive Power: 6 VA
• Enclosure: IP40
• Dimensions: 3.7" W x 2.7" D x 2.8" H
• Accessories: Flexible conduit adapter, auxiliary switch
• Approvals: UL, CSA, CE
• Operating Temperature: 32–150°F
• Application: HVAC system control
