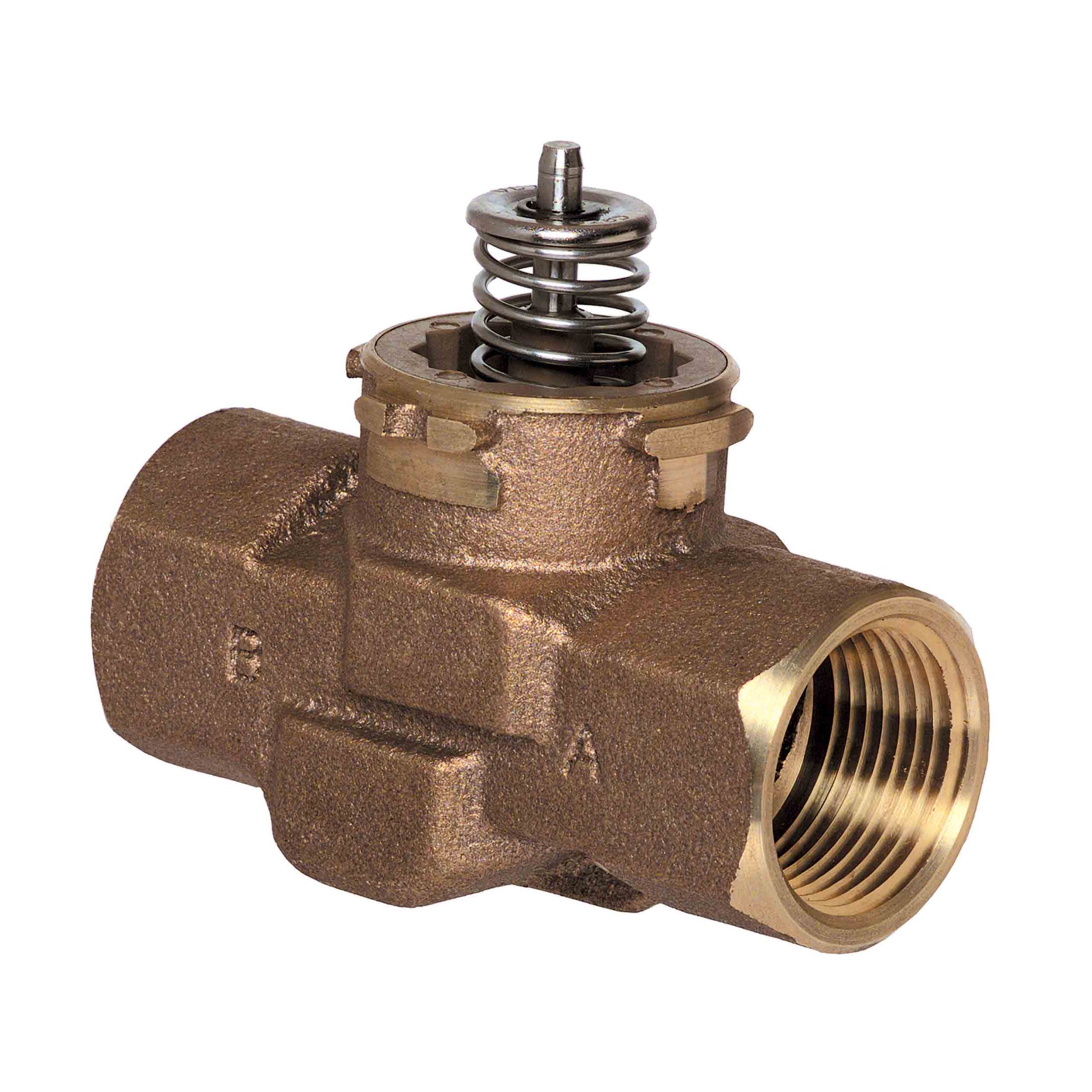

Resideo - Honeywell Home VCZAR1100 Cartridge Cage Valve

VCZAR1100 Cartridge Cage Valve from Resideo Honeywell Home delivers precise control for HVAC and hydronic systems. This 2-Way, straight-Through valve features a 1-inch nominal size with female threaded x female threaded ends, providing quick open, linear flow for reliable zone control.

Built with a bronze body and a rugged Ryton/Noryl cartridge, the VCZAR1100 combines durability with dependable sealing thanks to EPDM O‑ring seals and packing, along with a stainless steel stem. It handles hot and chilled water, including glycol mixtures, across a broad temperature range from 34 to 203°F (fluid) and 32 to 150°F ambient. The valve is rated for 60 psi close‑off and up to 300 psi static, and offers a flow capacity of 6.6 Cv with a 0.4-inch stem travel. Valve timing is a quick 6 seconds, optimized for fast zoning and energy efficiency. Use with VC Actuator, On‑Off Type, in HVAC systems, hydronic circuits, and zone control heating/cooling applications. CSA standard.

• Type: 2-Way, straight-through
• Nominal size & ends: 1 in; female threaded x female threaded
• Materials: Bronze body; Ryton/Noryl cartridge; EPDM O‑ring seals; stainless steel stem
• Flow & timing: Quick Open; 6-second valve timing; 6.6 Cv; 0.4 in stem travel
• Media & temps: Hot/Chilled Water, Glycol; fluid 34–203°F; ambient 32–150°F
• Pressure ratings: 60 psi close-off; 300 psi static
• Compatibility: Use with VC Actuator, On-Off Type; CSA standard
