Resideo - Honeywell Home VCZMS6100 Cartridge Cage Valve

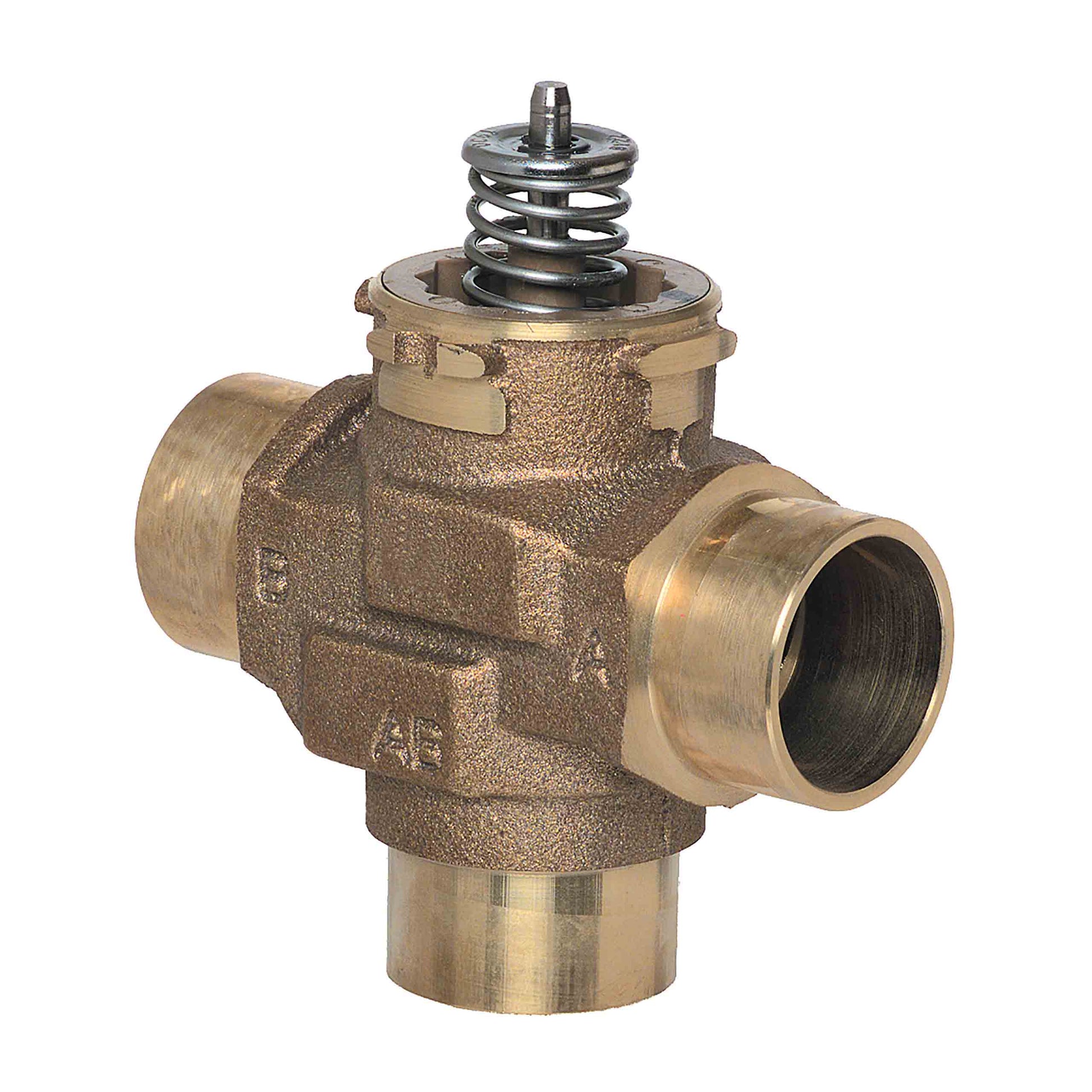

The Cartridge Cage Valve VCZMS6100 from Resideo - Honeywell Home delivers precise 3-Way control for zone-managed HVAC systems. This Cartridge Cage Valve combines a bronze body, soldered x soldered end connections, and a quick-open, linear-flow design for reliable operation in hot water, chilled water, or glycol circuits.

Ideal for hydronic and zone-control applications, it features a 6-second valve timing, 8.3 Cv flow capacity, and a stem travel of 0.4 inch. The valve is rated for 60 psi close-off and 300 psi static, with an ambient range of 32 to 150 F. Designed for HVAC and hydronic systems, this valve meets CSA standards and supports reliable, long-term operation.

Materials and compatibility: EPDM O-Ring seals on a Ryton/Noryl cartridge, stainless steel stem, and EPDM packing ensure durability. It is designed for use with VC actuators (2-position, On-Off) and offers quick-open, linear flow performance across hot water, chilled water, and glycol media. This construction guarantees dependable service in demanding environments.

• 3-Way Type A-AB-B valve
• Nominal size 1 Inch
• End connections: Soldered x Soldered
• Flow characteristic: Linear
• Flow capacity: 8.3 Cv
• Valve timing: 6 seconds
• Media handled: Hot water, chilled water, glycol
• Operating ambient: 32–150 F
• Materials: Bronze body; Ryton/Noryl cartridge; EPDM O-Ring; Stainless steel stem
• Actuator compatibility: VC actuators, 2-Position, On-Off
