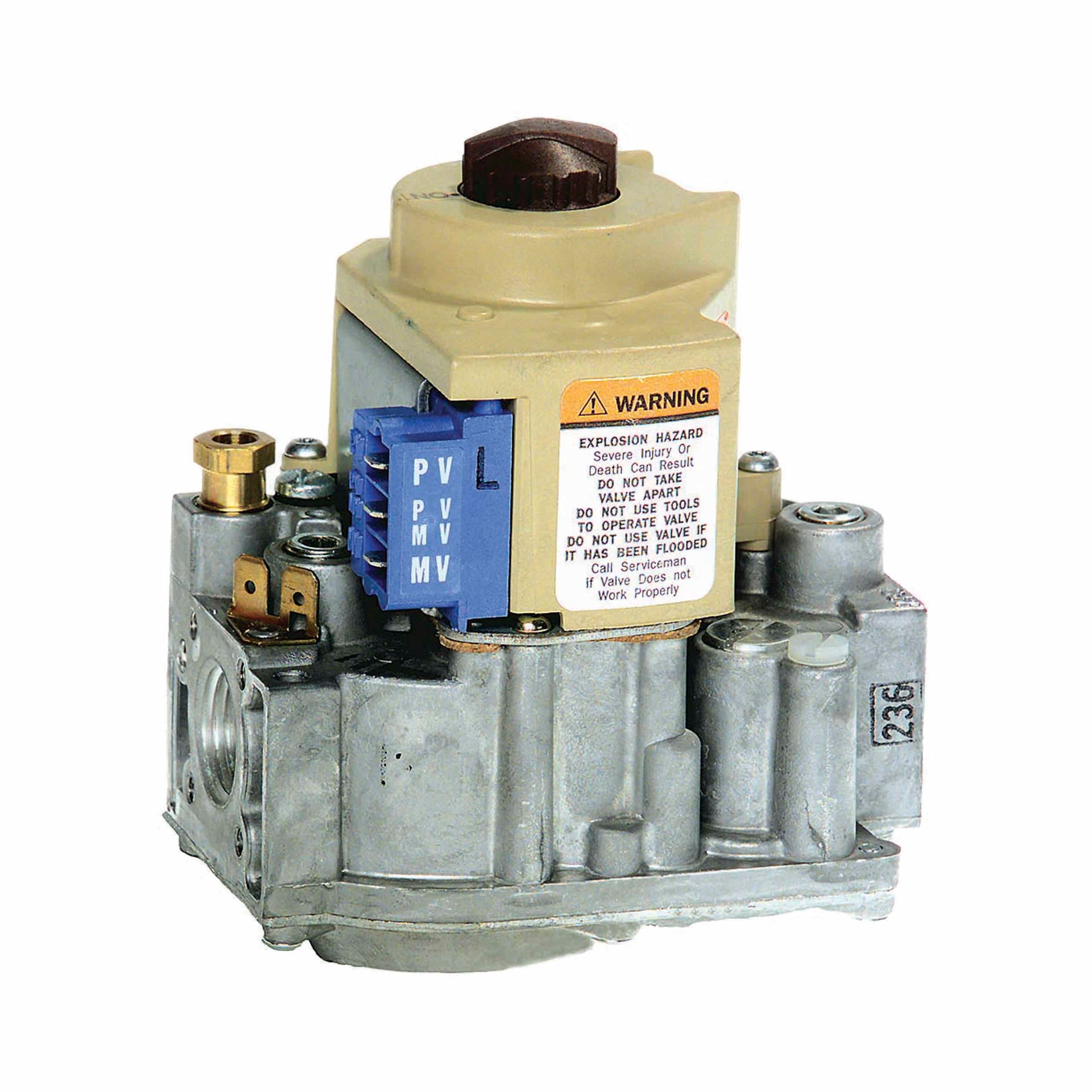

Resideo - Honeywell Home VR8204A2076 Gas Control Valve

Gas Control Valve VR8204A2076 from Resideo Honeywell Home delivers precise control for gas-fired appliances. This 1-Stage, Standard Opening, Intermittent Pilot Dual Automatic Valve (Straight-Through) uses a 1/2 inch nominal size with threaded end connections and an end-to-end distance of 4-1/8 inches. It operates on 24 Volt AC at 60 Hz and tolerates temperatures from 0 to 175°F, with a 1/2 PSI pressure rating for stable, reliable performance. The valve is compatible with natural gas and includes a Natural to Liquid Propane Conversion Kit for easy fuel flexibility. Supplied with practical accessories—3/4 inch x 1/2 inch reducer bushing and 3/4 inch straight flange—this unit is prepared for quick installation on typical gas-fired appliances. UL and CSA certified for safety, it supports a wide heat load with a flow capacity of 20,000 to 200,000 BTU/hr and a pressure tapping port at 1/8 inch with a plug. A built-in pressure regulator set point at 3.5 inch WC ensures steady operation across applications.

• 1/2" nominal size with threaded end connections
• 1-stage, standard opening intermittent pilot dual automatic valve
• 24V AC, 60 Hz operation; 0–175°F temperature range; 1/2 PSI pressure rating
• Natural gas compatible; propane conversion kit included
• Flow capacity: 20,000–200,000 BTU/hr; pressure tapping 1/8" with plug
• UL and CSA certified
• Includes 3/4" x 1/2" reducer bushing and 3/4" straight flange
• End-to-end distance: 4-1/8"; overall dimensions: 2-11/16" depth x 4-5/8" height
• Pressure regulator set point: 3.5" WC
