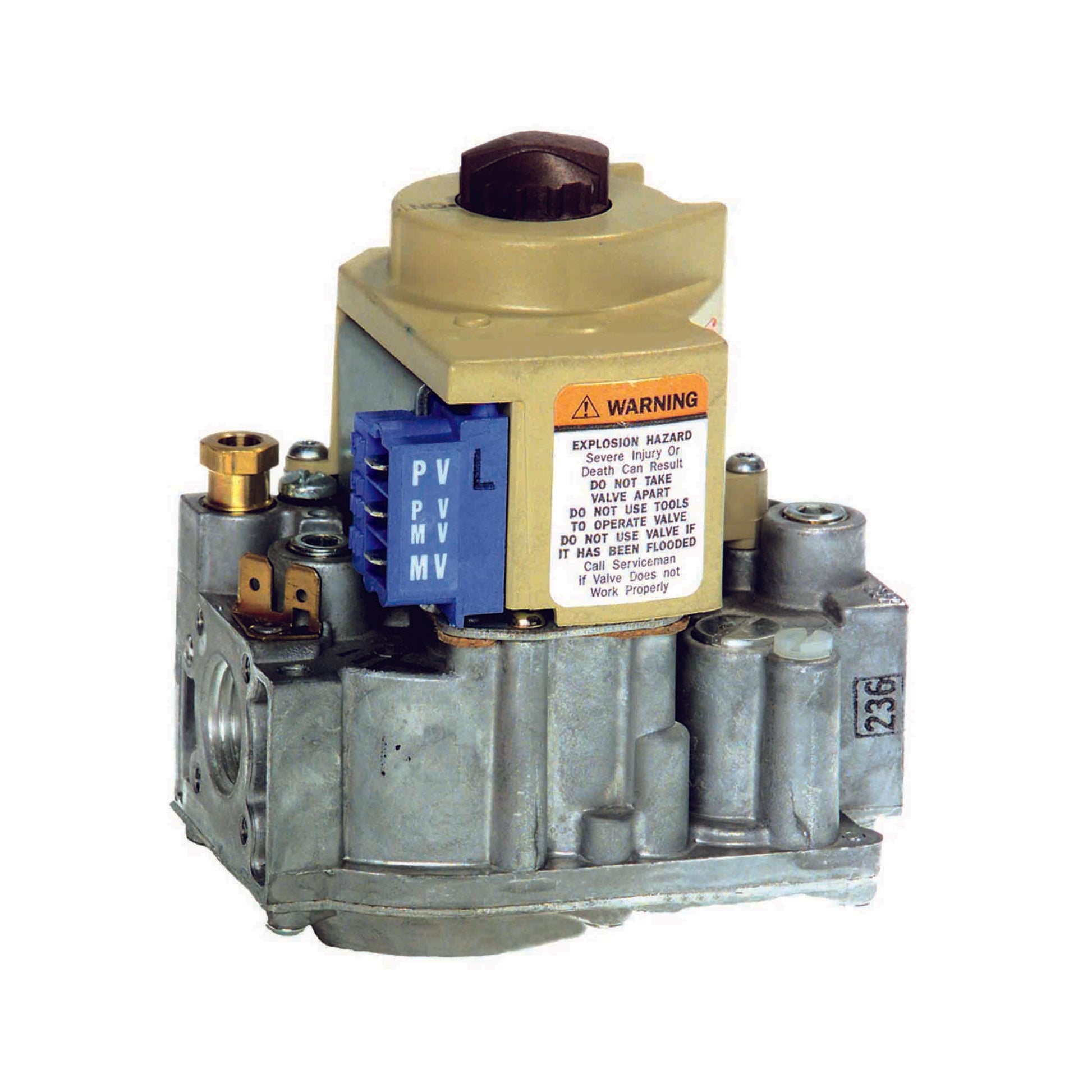

Resideo - Honeywell Home VR8204H1006 Solenoid Gas Valve

The Solenoid Gas Valve VR8204H1006 from Resideo - Honeywell Home provides reliable, intermittent pilot operation for residential gas-fired appliances. This 1-stage, straight-through valve uses a diaphragm design with dual automatic operation for consistent control and safety.

Designed for natural gas, it handles 0 to 175 degrees Fahrenheit and operates from a 24 Volt AC supply at 60 Hz. The unit features 1/2 inch compression port connections on both ends and flexible mounting (0 to 90 degrees from the upright gas control knob), making installation easy in compact spaces.

• Safety Shut-Off and a manual valve for immediate isolation.
• Dual automatic operators with pilot adjustment for precise gas flow control.
• Integrated pressure regulator and slow-opening action to minimize surges.
• Residential gas-fired appliance design meets UL, CSA, and AGA standards.
• Compact footprint with overall dimensions of 4-1/8 in W x 2-11/16 in D x 4-5/8 in H.

Key specs: 1/2 in compression x 1/2 in compression ports; 3.5 in WC regulator setting; 1/8 in threaded pressure tapping with plug; electrical connection combines screw and 1/4 in male quick connect.
