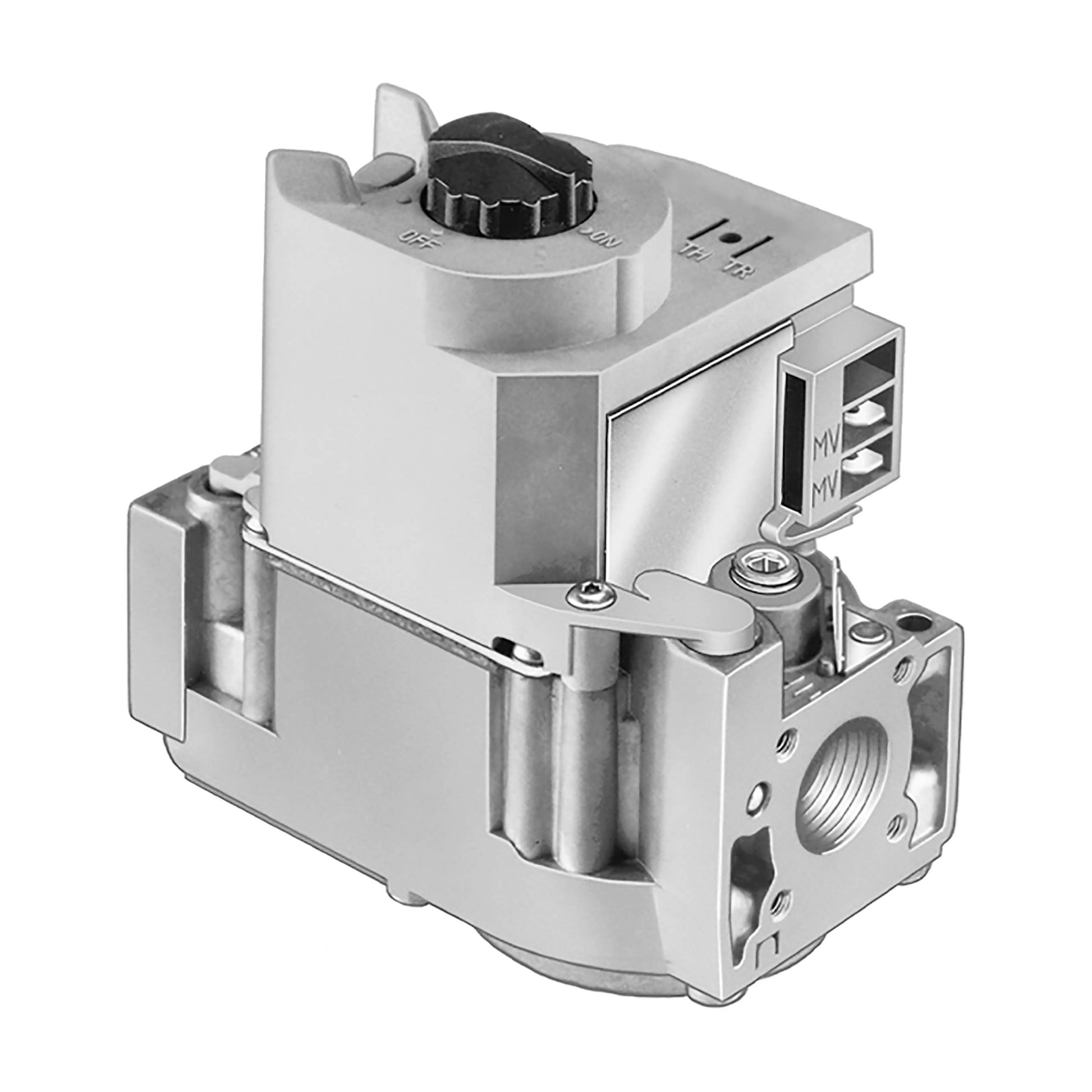

Resideo - Honeywell Home VR8205H1003 Solenoid Gas Valve

Solenoid Gas Valve for residential gas-fired appliances meets exacting standards with the VR8205H1003 from Resideo Honeywell Home. This Solenoid Gas Valve is direct-acting, 1-stage and diaphragm-type, delivering precise gas control and reliable operation for natural gas systems.

Designed for versatility and safe integration, it features 1/2" x 1/2" port connections, 24V AC at 60 Hz power, and a temperature range of 0 to 175°F. The device maintains a 1/2 PSI maximum pressure and offers flexible mounting from 0 to 90 degrees in any direction from the upright gas control knob, including vertical orientations.

Key components included ensure easy installation and dependable performance in residential settings, including a manual valve, two automatic operators, a pressure regulator, and a slow-opening feature for gentle startup.

• Port connections: 1/2" x 1/2"
• Power supply: 24V AC, 60 Hz
• Media handled: Natural gas
• Construction: Direct-acting, 1-stage, diaphragm, dual automatic
• Standards: UL, CSA, AGA approved
• Inclusions: Manual valve, (2) automatic operators, pressure regulator, slow opening
• Mounting: 0–90° from upright position
• Dimensions: 4-1/8" W x 2-11/16" D x 4-15/16" H
• Pressure: 1/2 PSI; regulator setting 3.5" WC
• Electrical: Combination screw and 1/4" male quick connect
