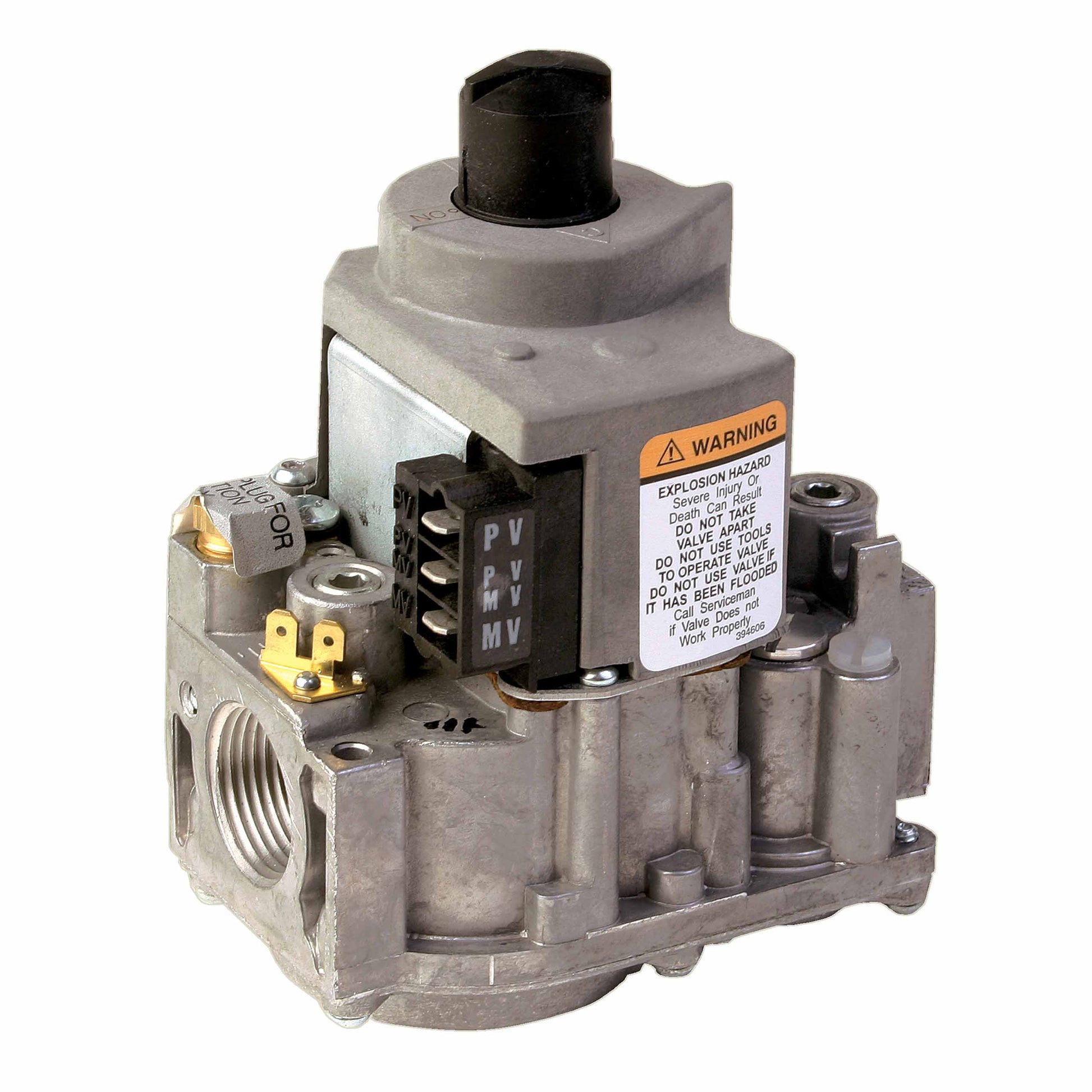

Resideo - Honeywell Home VR8245M2530 Gas Valve

Gas Valve for residential gas-fired appliances: the VR8245M2530 from Resideo Honeywell Home delivers universal electronic/direct/intermittent pilot operation in a 1-stage, straight-through design. This 1/2 inch compression-to-compression valve operates on 24 Volt AC (50/60 Hz) across a wide temperature range from -40 to 175°F and carries a 1/2 psi pressure rating.

Designed for flexible installation, the valve mount supports 0 to 90 degrees in any direction from the upright gas control knob, including vertical positioning. It handles natural gas and is compatible with propane via included conversion components, making it suitable for residential gas-fired appliances.

• Port connections: 1/2" compression x 1/2" compression
• Universal Electronic/Direct/Intermittent Pilot Operated, 1-Stage, Straight-Through design
• Supply and safety: 24V AC, -40 to 175°F, 1/2 psi pressure rating
• Mounting flexibility: 0 to 90 degrees from upright position (including vertical)
• Inclusions: 1/2" x 3/8" reducer bushing; natural to liquid propane conversion kit; manual valve; automatic operator; pressure regulator; pilot adjustment; pilot plug and ignition adapter; low voltage
• Electrical/standards: UL, CSA; 1/4" quick-connect male terminal
• Dimensions: 4-1/16"W x 2-11/16"D x 5-3/8"H
• Regulation and flow: 3.5" WC regulator setting; 20–200 CFH
