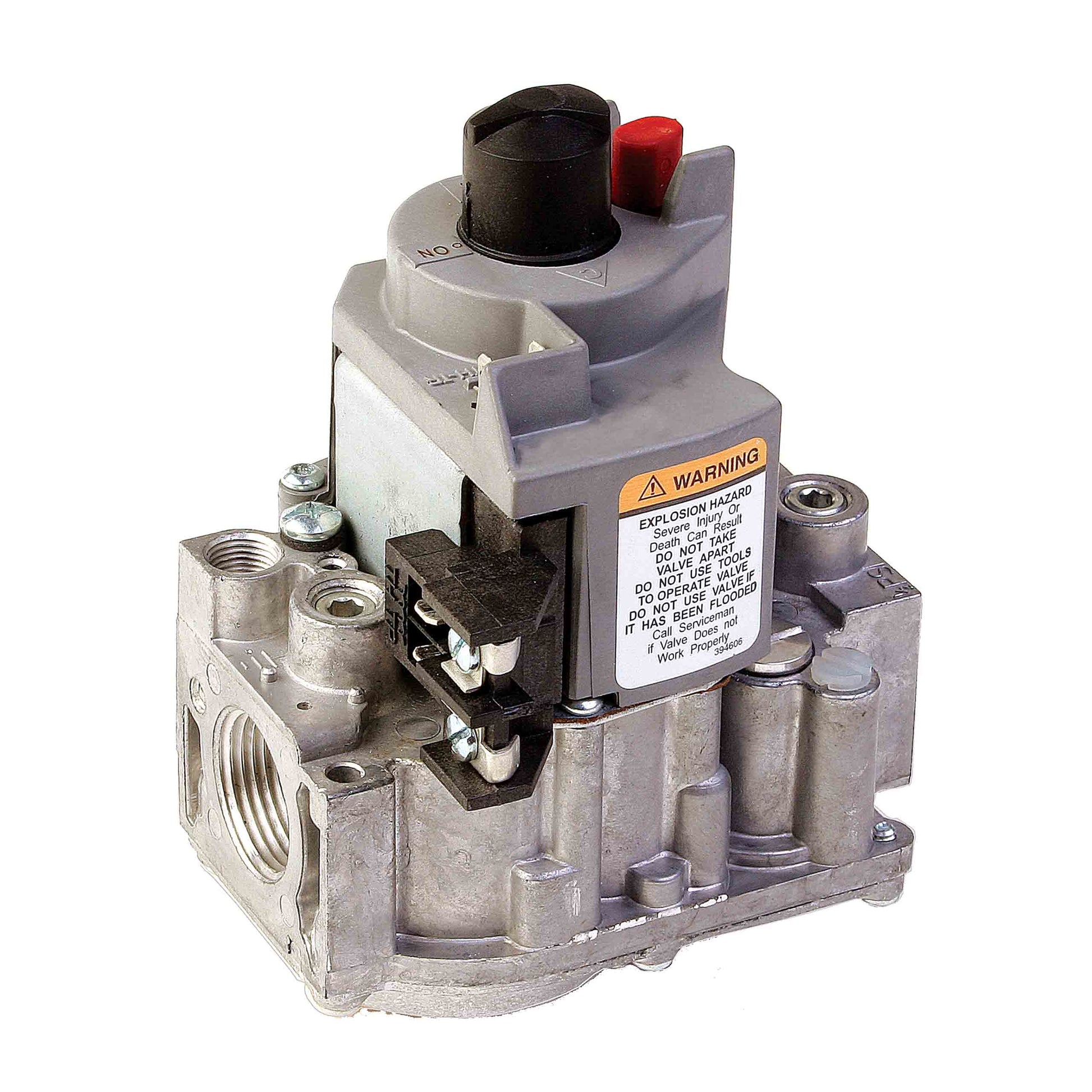

Resideo - Honeywell Home VR8300A4516 Combination Gas Control Valve

The VR8300A4516 Combination Gas Control Valve from Resideo - Honeywell Home is a dependable solution for natural gas appliances. This Type 1-Stage, standing-pilot, straight-through valve offers a flange end connection and a 3/4 inch nominal size, delivering consistent fuel control for universal gas-fired applications.

With a 24V AC input at 60 Hz, a temperature range of 0 to 175°F, and a 1/2 psi pressure rating, this valve supports reliable operation in demanding environments. It handles 30,000 to 300,000 BTU/hour, features a 4-1/16 inch end-to-end distance, and provides a 1/8 inch threaded pressure tapping with plug for precise monitoring.

Includes and compatibility: Natural to Liquid Propane Conversion Kit, (2) reducer bushings (3/4" x 1/2"), Q340 thermocouple, and ECO adaptor. UL and CSA listed, suitable for universal gas-fired standing-pilot appliances.

• Type 1-Stage, standing-pilot, straight-through design
• End connections: flange x threaded; 3/4 inch nominal size
• Supply connection: 1/4 inch quick-connect male terminal
• Power: 24V AC at 60 Hz; temperature 0–175°F; pressure 1/2 psi
• Flow capacity: 30,000–300,000 BTU/hr; pressure tapping 1/8" threaded
• Includes Natural to Liquid Propane Conversion Kit, reducer bushings, Q340 thermocouple, ECO adaptor
• UL listed and CSA approved
