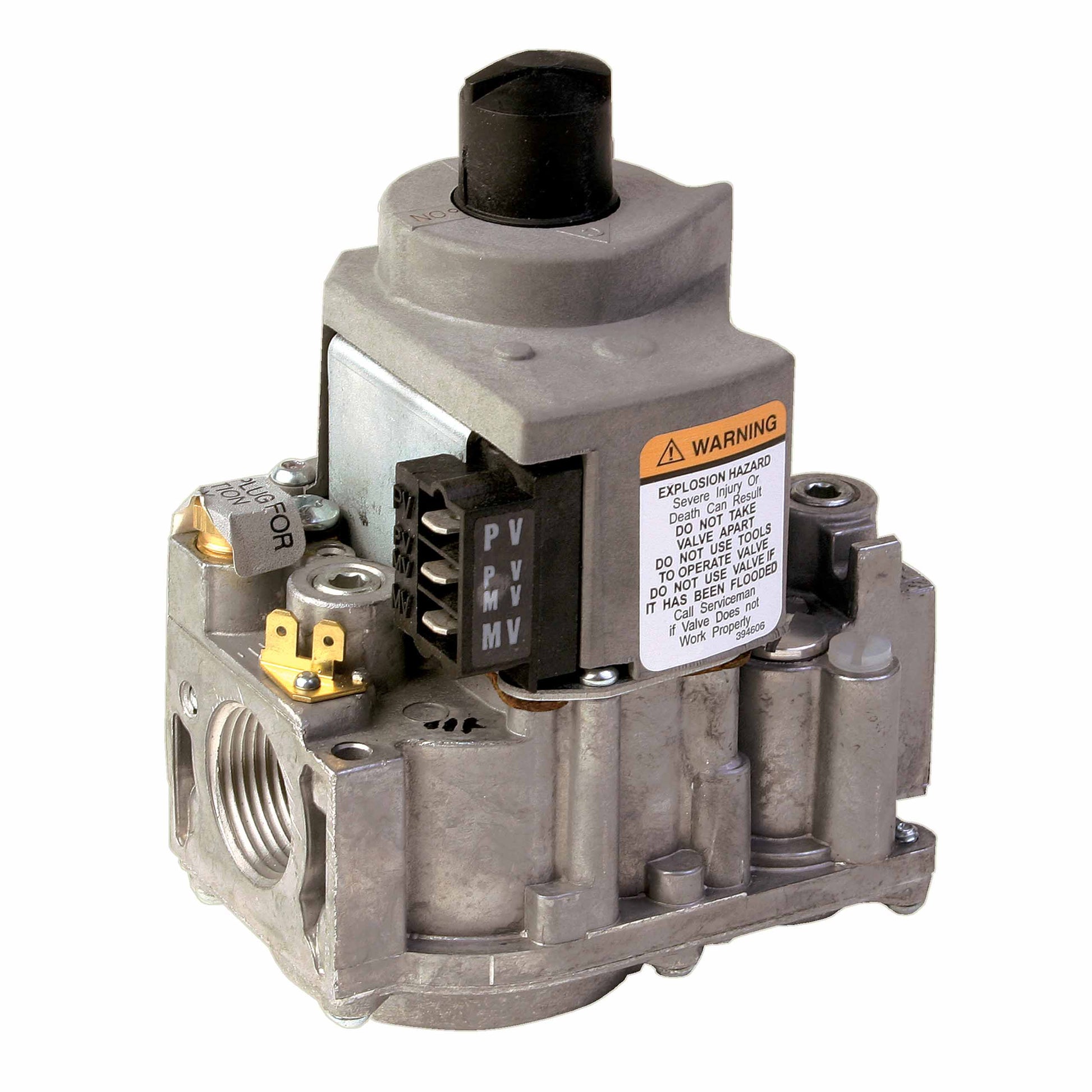

Resideo - Honeywell Home VR8304H4503 Combination Gas Control Valve

Combination Gas Control Valve from Resideo (Honeywell Home VR8304H4503) delivers precise regulation for gas-fired appliances. This Type 1-Stage, Intermittent Pilot, Low Voltage valve operates at 24 Volt AC and features a straight-through, slow-opening design for safer ignition.

Designed for a 3/4 inch nominal size with female threaded end connections, end-to-end distance 4-1/16 inch, and a 1/4 inch quick-connect supply, it pairs a reliable solenoid-diaphragm actuator with safety shut-off and manual valve features.

Inclusions include a Pressure Regulator, Pilot Adjustment, Inlet Screen, Safety Shut-Off, and a Natural to Liquid Propane Conversion Kit to broaden fuel compatibility. This valve is intended for gas-fired intermittent pilot appliances and is UL/CSA approved for dependable performance.

Key specifications: Input 24V AC at 60 Hz; Temperature 0 to 175°F; Pressure 1/2 psi; Flow capacity 30,000 to 415,000 BTU/hour; Pilot Gas Outlet 1/4 inch compression; Pressure Tapping 1/8 inch threaded with plug.

• Type & operation: 1-Stage, Intermittent Pilot, Slow Opening
• Electrical: 24V AC, 60 Hz
• Connections: 3/4" nominal size; Female Threaded x Female Threaded
• Inclusions: (2) Automatic Operator, (1) Natural to Liquid Propane Conversion Kit, Inlet Screen, Safety Shut-Off, Manual Valve, Pressure Regulator, Pilot Adjustment
• Certifications: UL and CSA approved
