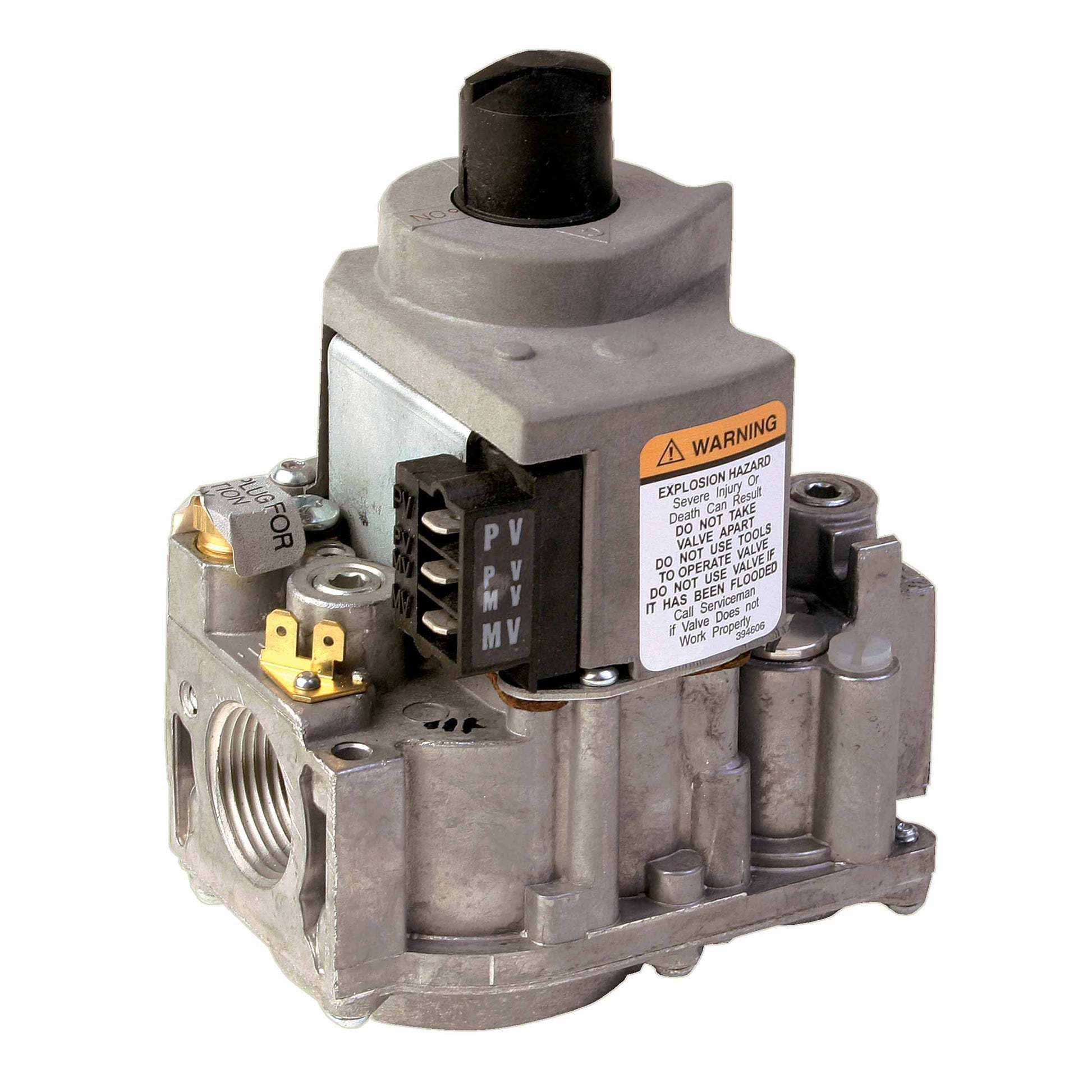

Resideo - Honeywell Home VR8304Q4511 Combination Gas Control Valve

The VR8304Q4511 Combination Gas Control Valve from Resideo/Honeywell Home delivers precise gas control for residential appliances. This 2-stage, intermittent-pilot gas valve operates on 24V AC and features a low-voltage solenoid with a standard 3/4 inch end connection to support up to 300,000 BTU/hour.

Designed for reliability in residential combustion control, it includes a natural-to-liquid propane conversion kit, safety shut-off, manual valve, two automatic operators, a pressure regulator, and pilot adjustment. The valve provides simple wiring via a 1/4 inch quick-connect male terminal and accepts a 1/8 inch pressure tapping, with regulator set points of 1.7 inches of water column (low) and 3.5 inches (high). Operating temperature ranges from -40 to 175 degrees Fahrenheit and it handles up to 1/2 psi supply pressure, making it ideal for gas-fired appliances in homes.

• Type: 2-Stage, Intermittent Pilot gas control valve
• End connections: Threaded x Threaded; 3/4 inch nominal size
• Electrical: 24 Volt AC, 60 Hz; 1/4 inch quick-connect terminal
• Applications: Gas-fired residential combustion control
• Certifications: UL and CSA listed
• Mounting: 0–90 degree vertical installation
• Dimensions: 4-11/16 inch depth x 5-3/8 inch height
• Capacity & regulation: 300,000 BTU/hour; pressure regulator 1.7/3.5 in WC
