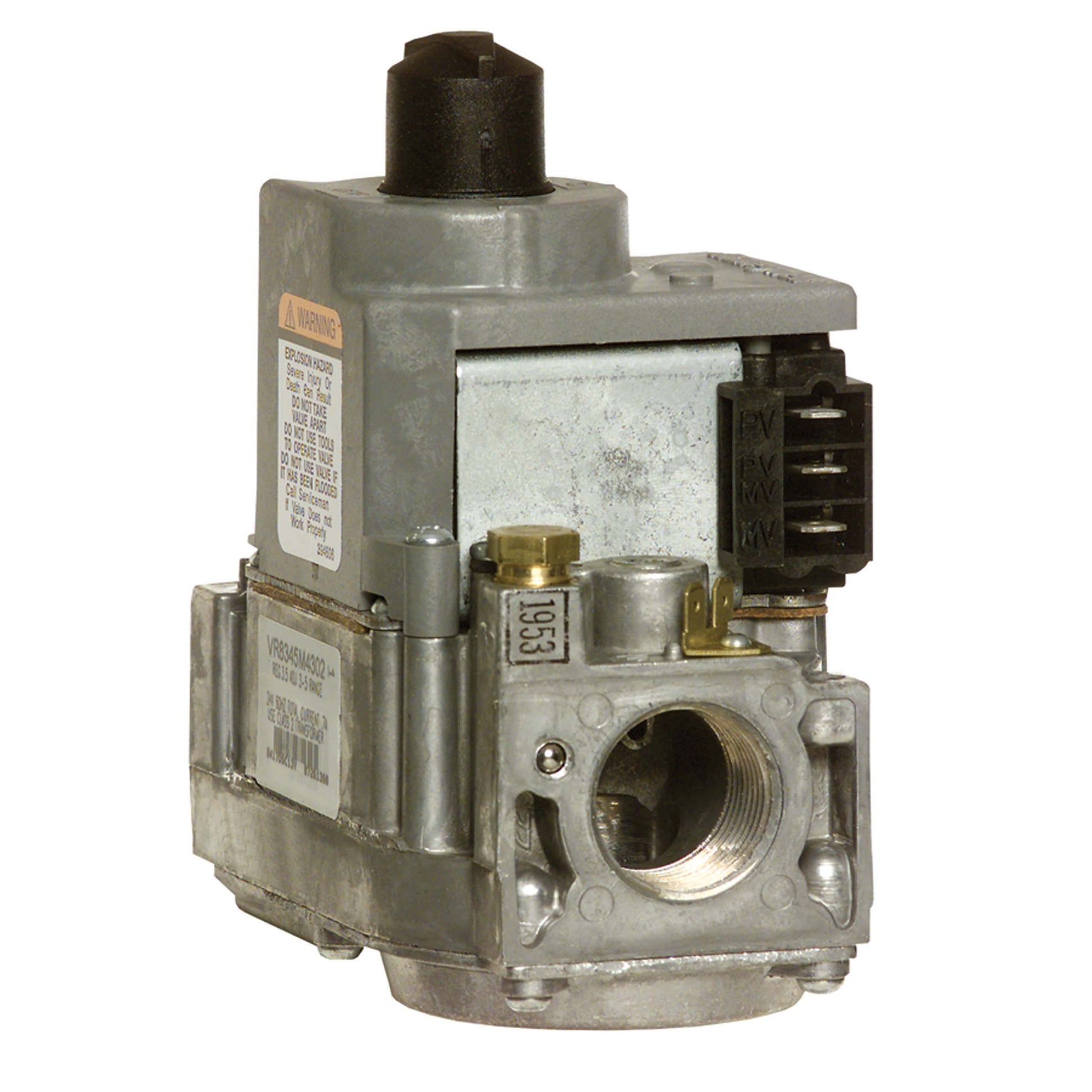

Resideo - Honeywell Home VR8345H4555 Gas Control Valve

VR8345H4555 Gas Control Valve from Resideo - Honeywell Home is a trusted control component for gas-fired appliances. This 1-Stage valve offers direct ignition and intermittent pilot operation with a straight-through, slow-opening design for precise flame control and safer startup.

Key specifications ensure compatibility and reliable performance: Nominal Size 3/4 Inch with Female Threaded x Female Threaded ends, End-to-End Distance 4-1/16 Inch, Supply Connection 1/4 Inch Quick Connect Male Terminal; Input Supply 24 Volt AC @ 60 Hz; Temperature Rating 0 to 175 Deg F; Pressure Rating 1/2 PSI; Flow Capacity 30,000 BTU/Hour (Minimum); Pressure Tapping Size 1/8 Inch Threaded with Plug; Pressure Regulator Set Point 3.5 Inch WC.

• Nominal Size: 3/4 Inch; End Connection: Female Threaded x Female Threaded; End-to-End Distance: 4-1/16 Inch
• Supply Connection: 1/4 Inch Quick Connect Male Terminal
• Input Supply: 24V AC, 60 Hz
• Temperature Range: 0–175°F; Pressure Rating: 1/2 PSI
• Flow Capacity: 30,000 BTU/Hour (Minimum); Pressure Tapping: 1/8 Inch Threaded with Plug
• Pressure Regulator Set Point: 3.5 Inch WC

Inclusions and compatibility: Natural to Liquid Propane Conversion Kit, (2) 3/4 Inch x 1/2 Inch Reducer Bushing. Application: Gas Fired Appliance. Standards: UL, CSA.
