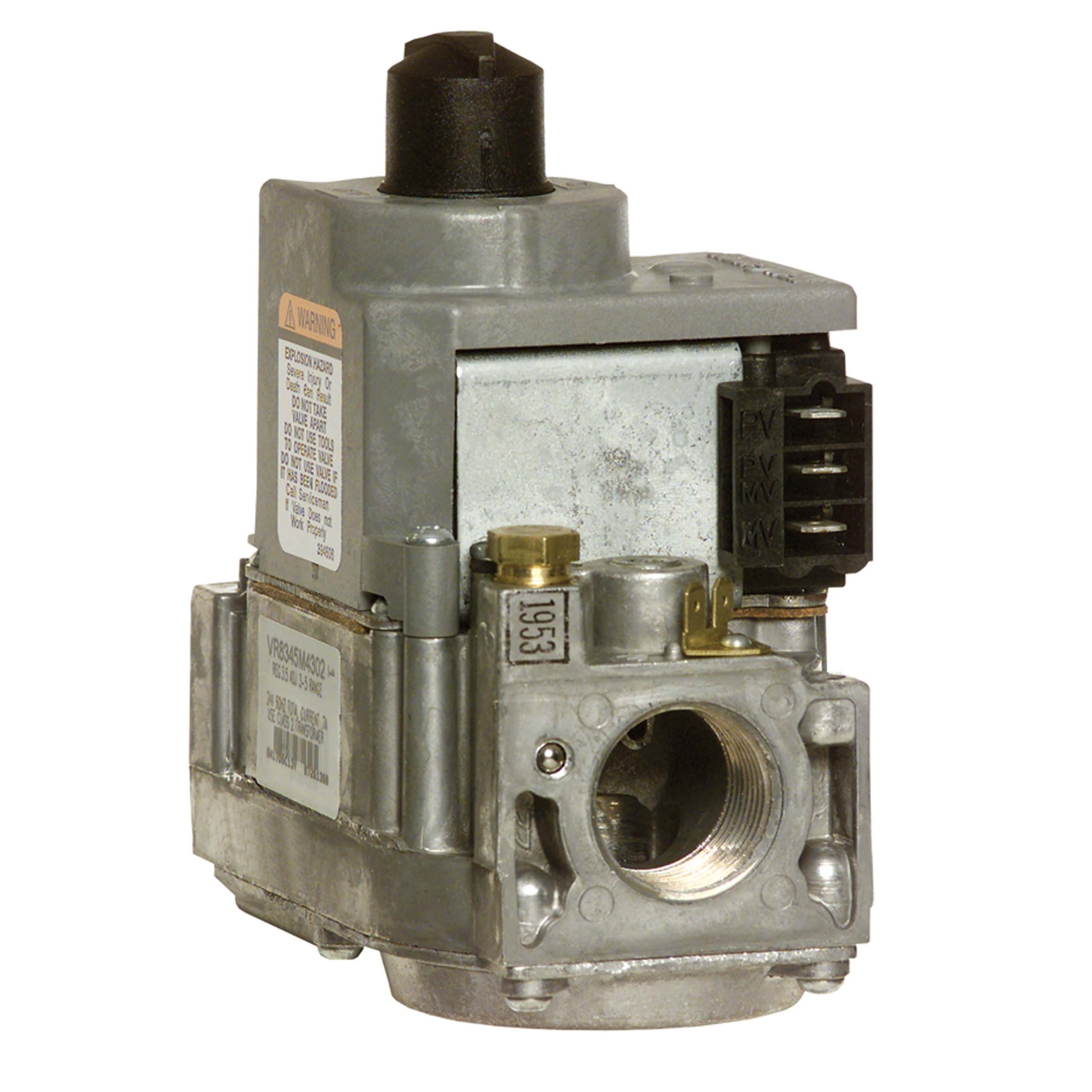

Resideo - Honeywell Home VR8345K4809 Gas Valve

Gas Valve, the Resideo Honeywell Home VR8345K4809, is a universal electronic/direct/intermittent pilot operated valve designed for residential gas-fired appliances. This 1-stage, straight-through valve runs on 24V AC at 50/60 Hz and uses 3/4 inch compression port connections for dependable installation. Built to withstand temperatures from -40 to 175°F and pressures up to 1/2 psi, it offers flexible mounting in any direction from the upright gas control knob, including vertical positions.

• Type/Operation: Universal Electronic/Direct/Intermittent Pilot Operated, 1-Stage, Slow Opening
• Port Connections: 3/4 Inch Compression x 3/4 Inch Compression
• Electrical: 24V AC (50/60 Hz); Low Voltage; 1/4 Inch Quick Connect Male Terminal
• Mounting: 0 to 90 Degree in any Direction from Upright Position
• Media & Pressure: Gas; 1/2 psi; Flow 30–415 CFH; Temperature -40 to 175°F
• Inclusions/Features: Two 3/4 inch x 1/2 inch reducer bushings; Natural to LP conversion kit; Manual valve; Two automatic operators; Pressure regulator; Pilot adjustment; Pilot plug and ignition adapter
• Standards: UL, CSA Listed
• Dimensions: 4-1/16" W x 2-11/16" D x 5-3/8" H
• Tapping/Ports: Pressure Tapping 1/8" threaded with plug
