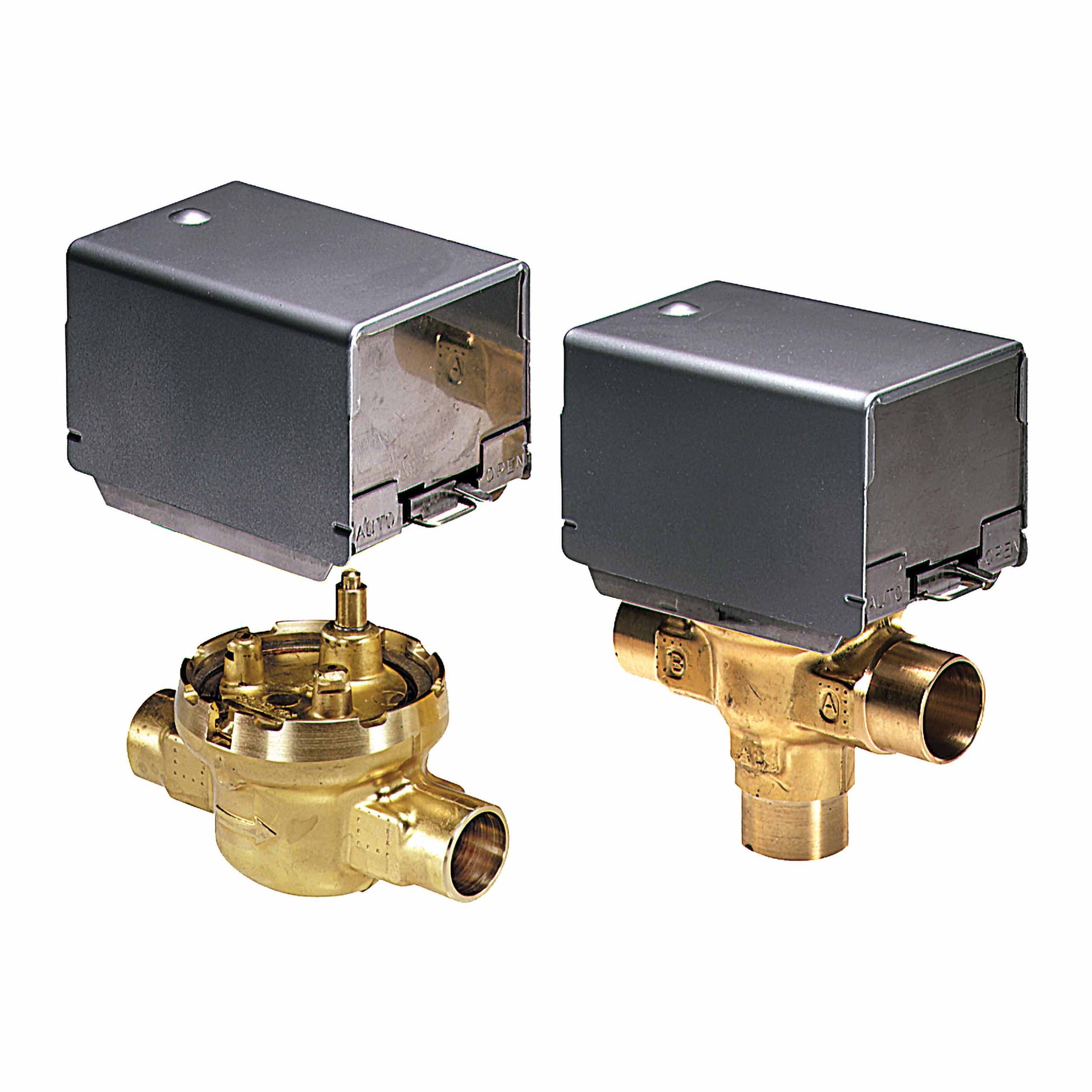

Resideo - Honeywell Home VU54S2008 Fan Coil Zone Valve

Fan Coil Zone Valve from Resideo - Honeywell Home VU54S2008 delivers precise control for commercial HCAC systems. This Type 3-Way valve with a 1/2 inch nominal size uses diverting actuation to efficiently modulate hot or chilled water and glycol through fan coil units.

This valve features a durable brass body with brass seat/stem, EPDM packing, and Buna-N ball, ready to stand up to demanding installations. It handles fluid temperatures up to 200°F and static pressures up to 300 psi, with close-off rated at 20 psi. Ambient temperature range is 34–125°F, making it suitable for a wide range of environments. End connections are soldered x soldered for a secure, leak-free installation.

Ideal for commercial HCAC equipment, fan coil units, terminal reheat coils and convectors, the VU54S2008 mates with VU444 or VU844 actuators for seamless control. CSA certified for Canada and the US, it combines reliable performance with compact geometry (3-1/2 inch width) and a 4 Cv flow capacity, delivering precise modulation with quick opening flow.

• Type: 3-Way diverting valve
• Nominal size: 1/2" • End connections: soldered x soldered
• Material: Brass body; Brass seat/stem; EPDM packing; Buna-N plug/ball
• Media: Hot/Chilled Water, Glycol
• Ratings: Fluid 200°F; Ambient 34–125°F; Close-off 20 psi; Static 300 psi
• Flow: 4 Cv
• Applications: Commercial HCAC, Fan Coil Unit, Terminal Reheat
• Certifications: CSA (Canada/US)
• Compatibility: Uses VU444 or VU844 actuator
