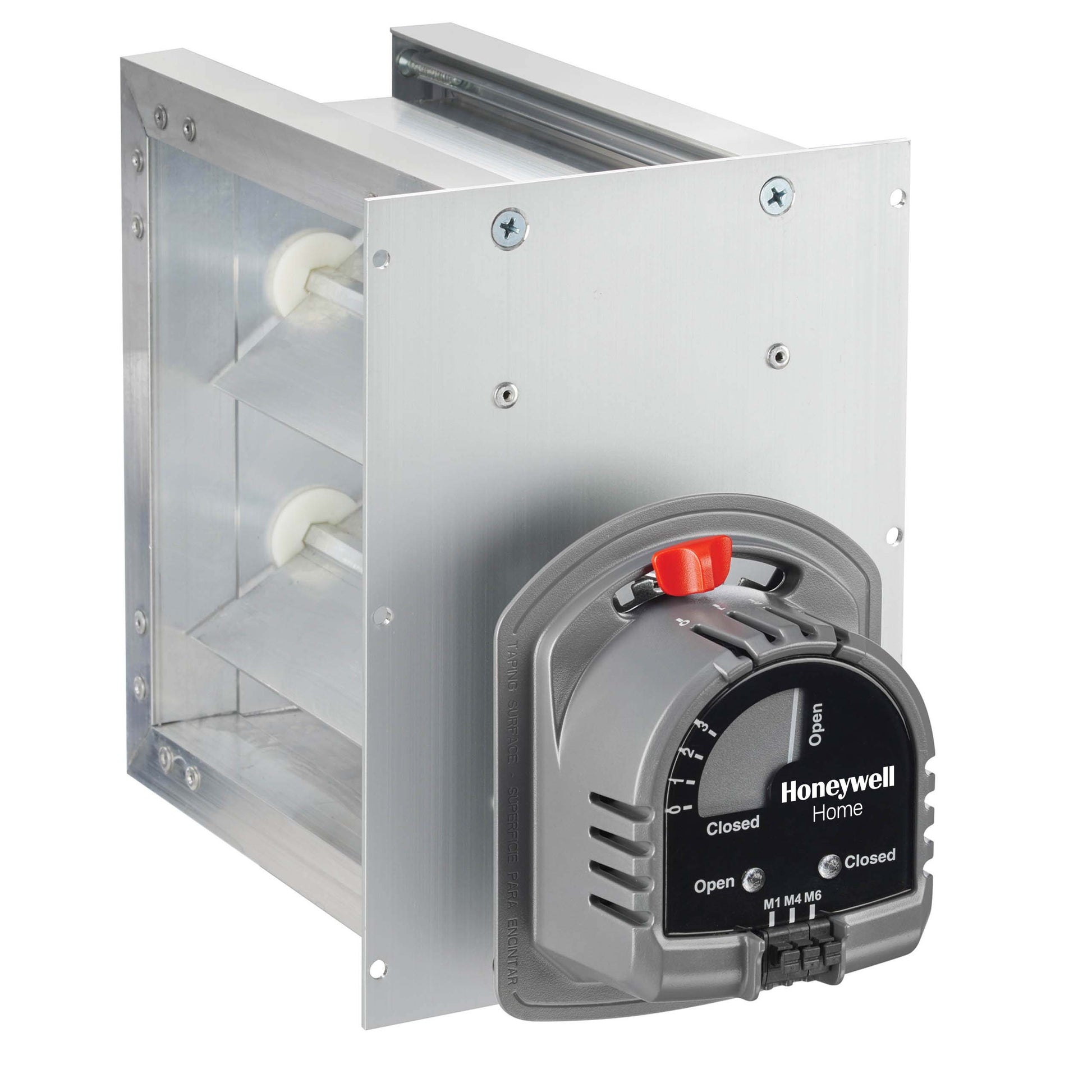

Resideo - Honeywell Home ZD10X16TZ Zone Control Damper

Zone Control Damper from Resideo – Honeywell Home ZD10X16TZ delivers precise airflow control for multi-zone HVAC systems. This rectangular, parallel blade damper fits a 10 x 16 inch duct and features an extruded aluminum blade for durable, long-lasting performance.

Engineered for dependable operation, the ZD10X16TZ uses a 24 V AC motor with a 71 in-oz torque, offering a 30-second power-open timing and a 10-second spring-return. It provides fail-safe, normally open operation and is designed for easy bottom mounting with clear LED indication to monitor status.

• Rectangular, parallel blade damper for even airflow control
• Duct size 10 x 16 inches
• Extruded aluminum blade for durability
• Spring return with fail-safe, normally open operation
• 24 V AC motor, 71 in-oz torque; 90-degree rotation
• Low pressure drop (<0.0329 in wc at 800 fpm); max static 1 in wc
• Bottom motor mounting; LED indication (M1-Power, M6 Common, M4 optional)
• Temperature rating 40–140 F; motor timing 30s power open / 10s spring return
