Resideo - Honeywell Home ZD14X14TZ Zone Control Damper

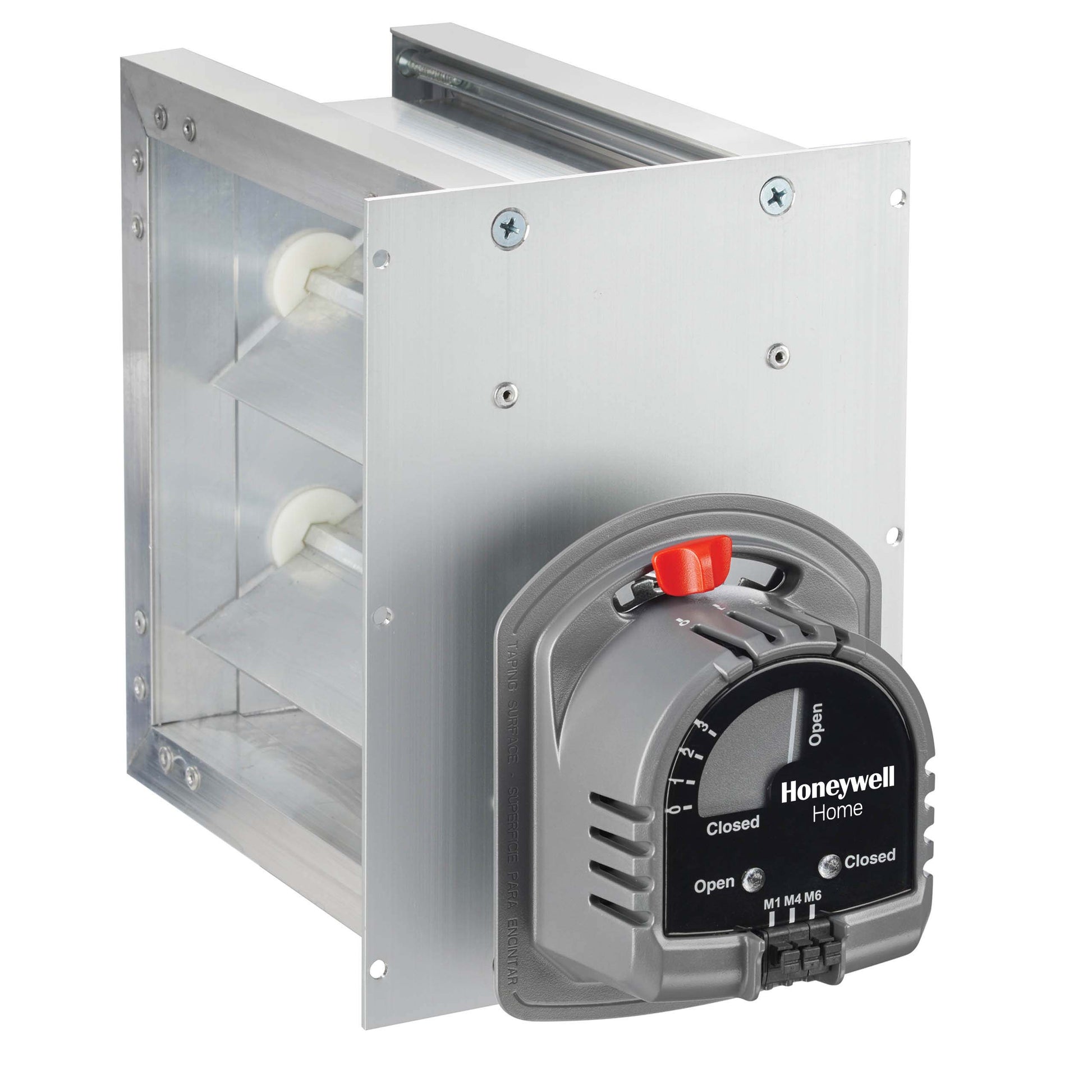

The Zone Control Damper ZD14X14TZ delivers precise zoning control for 14x14 ductwork. This Zone Control Damper employs a square, parallel blade design with extruded aluminum blades for durable, quiet airflow management.

Mechanical visual position indicator lets you see damper status at a glance. With spring return and fail-safe, normally open operation, it provides reliable shutoff when power is interrupted.

A 24V AC motor (60 Hz, 8 Volt Amp) drives a 90-degree rotation to deliver solid torque of 71 in-oz and fast actuation, with 30-second power-open timing and a 10-second spring-return cycle.

Designed for parallel blade damper applications in residential HVAC, this unit handles up to 1 Inch WC static pressure and offers a very low pressure drop (<0.033 in WC at 800 FPM) with a broad 40–140°F operating range.

• Type: Square, Parallel Blade
• Duct Size: 14 x 14 inches
• Blade Material: Extruded Aluminum
• Inclusions/Features: Spring Return, Mechanical Visual Position Indicator, Fail Safe, Normally Open Operation
• Motor: 24V AC at 60 Hz, 8 Volt Amp
• Torque/Rotation: 71 in-oz torque; 90-degree rotation
• Operating Conditions: Temperature 40–140°F; Pressure Drop < 0.033 in WC at 800 FPM; Max Static Pressure 1 in WC
• Mounting/Wiring: Side motor mounting; Wires to M1-Power, M6 Common, M4 LED Indication (Optional)
• Application: Parallel Blade Damper for HVAC zoning
