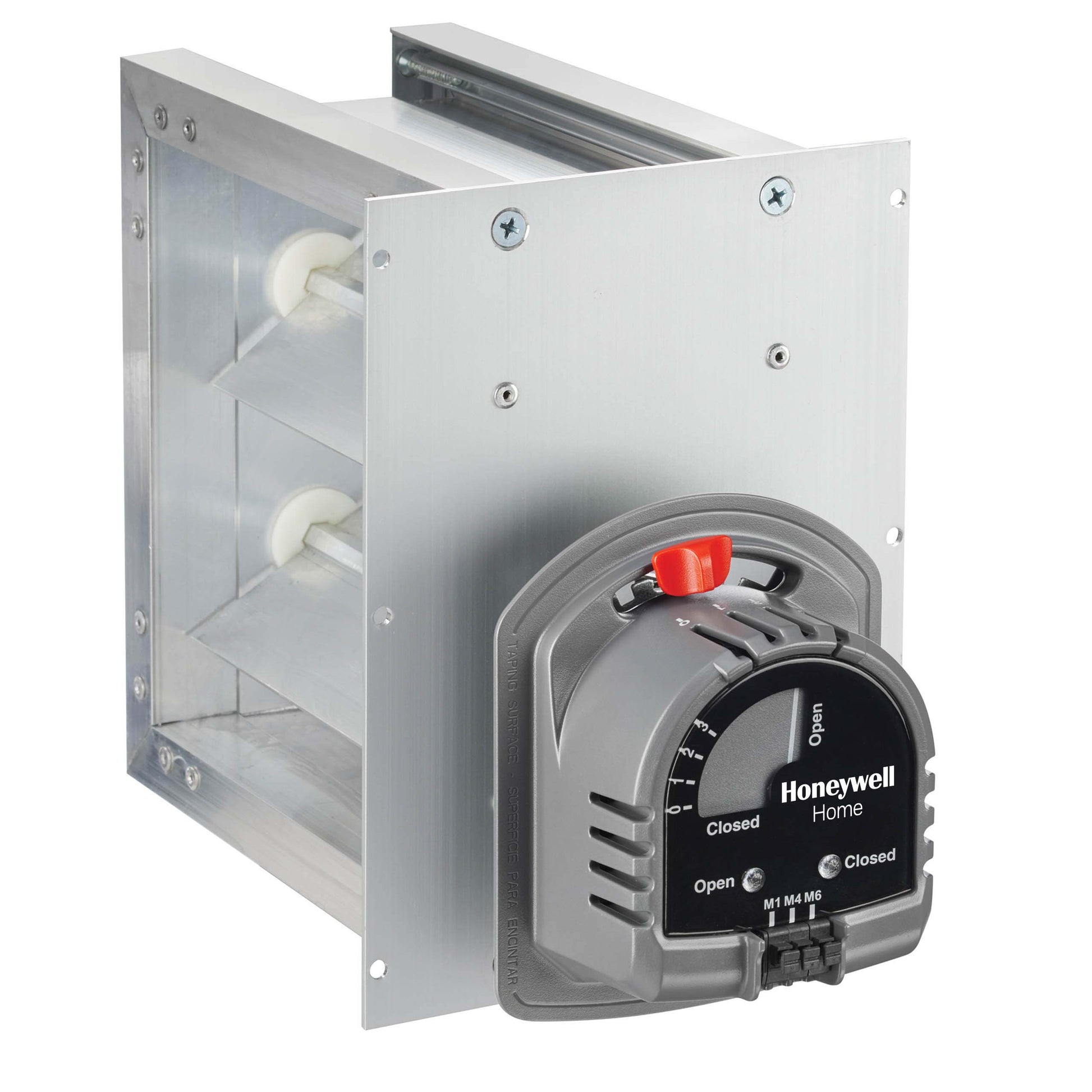

Resideo - Honeywell Home ZD20X12TZ Zone Control Damper

Zone Control Damper improves zoning and airflow management for HVAC systems, delivering precise control where it matters. The Resideo - Honeywell Home ZD20X12TZ Zone Control Damper features a rectangular, parallel blade design for 20 x 12 inch ductwork and is built from extruded aluminum for durability and lightweight handling.

This damper includes spring return, mechanical visual position indicator, and fail-safe, normally open operation. Its 24V AC motor (8 VA) provides smooth, reliable actuation with 90-degree travel and a 30s open/10s return timing. It’s engineered for efficiency with a low pressure drop (<0.033 in. wc at 800 fpm) and a maximum static pressure rating of 1 in. wc. The side-mount motor, LED option, and durable construction suit most parallel blade installations from 40 to 140 F.

• Size: 20" x 12" duct, rectangular, parallel blade
• Operation: Power closed, spring open; fail-safe, normally open
• Motor: 24V AC, 8 VA, 71 in-oz torque, 90° travel
• Performance: 0.0329 in. wc @ 800 fpm; 30s open / 10s return
• Durability: Extruded aluminum blade; side-mount motor; visual indicator
