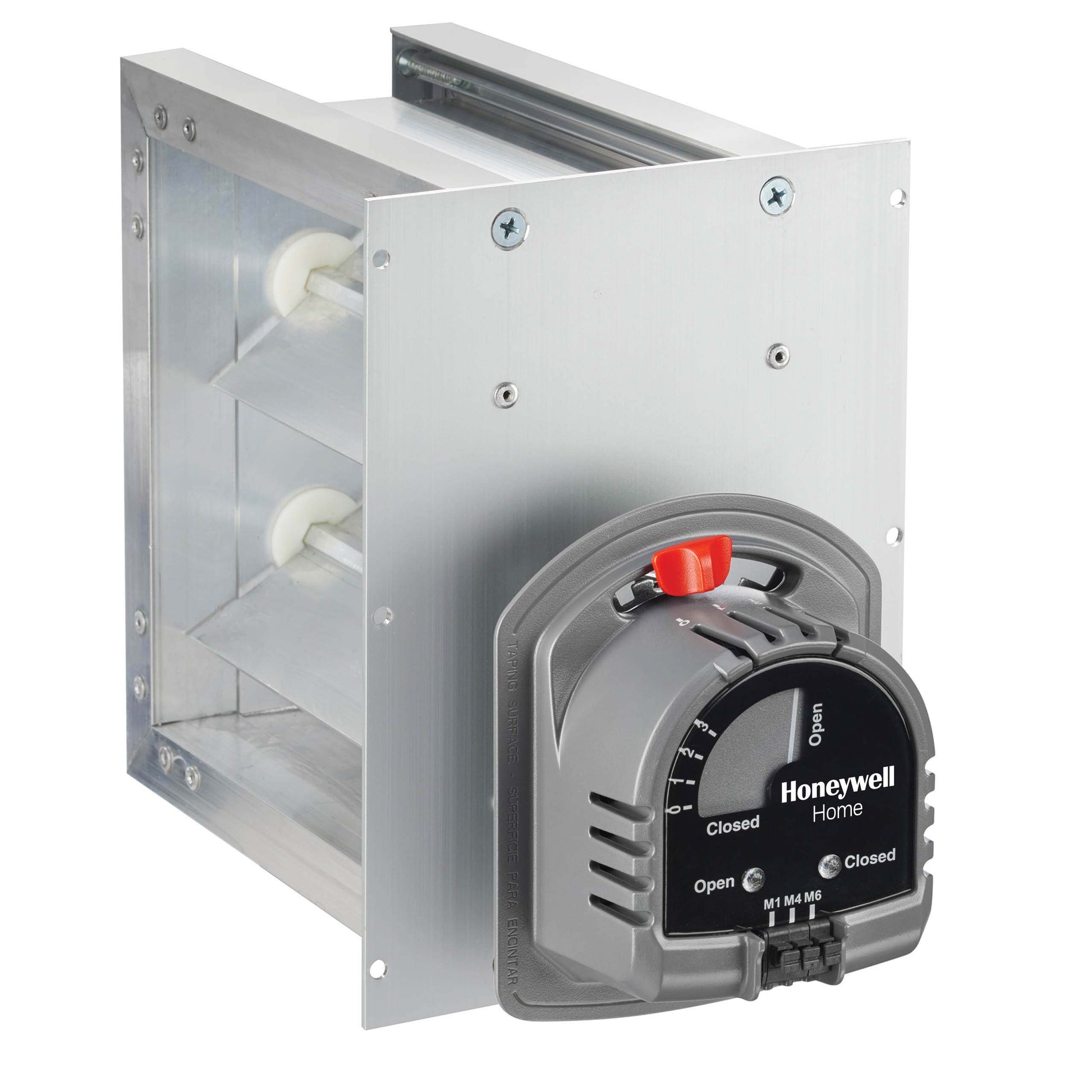

Resideo - Honeywell Home ZD24X10TZ Zone Control Damper

The ZD24X10TZ Zone Control Damper from Resideo Honeywell Home delivers precise zone control for HVAC systems. This rectangular, parallel-blade damper is designed for 24 x 10 inch ducts and features extruded aluminum blades for durability. With spring return, a mechanical visual position indicator, and fail-safe, normally open operation, it provides dependable, quiet airflow management across zones. The 24V AC, 60 Hz motor delivers 71 in-oz of torque for reliable opening and closing in regulated HVAC zoning.

Key features include:

• Duct Size: 24" x 10"
• Damper Type: Rectangular, Parallel Blade
• Blade Material: Extruded Aluminum
• Operation: Power Closed, Spring Open; Fail Safe; Normally Open
• Motor: 24V AC, 60 Hz, 8 VA; Torque 71 in-oz
• Temperature Range: 40–140°F
• Pressure Drop: <0.033 in WC at 800 FPM
• Maximum Static Pressure: 1 in WC
• Angular Rotation: 90°
• Motor Mounting: Side
• Inclusions: Spring Return, Mechanical Visual Position Indicator, LED Indication
• Timing: 30s Power Open / 10s Spring Return

Designed for reliable HVAC zoning with smooth, responsive damper control, the ZD24X10TZ combines durable construction and precise performance for comfortable, energy-efficient climate control.
