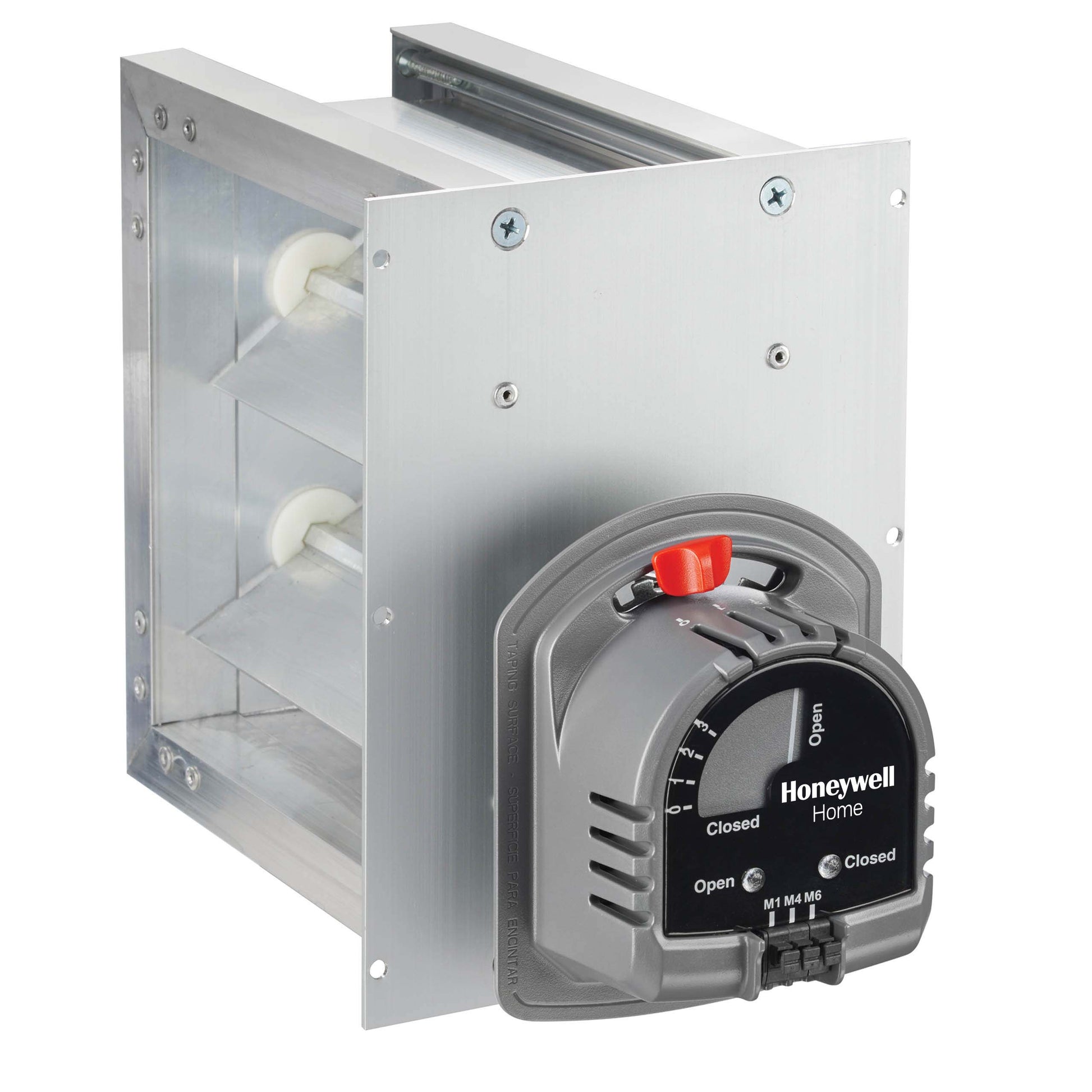

Resideo - Honeywell Home ZD6X8TZ Zone Control Damper

The Zone Control Damper from Resideo - Honeywell Home ZD6X8TZ delivers precise airflow management for multi-zone HVAC systems. This rectangular, parallel blade damper fits a 6 x 8 inch duct and is powered by a 24V AC motor for dependable performance across temperatures from 40 to 140°F.

Designed for HVAC zoning, it combines a low pressure drop with fail-safe normally open operation. The damper includes a mechanical visual position indicator and LED indication for quick status checks, and its bottom-mounted motor saves space in tight plenums, making it ideal for residential or commercial zone control applications.

• Type: Rectangular, Parallel Blade
• Duct Size: 6 in x 8 in
• Motor: 24 VAC, 60 Hz; 8 VA; bottom mount
• Operation: Fail Safe, Normally Open; Power Open (30s) / Spring Return (10s)
• Torque: 71 in-oz
• Indicators: Mechanical Visual Position Indicator + LED
• Environmental: Temperature 40–140°F; Max Static Pressure 1 in WC
• Performance: Pressure Drop < 0.033 in WC at 800 FPM
