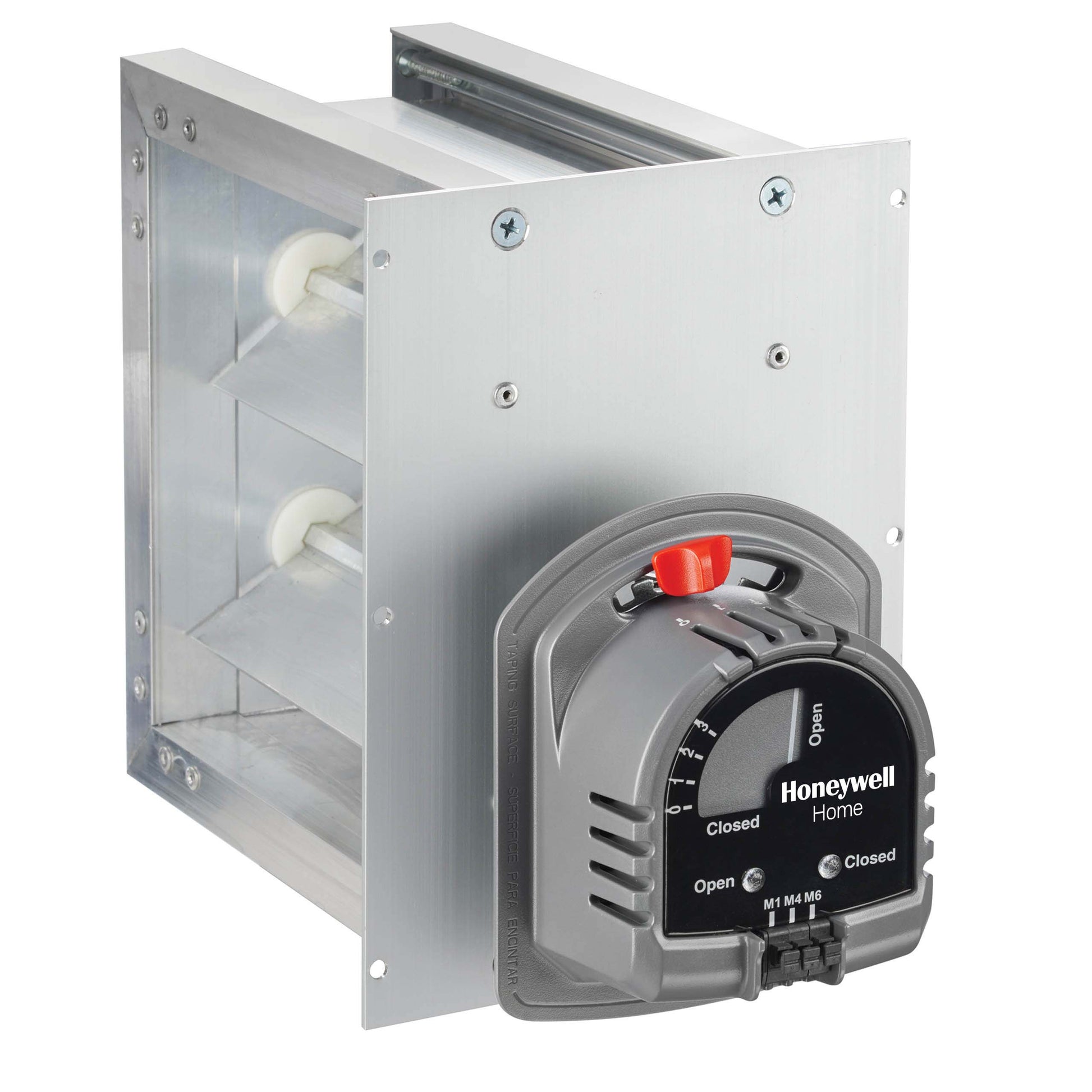

Resideo - Honeywell Home ZD8X12TZ Zone Control Damper

Zone Control Damper, the ZD8X12TZ from Resideo - Honeywell Home, delivers precise zoning with a rectangular damper featuring parallel blades for 8x12 inch ductwork. This durable unit uses extruded aluminum blades for smooth, long-lasting airflow control in residential or light commercial HVAC systems.

Designed for parallel blade operation, this damper offers a bottom-mounted 24V AC motor (60 Hz) delivering 71 in-oz of torque through a 90-degree rotation. It supports normally open operation with a spring return and time-limited action: 30 seconds to open when powered, 10 seconds to return on spring drive. With a mechanical visual position indicator and LED indication (optional M4), status is easy to read at a glance.

• 8" x 12" rectangular damper with parallel blades
• Extruded aluminum blade material for durability
• Bottom-mounted 24V AC motor, 71 in-oz torque, 90° travel
• Power closed, spring open operation with 30s / 10s timing
• Normally open operation and fail-safe design
• Mechanical visual position indicator; LED indication (optional M4)
• Low pressure drop (< 0.033 in. WC @ 800 fpm); max static pressure 1 in. WC
• Operating temperature 40–140°F
