Resideo - Honeywell Home ZD8X16TZ Zone Control Damper

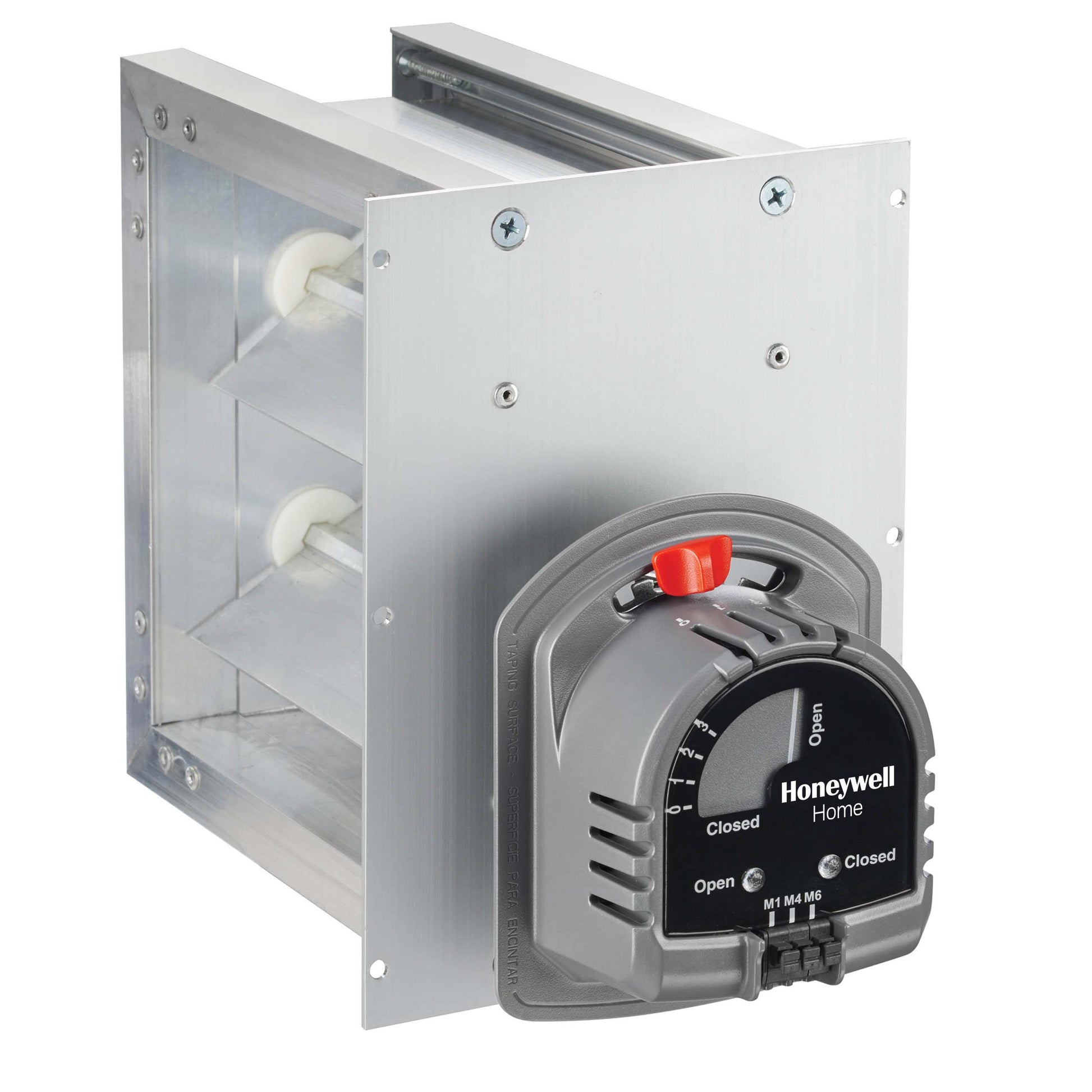

ZD8X16TZ Zone Control Damper delivers precise airflow control for residential HVAC zoning. This rugged rectangular, parallel-blade damper fits 8 x 16 inch ducts and uses extruded aluminum blades for durability. It includes Spring Return, Mechanical Visual Position Indicator, Fail Safe, and Normally Open Operation, and is powered by a 24V AC motor with bottom mounting for straightforward installation.

Designed for efficiency, the damper travels 90 degrees with a 30-second powered-open and 10-second spring-return timing, while maintaining a low pressure drop. Its compact design supports a maximum static pressure of 1 inch WC and a 40–140°F operating range. LED indication provides easy status checks, and the wiring supports M1 Power and M6 Common (M4 LED optional).

• Type: Rectangular, Parallel Blade
• Duct Size: 8" x 16"
• Blade Material: Extruded Aluminum
• Inclusions: Spring Return, Visual Position Indicator, Fail Safe, Normally Open Operation
• Motor Rating: 24V AC, 60 Hz, 8 VA
• Torque: 71 in-oz
• Temperature Range: 40–140°F
• Pressure Drop: < 0.0329 in WC @ 800 FPM
• Travel: 90°
• Max Static Pressure: 1 in WC
• Mounting: Bottom
• Operation: Power Closed, Spring Open
• Timing: 30 s Power Open / 10 s Spring Return
• Wiring: M1 Power, M6 Common, M4 LED Indication (Optional)
