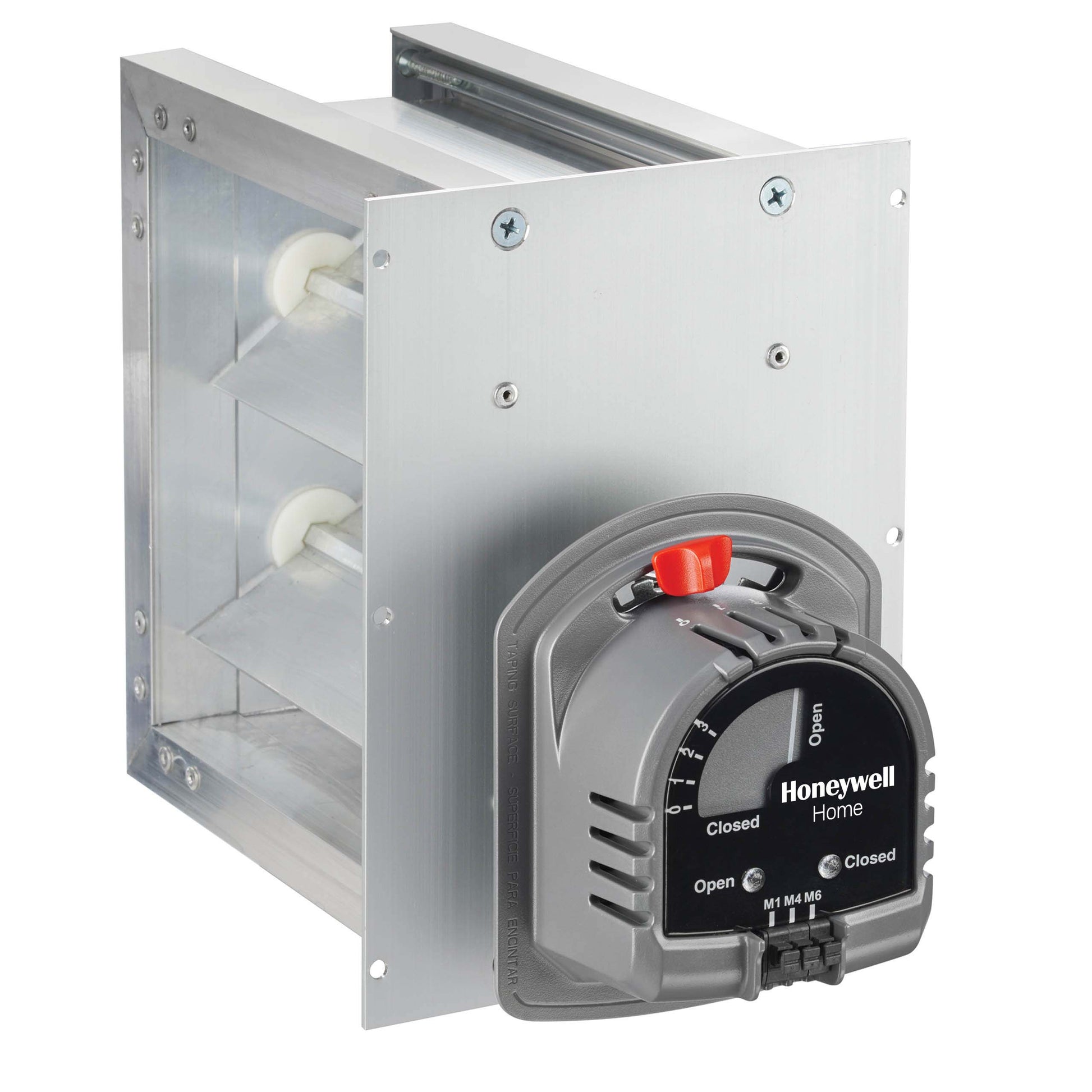

Resideo - Honeywell Home ZD8X18TZ Zone Control Damper

The ZD8X18TZ Zone Control Damper from Resideo Honeywell Home delivers precise zone control for HVAC systems with a robust rectangular, parallel-blade design. Designed for 8x18 inch ductwork, this damper ensures efficient, balanced airflow across zones.

With a rectangular, parallel blade configuration and extruded aluminum blade material, the ZD8X18TZ provides durable, consistent performance in active zoning. It includes Spring Return, Mechanical Visual Position Indicator, Fail Safe, and Normally Open operation for reliable control in everyday HVAC applications.

• Designed for 8x18 inch ductwork in parallel blade dampers
• Motor: 24 Volt AC at 60 Hz, 8 VA; Torque 71 in-oz; 90-degree rotation
• Operating range: 40–140°F; Maximum static pressure 1 in WC; Pressure drop < 0.0329 in WC at 800 fpm
• Motor mounting: Bottom; Motor type: Power Closed, Spring Open; Timing: 30s power open / 10s spring return
• Wiring: M1 (Power), M6 (Common), M4 (optional) LED indication

Whether upgrading an existing zoning system or installing a new setup, the ZD8X18TZ offers dependable fail-safe operation and clear status indicators for efficient HVAC zoning.
