Resideo - Honeywell Home ZD8X6TZ Zone Control Damper

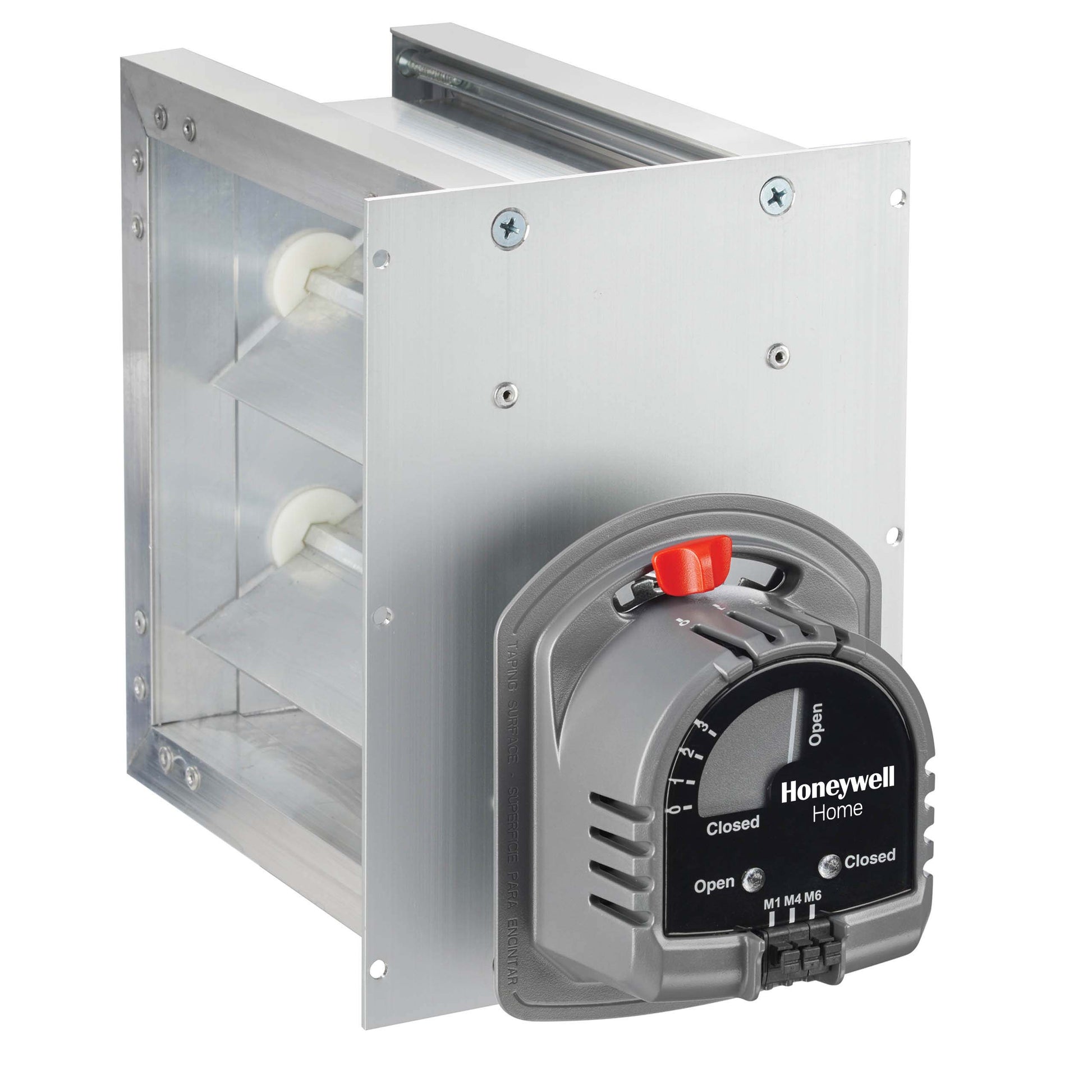

ZD8X6TZ Zone Control Damper from Resideo—Honeywell Home delivers precise HVAC zoning with a Rectangular, Parallel Blade design. This 8 x 6 inch duct damper uses extruded aluminum blades for durability and smooth operation, ideal for multi-zone systems.

Engineered for reliability, it features a spring return mechanism, mechanical visual position indicator, fail safe operation, and normally open capability. The 24V AC motor at 60 Hz provides 71 in-oz torque and a 90-degree rotation for fast, precise damper positioning. Expect a responsive action with a 30-second (power open) / 10-second (spring return) timing.

• Duct Size: 8" x 6"
• Blade Material: Extruded Aluminum
• Operation: Power Closed, Spring Open; Fail Safe; Normally Open
• Motor: 24V AC, 60 Hz; 8 VA; 71 in‑oz torque
• Rotation: 90°
• Temperature Range: 40–140°F
• Pressure Drop: < 0.0329 in WC @ 800 FPM
• Max Static Pressure: 1 in WC
• Mounting: Side motor mounting
• Wiring: M1 (Power), M6 (Common), M4 (Optional) LED Indication

Ideal for HVAC zoning, this damper combines robust build with easy integration into existing ductwork, delivering efficient, controlled airflow where you need it most.
