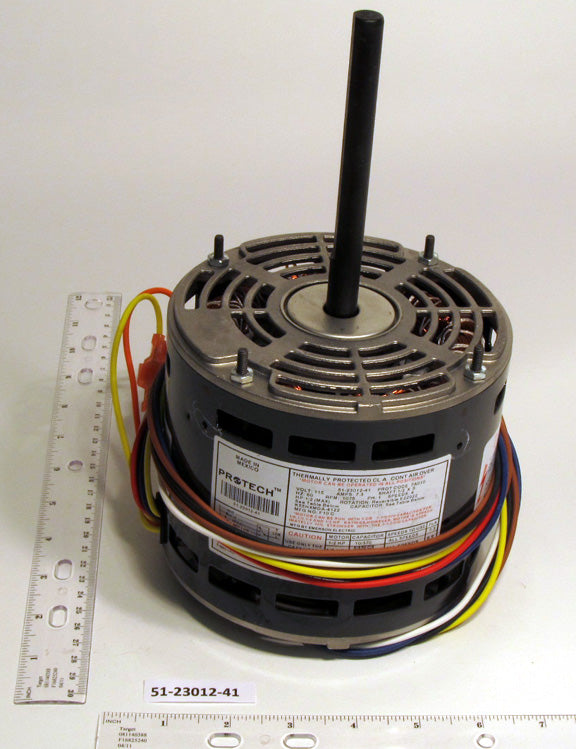

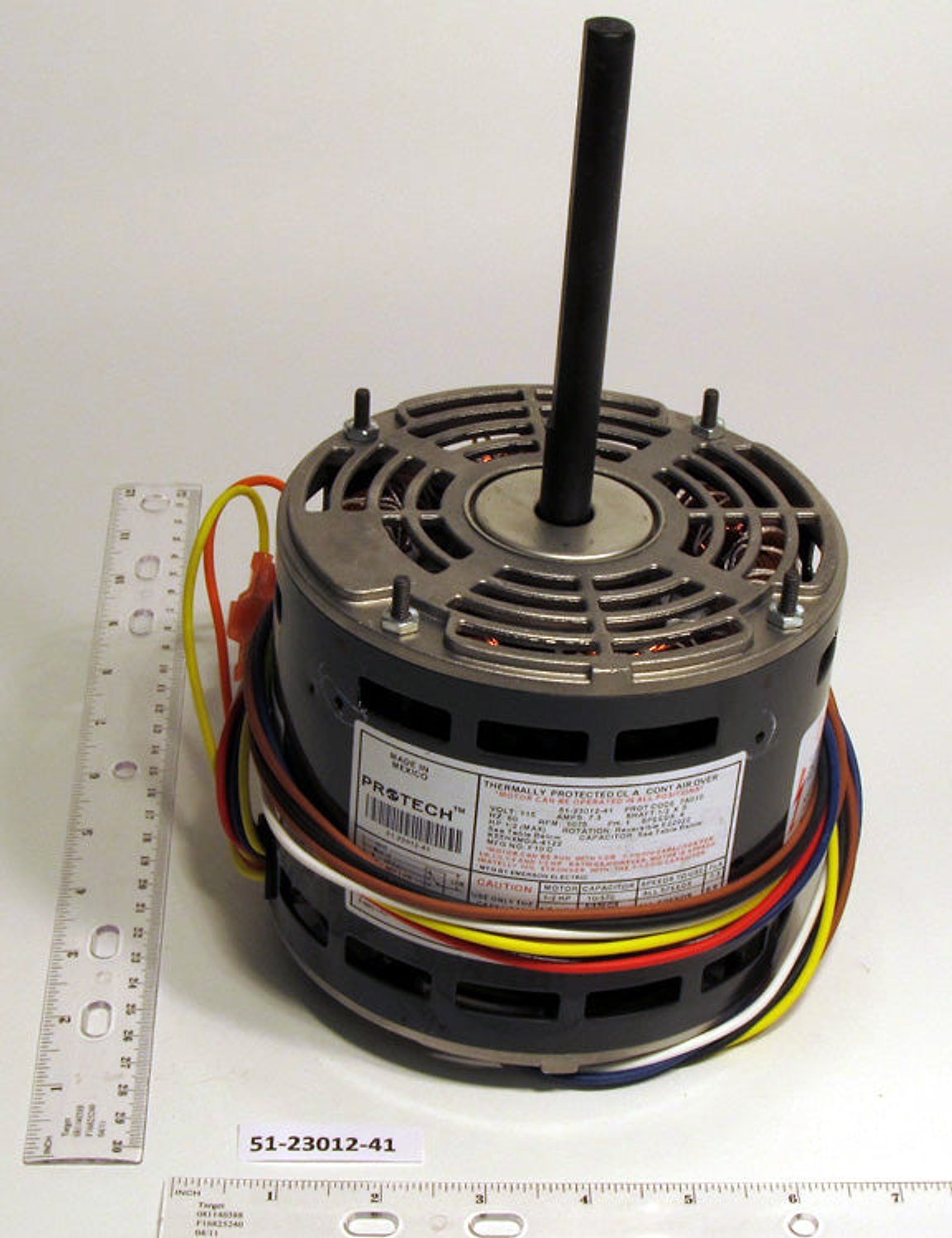

Rheem Furnace Parts 51-23012-41 Blower Motor

Rheem Furnace Parts 51-23012-41 Blower Motor is a dependable gas furnace blower motor designed for 120V AC, single-phase operation. This unit delivers 1/6 to 1/2 HP and runs at 60 Hz, with a Full Load Amps (FLA) of 7.3 at 120V, ensuring robust airflow across a 4-speed spectrum for versatile furnace performance.

Reversible operation provides flexible installation, while the direct-drive configuration minimizes belt maintenance and increases reliability. The motor uses sleeve bearings for quiet, smooth operation and is designed for gas furnace applications. Mounting is versatile with Shell-Band, Shell-Screw, or Thru-Bolt options. The overall length is 9-11/16 inches, with a body size of 5-5/8 inch diameter by 4-11/16 inch length. The shaft is 1/2 inch diameter by 5 inches long. Capacitance options are 5/7.5/10 µF at 370V.

• Power: 1/6–1/2 HP
• Voltage: 120V AC, single-phase; frequency 60 Hz
• Speeds: 4 (up to 1075 RPM)
• Reversible and direct-drive design
• Bearing: sleeve; Mounting: shell-band / shell-screw / thru-bolt
• Dimensions: overall length 9-11/16", body diameter 5-5/8", length 4-11/16"
• Shaft: 1/2" diameter x 5" length
• Capacitors: 5/7.5/10 µF at 370V
• Application: gas furnace replacement part

This replacement part helps maintain efficient heating and reliable furnace operation.
