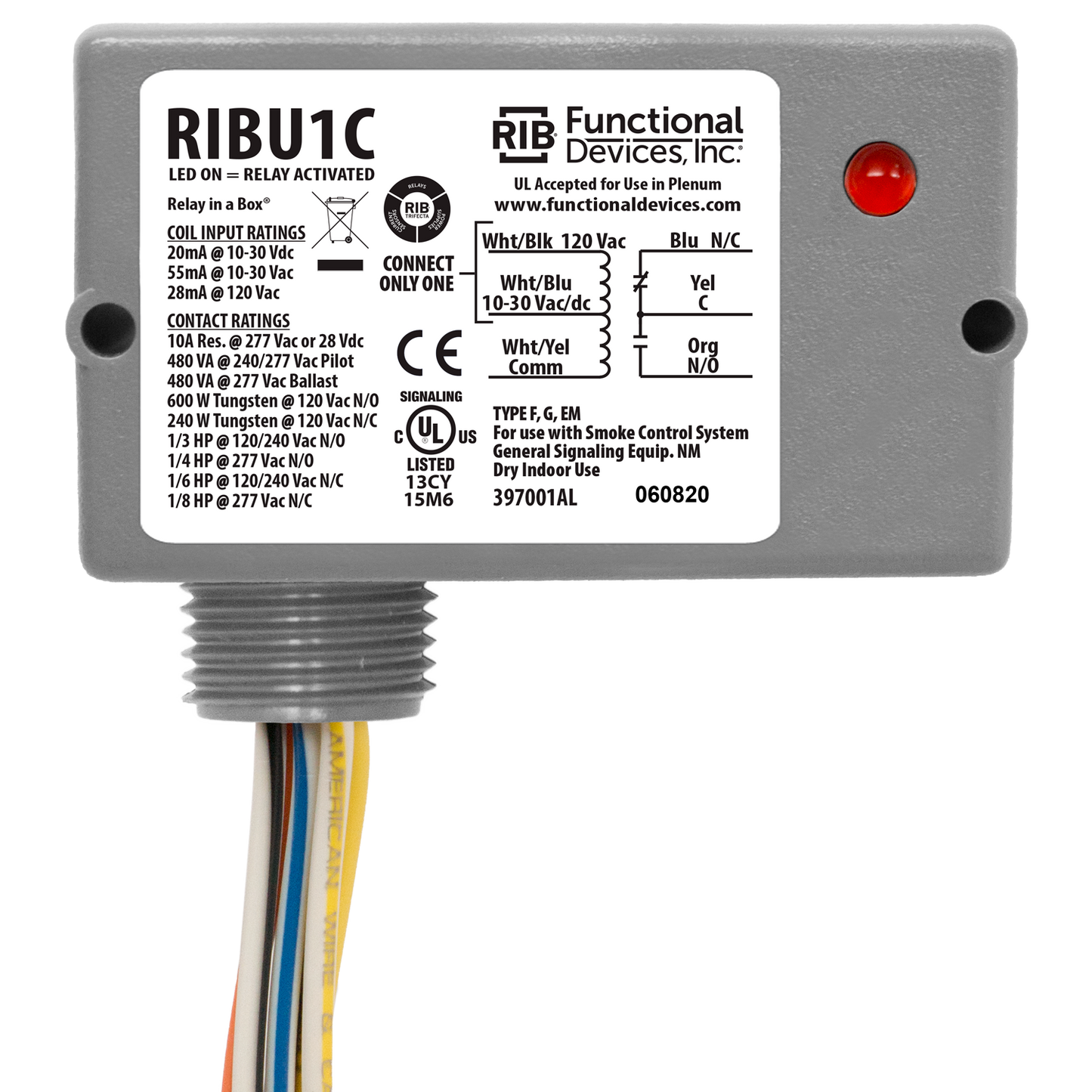

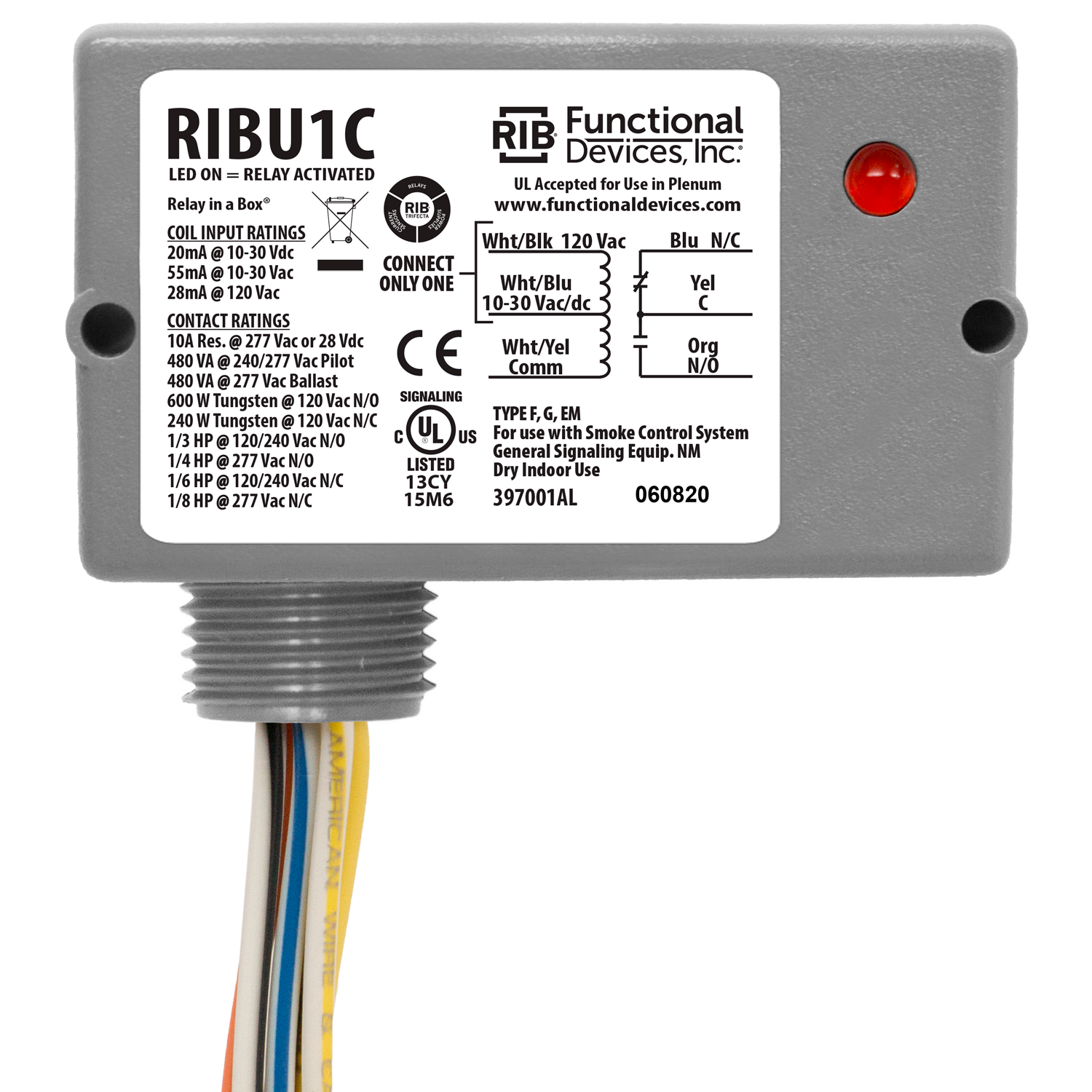

RIB Relays RIBU1C Enclosed Pilot Control Relay

The RIBU1C Enclosed Pilot Control Relay is a compact, UL-approved solution designed for reliable AC/DC operated control in industrial panels. It supports a wide coil range—10–30 VAC @ 50–60 Hz, 120 VAC, and 10–30 VDC—with a low 28 mA coil current at 120 VAC. Housed in a sturdy NEMA 1 enclosure, it’s ready for demanding environments and easy to mount. Featuring SPDT contacts and a robust 10 A resistive rating, this relay seamlessly handles ballast, tungsten, and pilot-duty applications across a broad voltage spectrum. Designed for fast, dependable operation, it delivers consistent performance for lighting controls, machine panels, and automated systems.

• Contact configuration: SPDT for versatile switching
• Enclosure: NEMA 1 protection
• Coil options: 10–30 VAC @ 50–60 Hz, 120 VAC, 10–30 VDC; 28 mA coil current @ 120 VAC
• Ratings: 277 VAC (Resistive/Ballast/NO/NC), 28 VDC (Resistive), 120 VAC (Tungsten); 10 A resistive
• Power & duty: 240/600 W (Tungsten), 1/3–1/8 HP; Pilot duty 120–277 VAC
• Physicals: 2.8" W × 1.5" D × 1.7" H; includes LED, 16" 600V-rated wire, 0.5" threaded nipple
• Approvals & compliance: UL 916/864, CUL, UL (Canada/US), CE; RoHS compliant
• Environment: Operating temp −30 to 140°F; humidity 5–95%
