RIB Relays RIBXGA-SCAL Current Sensor

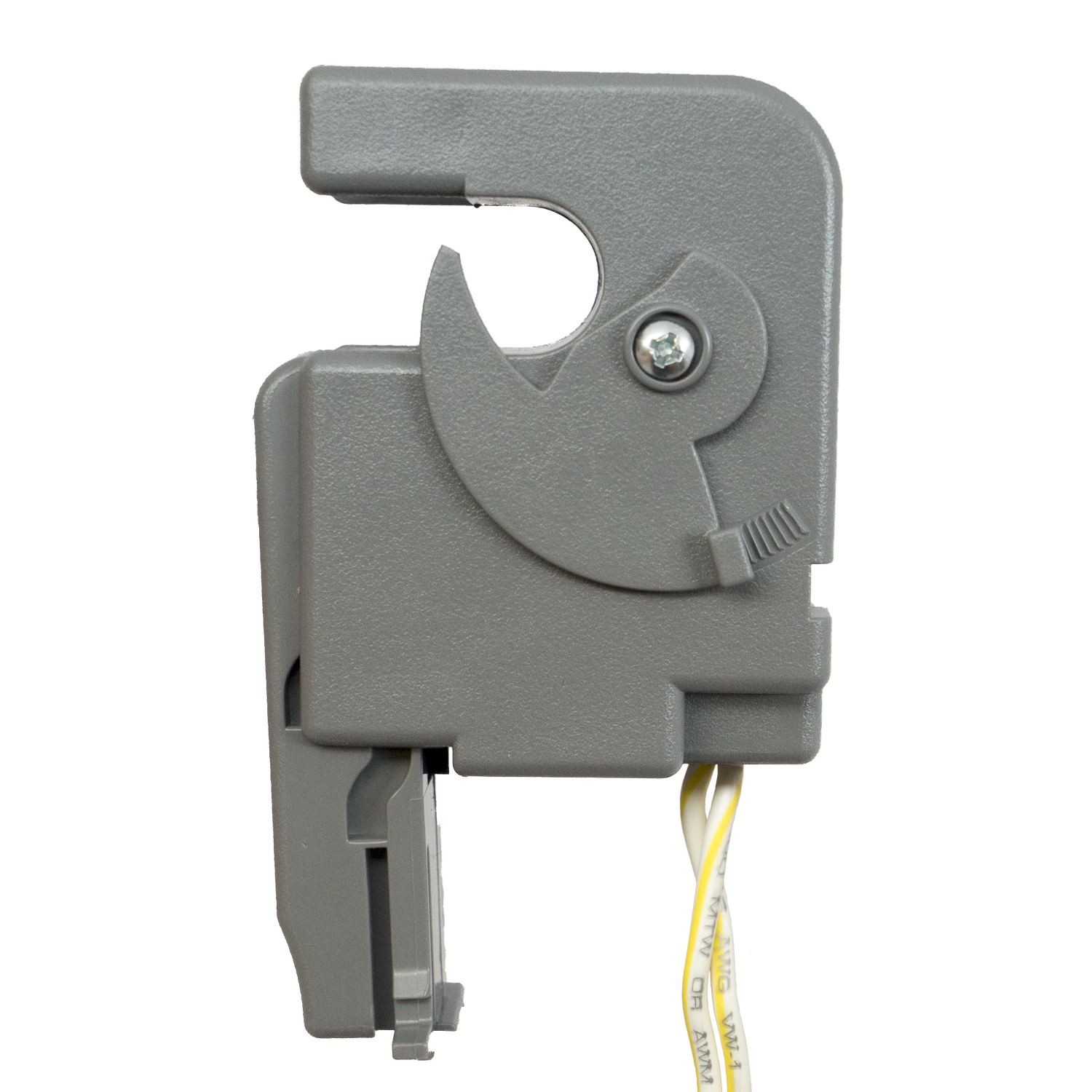

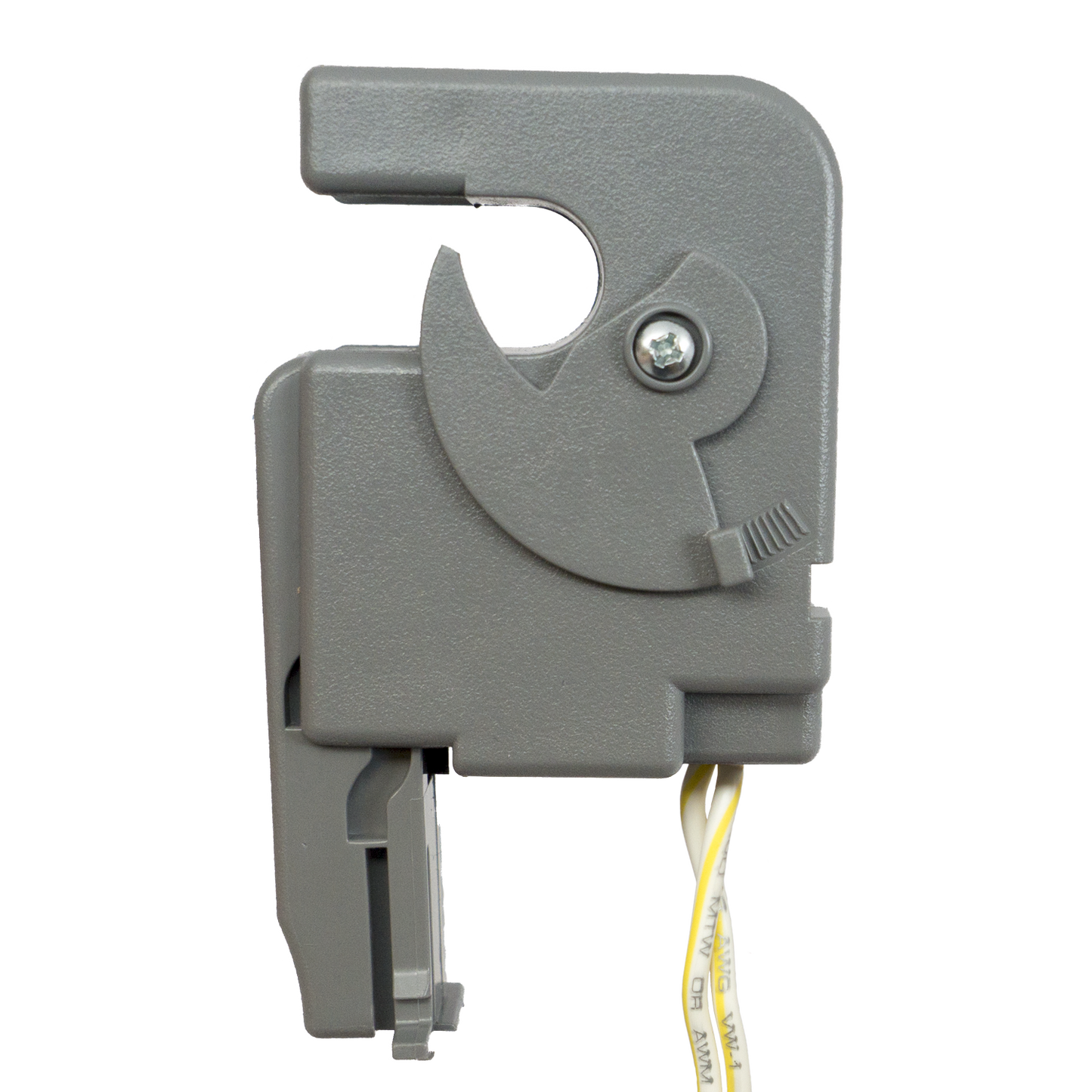

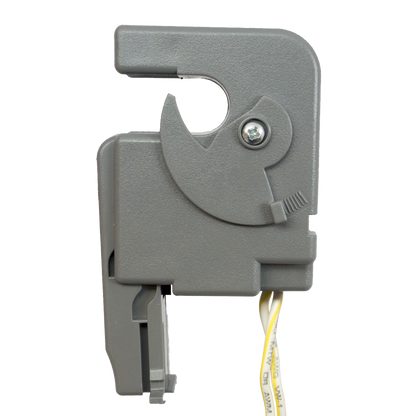

RIBXGA-SCAL Current Sensor from RIB Relays is an enclosed split-core current sensor designed for straightforward installation in building automation. The RIBXGA-SCAL Current Sensor delivers self-adjusting, open/closed loop operation with self-calibrating accuracy across a sensing range of 3 to 150 A, rated for up to 600 V AC.

This RoHS-compliant device features 16 AWG wire leads (18 inches) and a 30 V AC/DC switching voltage, making it ideal for energy monitoring, load control, and safety interlock applications in commercial systems.

• Sensing range: 3–150 A
• Enclosed split-core design for quick retrofits
• Self-calibrating, self-adjusting performance
• Output: 0.4 A solid-state SPST switch
• Switching voltage rating: 30 V AC/DC
• Voltage rating: 600 V AC
• Operating temperature: -30 to 140°F
• Humidity range: 5–95% non-condensing
• Lead wires: 16 AWG, 18 in length
• Certifications: UL (Canada/US), UL 916/864, CUL, CE; RoHS compliant
• Compact enclosure size: 2.25" L x 1.75" W x 2" H
• Contact rating: Open 30 μA at 30 V; Closed 0.3–1.6 V at 0.1–0.4 A

Designed for durable performance in building automation, this sensor meets RoHS compliance and provides reliable monitoring for energy usage and protective interlocking.
