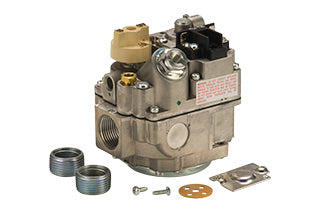

Robertshaw 700-406 Combination Gas Valve

The Robertshaw 700-406 Combination Gas Valve is a compact, high-capacity gas valve designed for heating systems. With a nominal size of 3/4 inch and female threaded end connections, it accepts 24 V AC at 0.2 A or 12 V DC at 0.18 A and operates safely from -40 to 175°F. Rated at 1/2 psi, this valve handles up to 300,000 BTU/hour, making it ideal for efficient gas control in residential and light commercial applications. Built to UL and CSA standards and RoHS compliant, it offers reliable performance and safety in natural gas installations. The unit includes an inlet filtered screen and regulator cover plate, plus a 1/4 inch pilot outlet tubing and a 2 inch threaded reducer bushing for versatile hookup. With screw/spade terminals and a straight-through side outlet, this valve delivers straightforward wiring and easy integration into existing gas trains.

• Nominal Size: 3/4 inch; End connection: Female threaded x Female threaded
• Input electrical: 24V AC @ 0.2 A or 12V DC @ 0.18 A
• Temperature range: -40 to 175°F
• Pressure rating: 1/2 psi; Regulator setting: 3.5 inch WC
• Capacity: 300,000 BTU/hour
• Included: Inlet filtered screen, Regulator cover plate
• Pilot outlet: 1/4 inch tubing; Reducer bushing: 2 inch threaded
• Terminals: Screw/Spade; Side outlet: Straight-through
• Standards: UL, CSA; RoHS compliant
