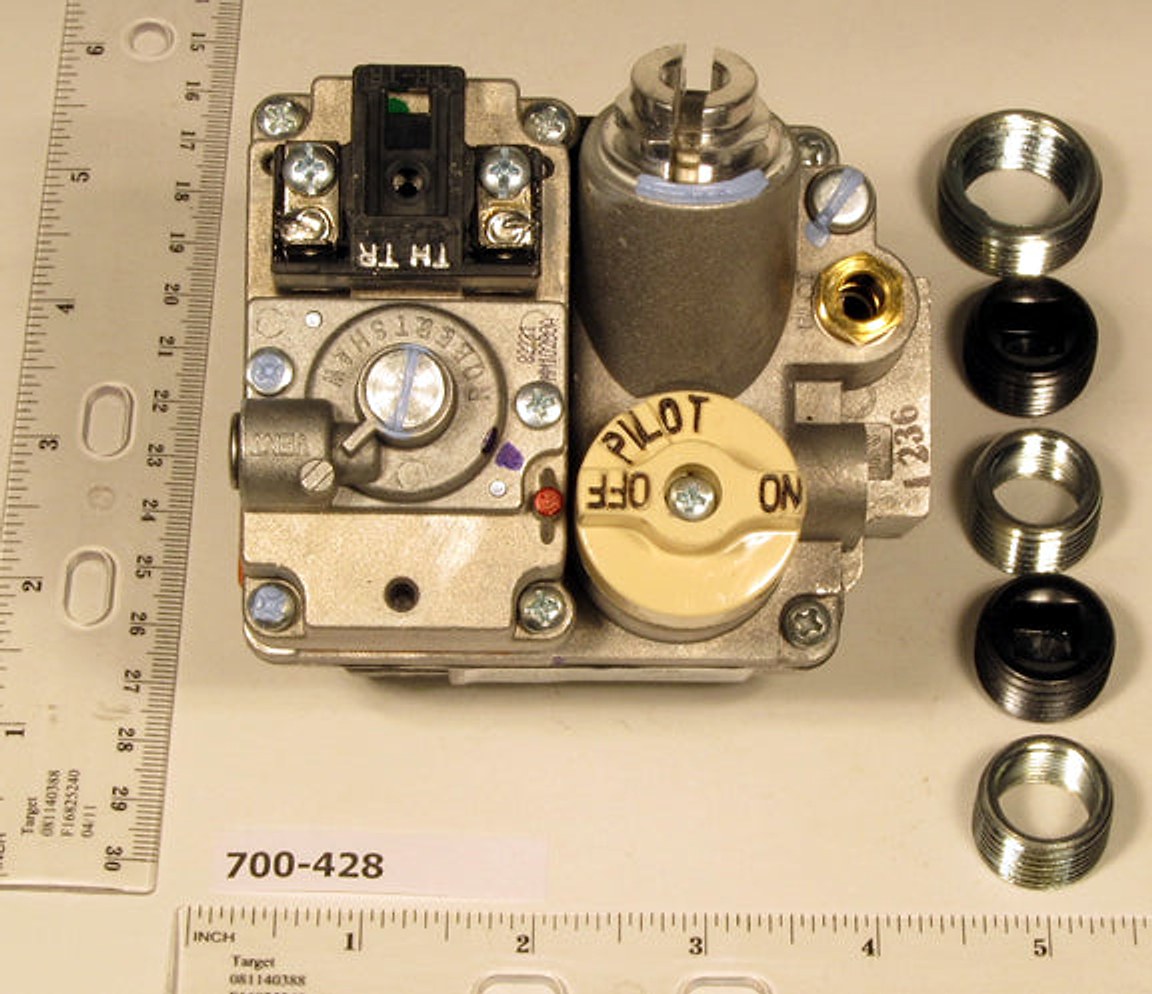

Robertshaw 700-428 Gas Valve

The Robertshaw 700-428 Gas Valve offers precise gas control for residential or commercial applications. Designed with a nominal size of 3/4 inch and female threaded x female threaded connections, this valve ensures a secure, leak-free fit for standard gas lines.

Featuring flexible electrical options, it supports 24 V AC at 0.2 A or 12 V DC at 0.18 A, and it operates across a wide temperature range from -40 to 175°F with a 1/2 PSI pressure rating. The valve includes an inlet filtered screen and a regulator cover plate, and is RoHS compliant for environmentally responsible use.

• Nominal size: 3/4 inch; End connection: Female Threaded x Female Threaded
• Electrical input: 24 V AC at 0.2 A or 12 V DC at 0.18 A
• Temperature / pressure: -40 to 175°F; 1/2 PSI maximum
• Inclusions: Inlet filtered screen, regulator cover plate; RoHS compliant
• Outlets & capacity: Side outlet straight-thru; Pilot outlet 1/4 inch tubing; 240,000 BTU/hour
• Additional specs: Reducer bushing size 3 inch threaded; Regulator setting 3.5 inch WC (Natural Gas)
