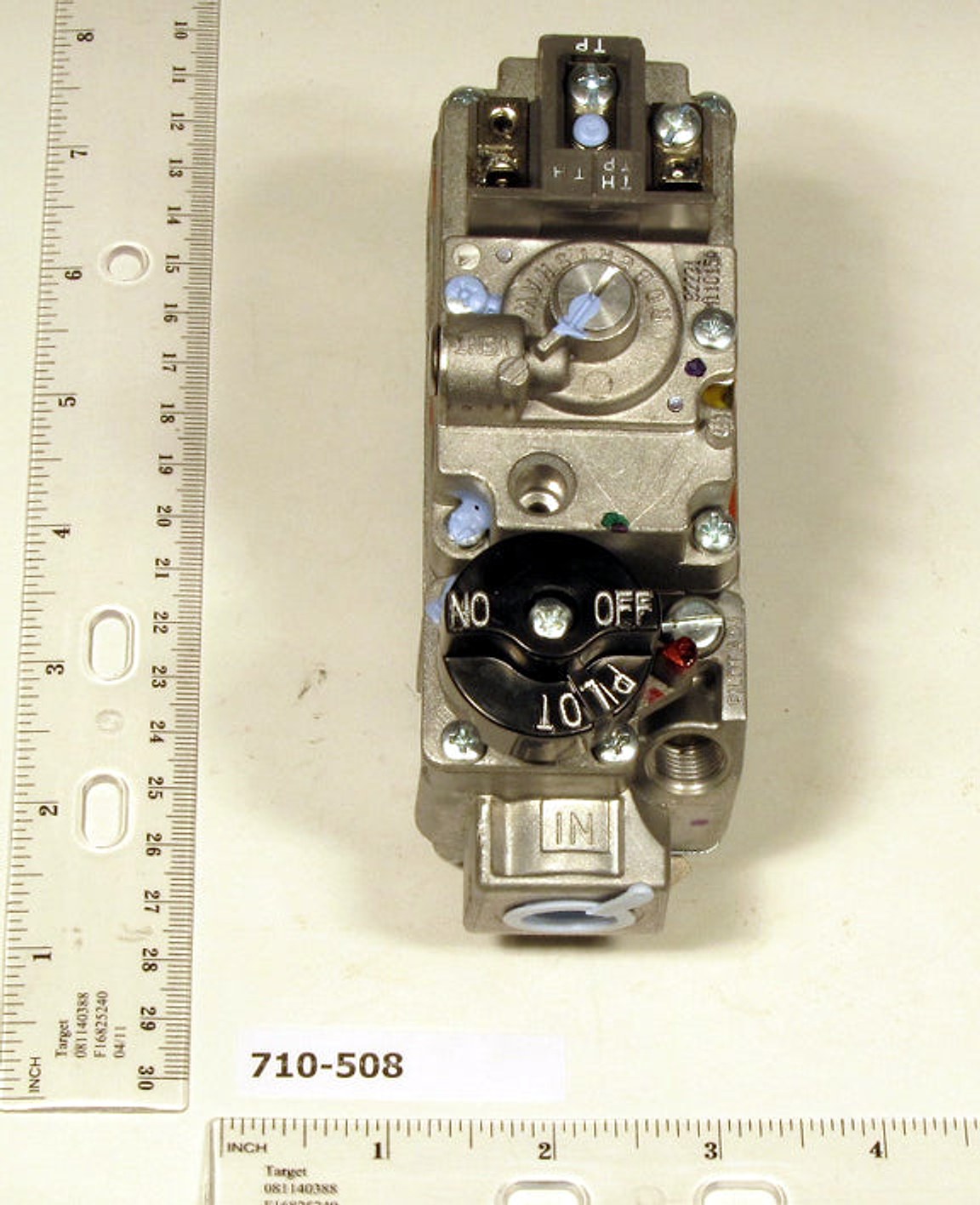

Robertshaw 710-508 Gas Valve

The Robertshaw 710-508 gas valve is a reliable low-capacity control designed for heating systems and fireplace controls. With a 3/8 inch nominal size and female threaded end connections, this valve delivers precise gas flow in compact installations. The compact actuator measures 4-21/32 inches long by 1-29/32 inches wide by 3-13/16 inches high, making it easy to retrofit into existing vented appliances.

• End connections: Female threaded x Female threaded for secure, leak‑free installation.
• Inlet features: Inlet filtered screen protects the valve from debris during operation.
• Model type: Type Low Capacity, 3/8 inch nominal size, ideal for heating and fireplace control.
• Power and pilot: 250–750 millivolt input; Pilot outlet size 1/4 inch tubing for standing pilot systems.
• Operating range: Temperature −40 to 175°F; Pressure rating 1/2 psi.
• Gas delivery: Capacity up to 700,000 BTU/hour; Natural gas regulator setting 3.5 Inch WC.
• Standards: CSA listed and RoHS compliant for safe, compliant operation.
• Outlet configuration: 3-position outlet provides flexible control options.

Whether upgrading an existing furnace valve or specifying a new installation, the Robertshaw 710-508 delivers dependable performance, safety, and efficiency for natural gas heating and fireplace applications.
