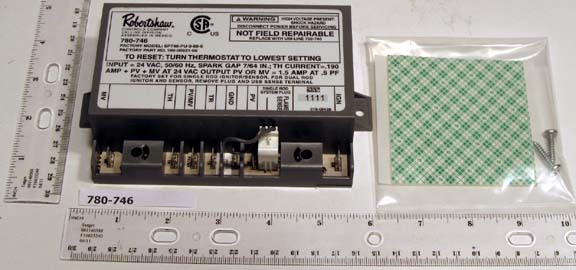

Robertshaw 780-746 Ignition Control Module

The Robertshaw 780-746 Ignition Control Module delivers dependable control for intermittent pilot ignition in heating systems. This ignition control module ensures precise start sequences with lockout protection and reliable flame sensing for safe, efficient operation.

Designed for 24V AC operation, it works with 50/60 Hz systems and offers a controlled ignition trial time, a six-minute prepurge, and a rapid flame failure response. Suitable for local sense, remote sense, and heating applications, this module safely manages the ignition sequence in modern equipment.

• Type: Intermittent Pilot with Lockout
• Ignition Trial Time: 3–4 second spark
• Prepurge Time: 6 Minute
• Flame Failure Response Time: 0.8 Second
• Valve Rating: 24 Volt AC at 50/60 Hertz
• Power Rating: 24 Volt AC at 20 Volt amp
• Input Voltage: 24 Volt AC at 50/60 Hertz
• Current Rating: 1.5 Amp
• Flame Sense Current: 0.7 Milliamp DC at 25 Deg C
• Temperature Range: -40 to 175 Deg F
• Applications: Local Sense, Remote Sense, Heating
