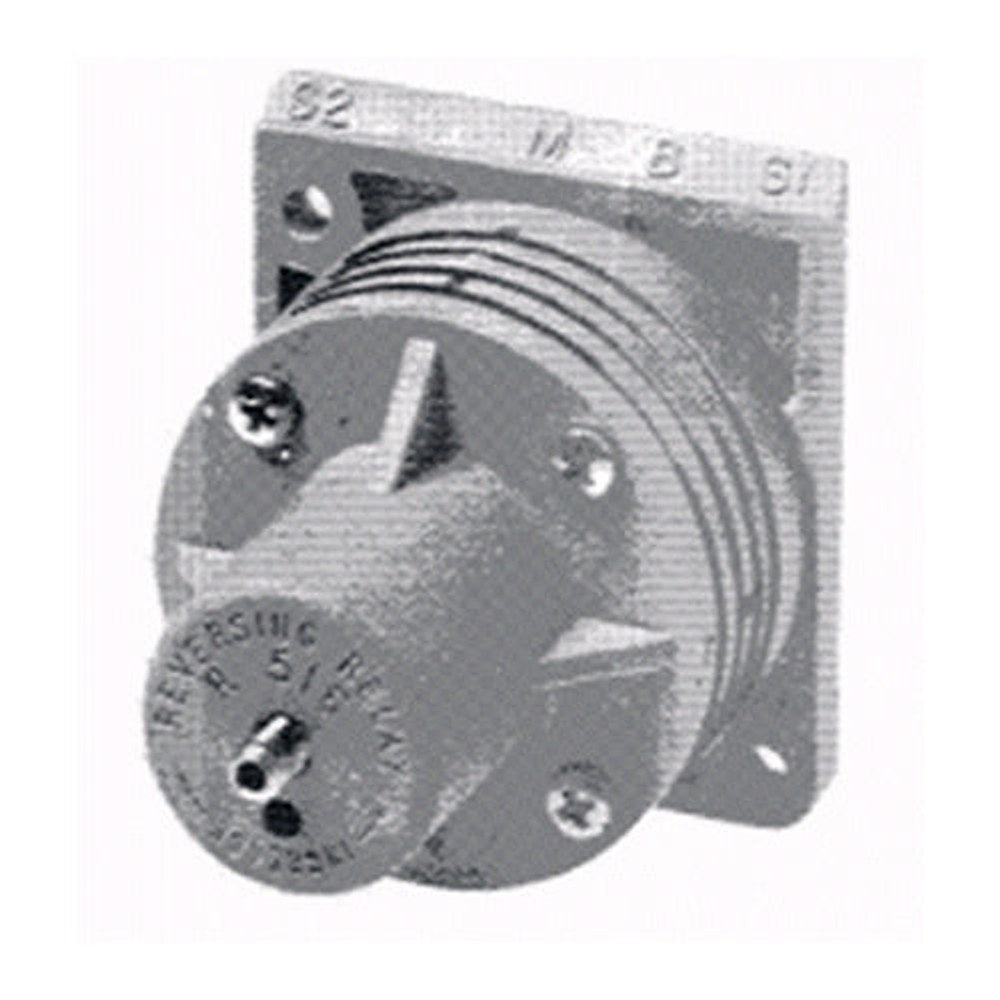

Schneider Electric 2360-501 Pneumatic Reversing Relay

Pneumatic Reversing Relay from Schneider Electric 2360-501 delivers reliable control in pneumatic systems. This model is designed for use in a pneumatic control system, reversing the signal to drive actuators with precision. Constructed from durable glass-filled nylon, it withstands demanding industrial environments and reduces wear on moving parts.

Compact and rugged, the relay fits neatly in control panels with dimensions of 1-7/8 in width x 2-9/64 in depth x 2-1/16 in height.

Designed for harsh conditions, it operates in ambient temperatures up to 140°F (60°C). It requires nominal supply air pressure of 20 PSIG and tolerates up to 30 PSIG. The unit's efficiency is shown by a main air consumption of 29.3 SCIM and an air flow capacity of 230 SCIM, delivering fast, dependable reversing action.

• Model: Schneider Electric 2360-501 Pneumatic Reversing Relay
• Material: Glass-filled nylon for durability
• Application: Used on pneumatic control systems
• Operating range: Ambient up to 140°F (60°C); 20–30 PSIG supply air
• Performance: 29.3 SCIM main air consumption; 230 SCIM air flow
