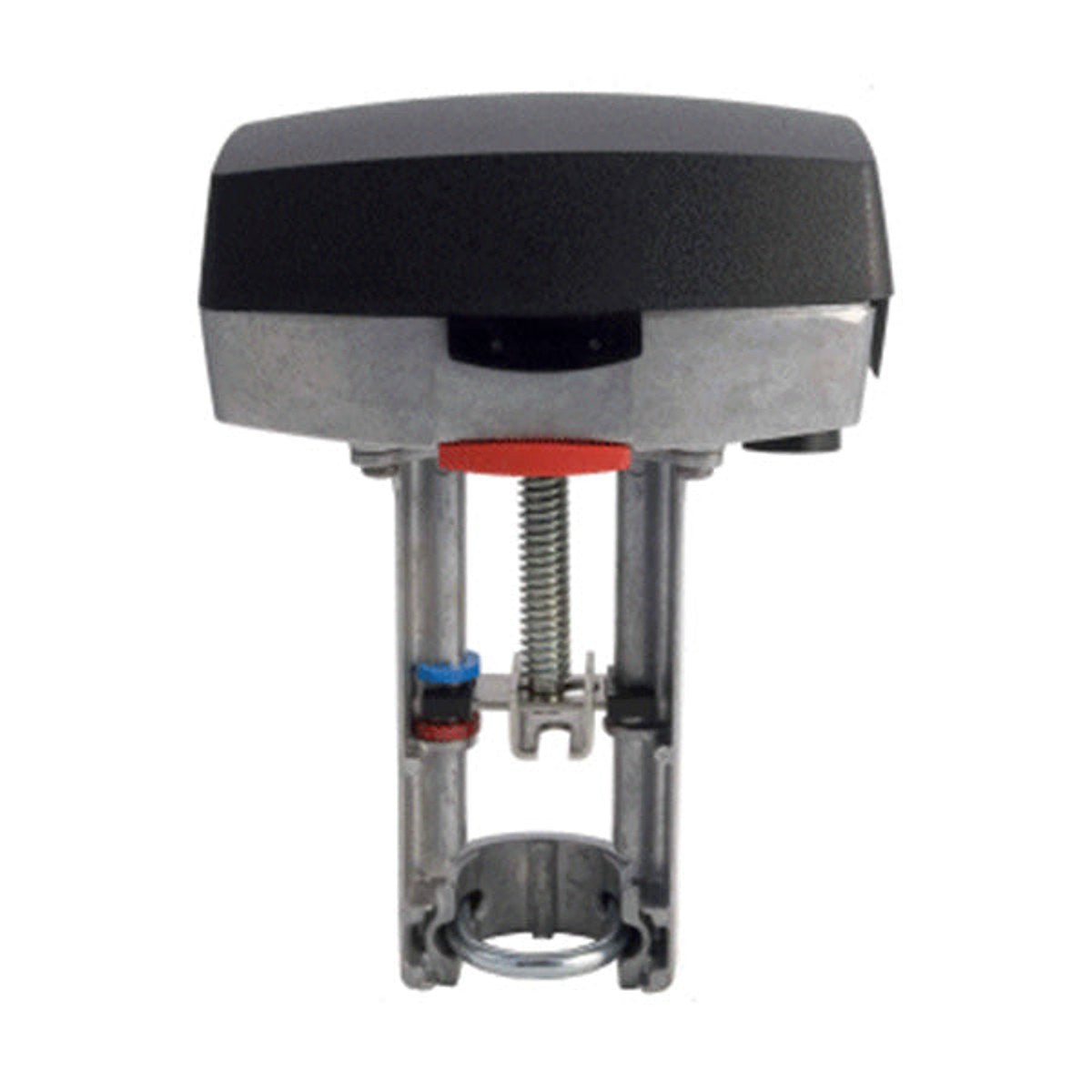

Schneider Electric M800A Valve Actuator

The Schneider Electric M800A Valve Actuator is designed for precise, proportional control of globe valves. This electric, floating, linear actuator delivers reliable non-spring return operation for demanding HVAC and process applications. With a 24 VAC / 20-29 VDC power range and a 50/60 Hz frequency, it fits into standard control panels while offering robust performance.

Key features include a 0 to 10 V DC control signal (and 2 to 10 V DC as a common operating range), a 4 to 20 mA option, and a nominal 800 N thrust to handle a wide variety of valve sizes. The actuator provides a linear, proportional output ideal for precise valve positioning and flow control.

• Electric valve actuator with non-spring return for dependable fail-safe behavior
• Proportional control using 0-10 VDC or 4-20 mA signals
• Globe valve compatibility with 800 N nominal force
• NEMA 1 enclosure for indoor use and durable mounting
• Operating temperature range 32–185°F (0–85°C)
• Voltage: 24 VAC / 20–29 VDC; Frequency: 50/60 Hz
• Output signal: 2–10 V DC

Ideal for building automation, process control, and HVAC systems requiring precise, reliable valve actuation.
