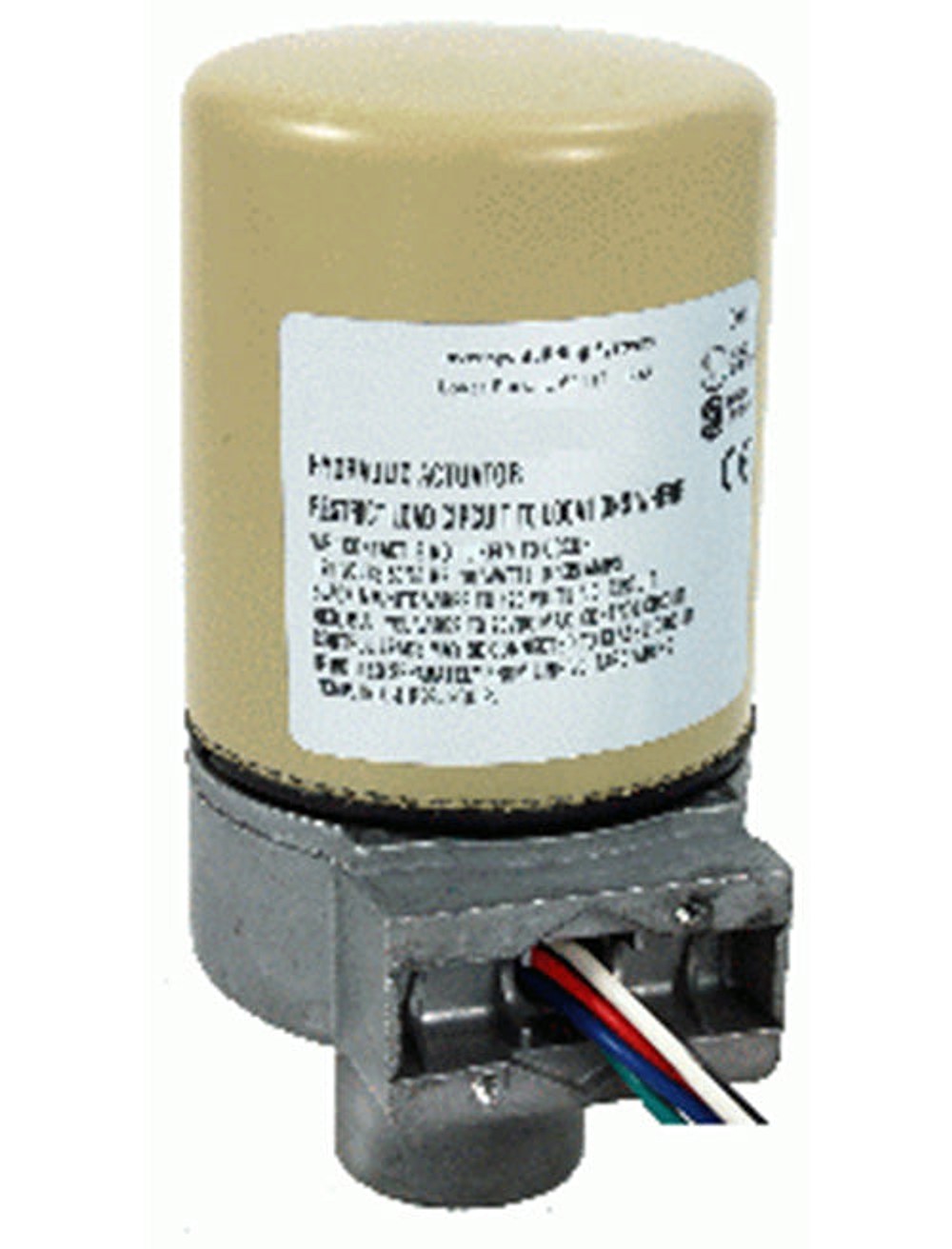

Schneider Electric MP-5213 Hydraulic Valve Actuator

Schneider Electric MP-5213 Hydraulic Valve Actuator delivers precise proportional control for dampers and valves in HVAC and process systems. The spring-return, proportional design provides reliable, self-centering operation for steady performance across demanding duty cycles.

As a proportional hydraulic actuator with spring-return design, it supports stroke options in 2 in and 9/16 in controlled by 6–90 VDC signals, while powered from a 24V AC supply.

• Stroke options: 2 in for damper at 6–90 VDC; 9/16 in for valve at 6–90 VDC, enabling precise position control.
• Input and power: Compatible with 24 V AC supply at 50/60 Hz, delivering dependable operation.
• Construction: Die-cast lower housing with painted steel upper housing for durability in harsher environments.
• Electrical: SPDT contact configuration with power ratings of 13.2 W at 50 Hz and 12 W at 60 Hz.
• Certifications: UL and CSA approved for safety and compliance in critical applications.

Designed for reliable performance across HVAC, process control, and automation projects, this actuator helps ensure smooth, accurate valve motion and damper positioning.
