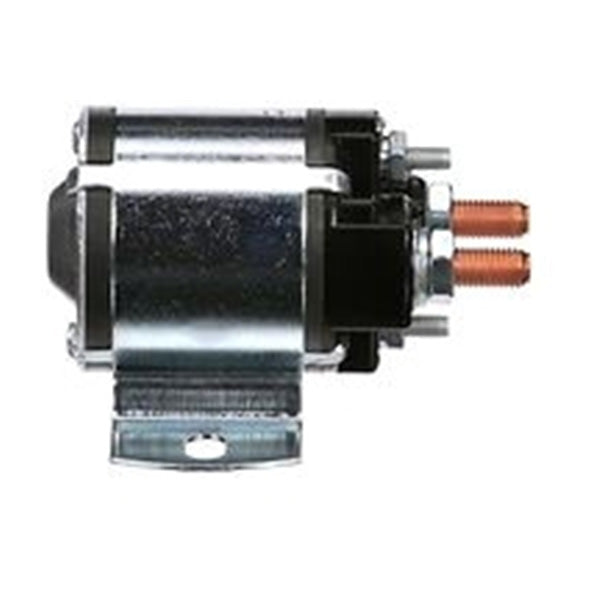

White-Rodgers 124-314111 Power Contactor

White-Rodgers 124-314111 Power Contactor is a rugged SPDT power switch designed for 24 Volt DC control with an isolated coil. This high-current contactor delivers reliable performance in demanding industrial applications, featuring a 150 Amp continuous rating and vertical-plane mounting for versatile installation.

Key operating specs and design features include a 24 VDC coil with 53 ohms coil resistance, SPDT contact arrangement, and a durable silver alloy contact material. The unit also offers a dielectric strength of 600 volts and a compact footprint suitable for panel mounting in tight control cabinets.

• Type: SPDT with isolated coil
• Voltage rating: 24 VDC
• Current rating: 150 A (continuous)
• Coil resistance: 53 Ω
• Contact material: Silver alloy
• Dielectric strength: 600 V
• Threaded connections: Contact 5/16-24 UNF-2A, Coil #10-3 UNF-2A
• Terminal type: 6; Bracket style: Standard
• Mounting: Vertical plane
• Overall dimensions: 4.69 in L x 3.13 in W x 2.19 in H
• Temperature rating: -40 to 149 °F
• Duty cycle: Continuous
