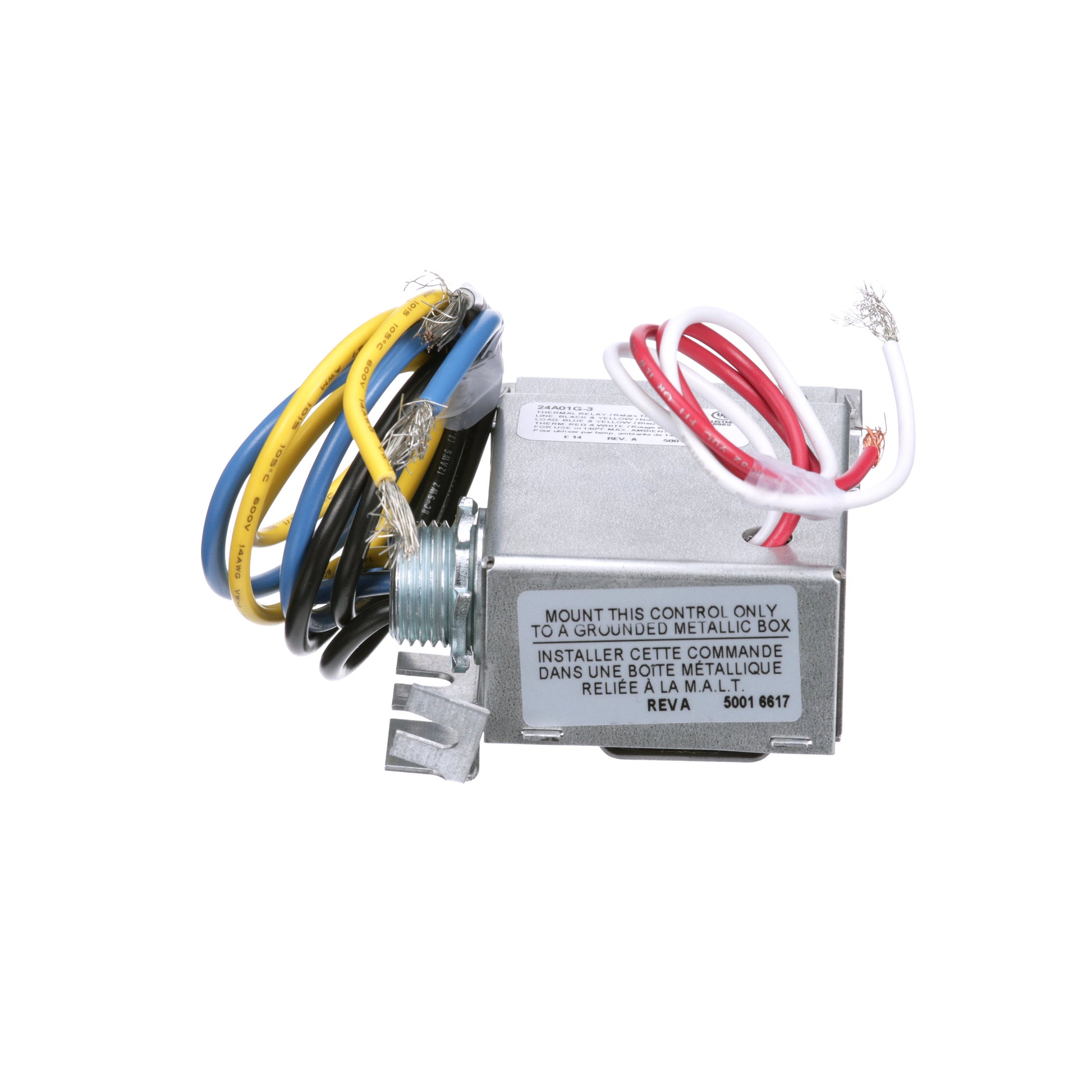

White-Rodgers 24A05Z-1 Baseboard Heater Low Voltage Control System

The Baseboard Heater Low Voltage Control System by White-Rodgers 24A05Z-1 delivers precise, whisper-quiet control for baseboard heating. This SPST, Normally Open, single-level temperature control is engineered for dependable performance with UL and CSA approvals.

Designed for 277 Volt AC at 60 Hz systems, it handles up to 6000 watts (AC resistive) at 277V and 22 amps, with a thermostat current of 0.2 amps. Its compact 4-1/2" W x 2-7/16" D x 1-7/8" H enclosure fits neatly beside baseboard heaters and features an 18-inch lead for flexible wiring. Operating in ambient temperatures from -20 to 140°F, this control system provides reliable, steady comfort through a simple, low-delay design (average time delay 45 seconds).

• SPST, Normally Open
• Single Level Temperature with Silent Operation
• Voltage: 277V AC, 60 Hz; Power: 6000W (AC Resistive) at 277V; 22A
• Thermostat Current: 0.2A
• UL & CSA Approved; Lead Length: 18"
• Dimensions: 4-1/2" W x 2-7/16" D x 1-7/8" H
• Operating Range: -20 to 140°F; Average Time Delay: 45 seconds
