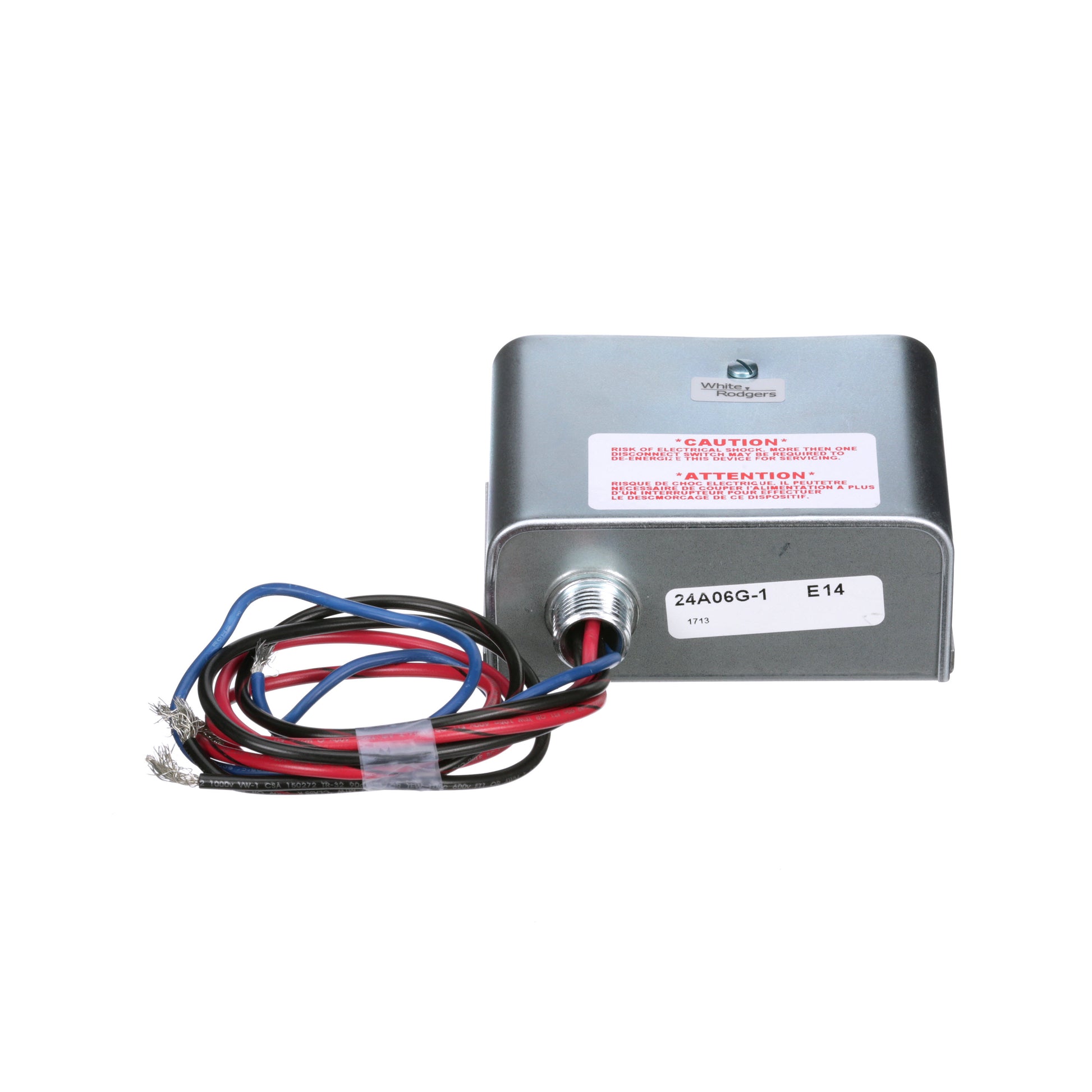

White-Rodgers 24A06G-1 Baseboard Heater Low Voltage Control System

The Baseboard Heater Low Voltage Control System, model White-Rodgers 24A06G-1, delivers precise, silent temperature control for baseboard heating applications.

Designed with SPST, Normally Open operation and dual-level temperature sensing, this compact control fits 4-13/16" W x 2-1/8" D x 3-13/16" H and runs on 240V AC at 60 Hz. It supports high-load resistive heating up to 6000 watts and 25A, with a 12A full-load motor rating and 72A locked rotor rating. The thermostat draws only 0.2A and is rated for ambient temperatures from -20 to 120°F, with an 18-inch lead and an average 45-second time delay. Ideal for residential or commercial installations, with simple wiring and UL/CSA compliance.

• Type and operation: SPST Normally Open control for baseboard heaters.
• Electrical specs: 240V AC, 60 Hz; supports up to 6000W (25A) resistive load.
• Motor ratings: 12A full-load, 72A locked rotor.
• Durability and range: UL/CSA certified; ambient -20 to 120°F; 18" lead.
• Response time: Time delay ~45 seconds for stable temperature control.
