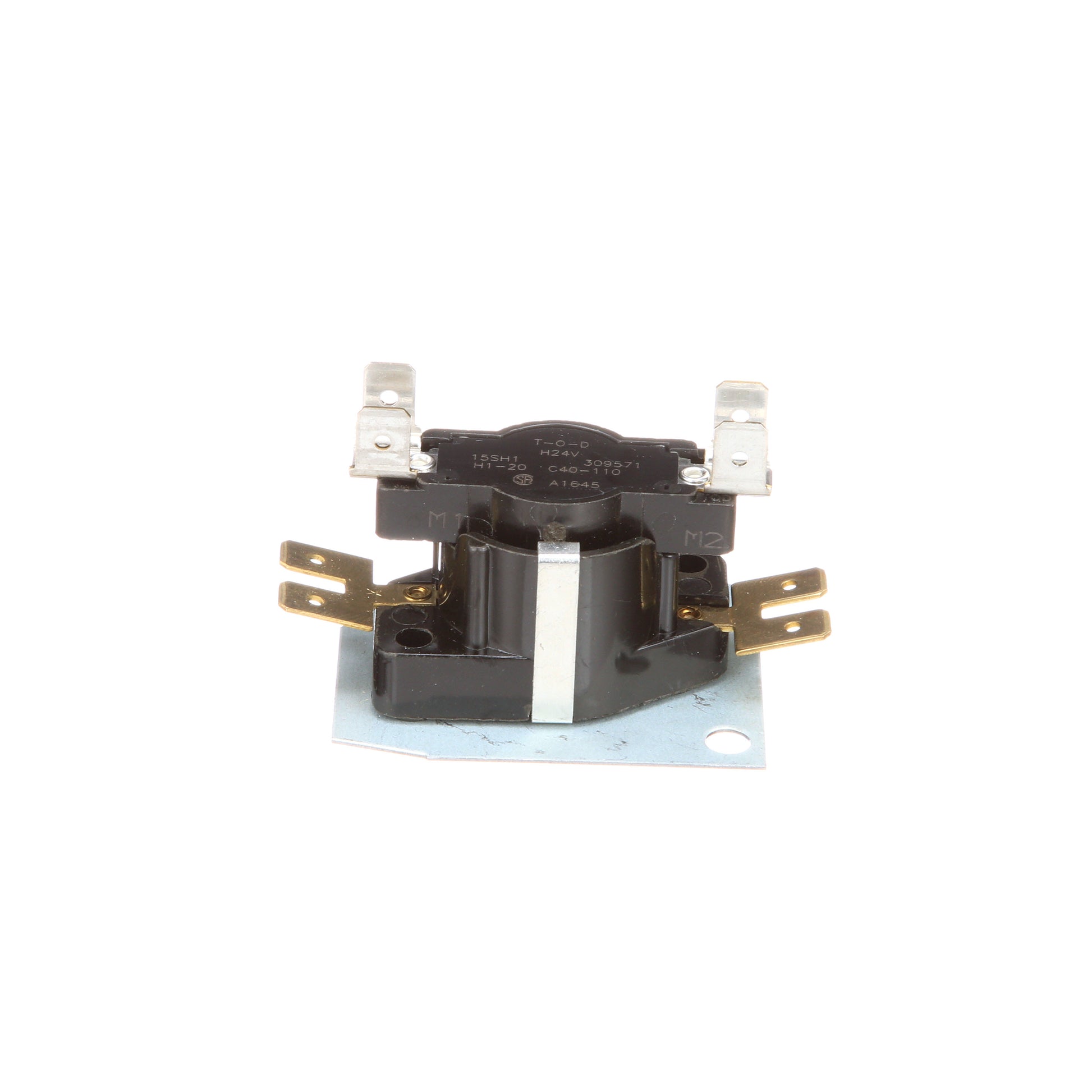

White-Rodgers 24A34-1 Electric Heat Sequencer

The White-Rodgers 24A34-1 Electric Heat Sequencer is designed to coordinate heating and fan systems with reliable On/Off-Delay timing. This unit accepts 24 V input control and supports 120/240/480 VAC power, delivering precise sequencing for residential or light commercial equipment. Ideal for fan and electronic heat applications, it provides flexible Multi-Poise mounting to fit a range of installations.

• Timing Mode: On/Off-Delay for smooth startup and shutdown
• Timing Range: 1–20 seconds (On), 40–110 seconds (Off)
• Voltage & Power: 120/240/480 VAC; 3000 W at 120 V; 6000 W at 240/480 V
• Control & Load: 24 V input; Current ratings: 25 A resistive at 120/240 VAC; 14/72 A at 120 VAC; 7/42 A at 240 VAC (full load/locked rotor); Pilot duty: 125 VA at 120/240 VAC; 480 VA at 480 VAC
• Mounting: Multi-Poise mounting for flexible installation
• Application: Suitable for fan or electronic heat control
• Safety & Compliance: UL approved
