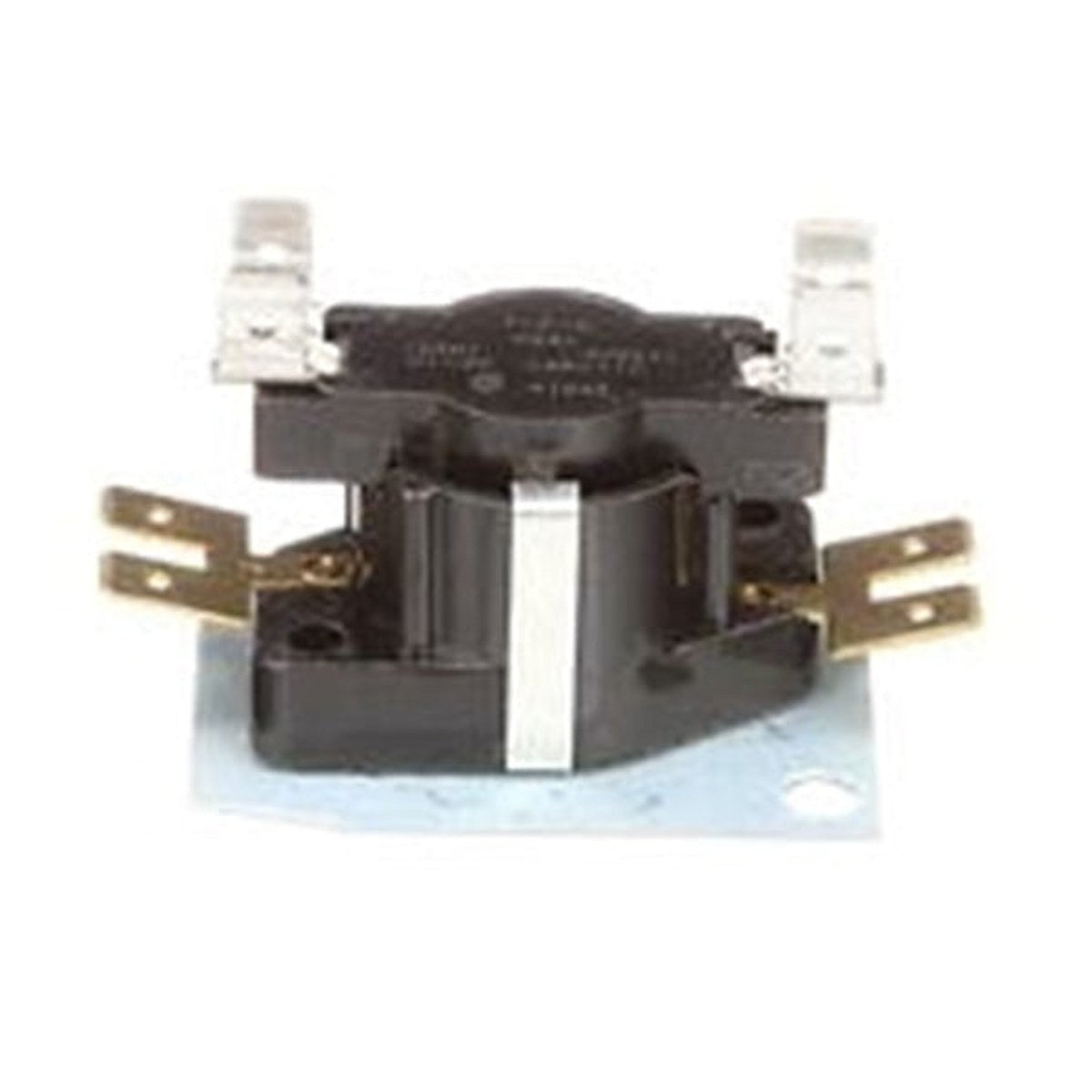

White-Rodgers 24A34-5 Electric Heat Sequencer

White-Rodgers 24A34-5 Electric Heat Sequencer is a robust controller for electric heating systems, delivering precise sequencing and timing.

With 120/240/480 VAC operation and an On/Off-Delay timing mode, it supports two timings and three switches to coordinate fan and electronic heat stages.

Its input control voltage is 24 V, and the UL-approved design ensures safe installation across a range of furnaces. The unit uses multi-purpose mounting to fit versatile setups.

Designed for fan/electronic heat control, this sequencer provides reliable performance across temperature extremes and demanding electrical loads.

• Voltage compatibility: 120/240/480 VAC
• Timing: On/Off-Delay, 1–110 seconds
• Timings: 2 channels; Switches: 3
• Input control voltage: 24 V
• Current rating: 25 A resistive at 120/240 VAC; 14/72 A at 120 VAC; 7/42 A at 240 VAC (full load/locked rotor)
• Power rating: 3000 W at 120 VAC; 6000 W at 240/480 VAC
• Temperature range: -50 to 165°F
• UL approved; Mounting: multi-purpose
