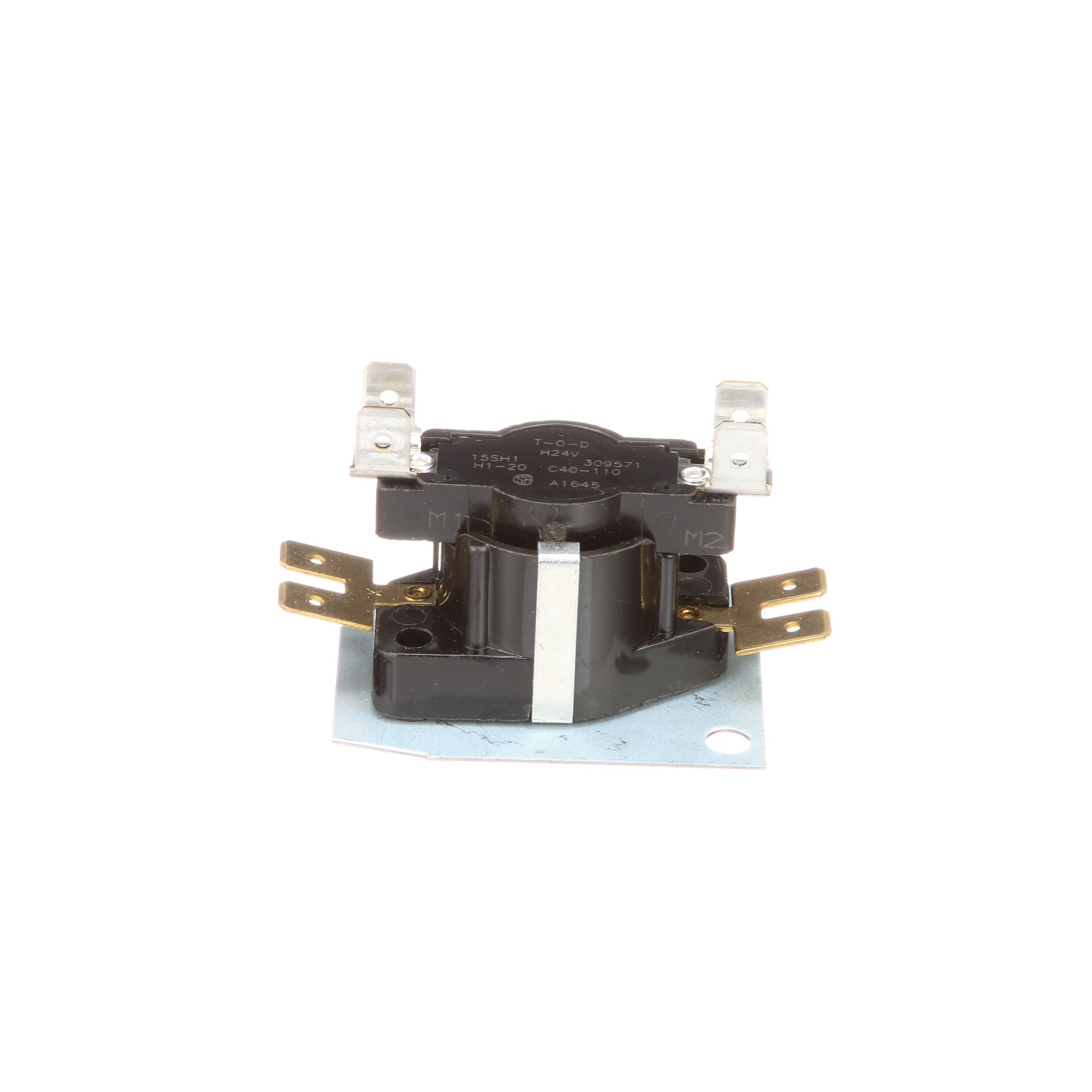

White-Rodgers 24A34-6 Electric Heat Sequencer

The White-Rodgers 24A34-6 Electric Heat Sequencer delivers precise On/Off-Delay timing for heating stages across 120/240/480 VAC systems. This UL-approved controller is designed for fan and electronic heat applications, providing reliable sequencing with easy multi-poise mounting.

With a 24 V input control voltage and two timing cycles, it supports four switches to manage multiple heat stages. Its robust power rating covers 3000 watts at 120 V and 6000 watts at 240/480 V, making it suitable for a range of residential and light commercial units.

• Timing mode: On/Off-Delay with range 1–110 seconds
• Inputs & switches: 2 timings, 4 switches; 24 V input control
• Voltage & current: 120/240/480 VAC; resistive up to 25 A at 120/240 VAC; 14/72 A at 120 V; 7/42 A at 240 V; pilot duty up to 125 V / 480 V
• Power rating: 3000 W at 120 V; 6000 W at 240/480 V
• Mounting & range: Multi-Poise mounting; -50 to 165 F
• Approval: UL listed

Designed for reliable, long-term operation in heating systems, this sequencer ensures dependable performance and straightforward integration into existing HVAC controls.
