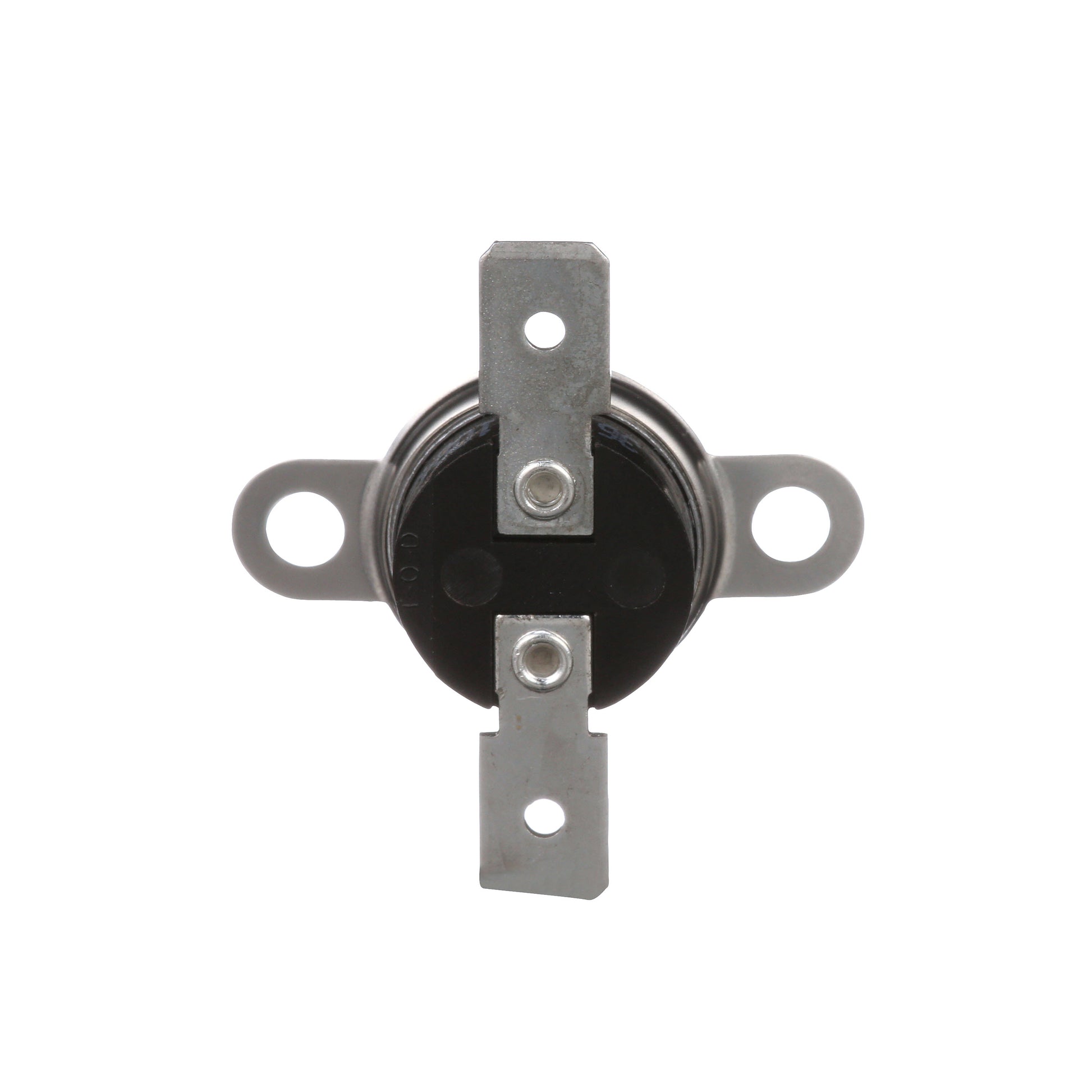

White-Rodgers 3F01-200 Heating Snap Disc Fan Control

The White-Rodgers 3F01-200 Heating Snap Disc Fan Control is a reliable, temperature-activated control ideal for furnaces, fans, and blowers. This Snap Disc Fan Control uses a SPST switch that closes on rise to activate heating or blower circuits, ensuring responsive operation.

Designed with Therm-O-Disc style 60T12 and Type 610066 engineering, it mounts on a 3/4 inch flanged Airstream for easy installation and secure mounting in compact HVAC assemblies.

Key specs and performance make it suitable for a range of systems, including 120/240 V AC full-load environments and 120/240/277 V AC resistive/pilot duties.

• Mounting: 3/4 inch flanged Airstream mount for dependable installation
• Switch type: SPST, Close on Rise
• Voltage rating: 120/240 VAC (Full Load); 120/240/277 VAC (Resistive/Pilot)
• Current rating: 10 A at 120 V; 5 A at 240 V (Full Load); 25 A at 120/240 V; 21.6 A at 277 V (Resistive)
• Power rating: 125 VA at 120/240/277 VAC (Pilot Duty)
• Temperature range: 200°F (Cut-In); 180°F (Cut-Out)
• Usage: Suitable for Fan/Blower/Heating Control
