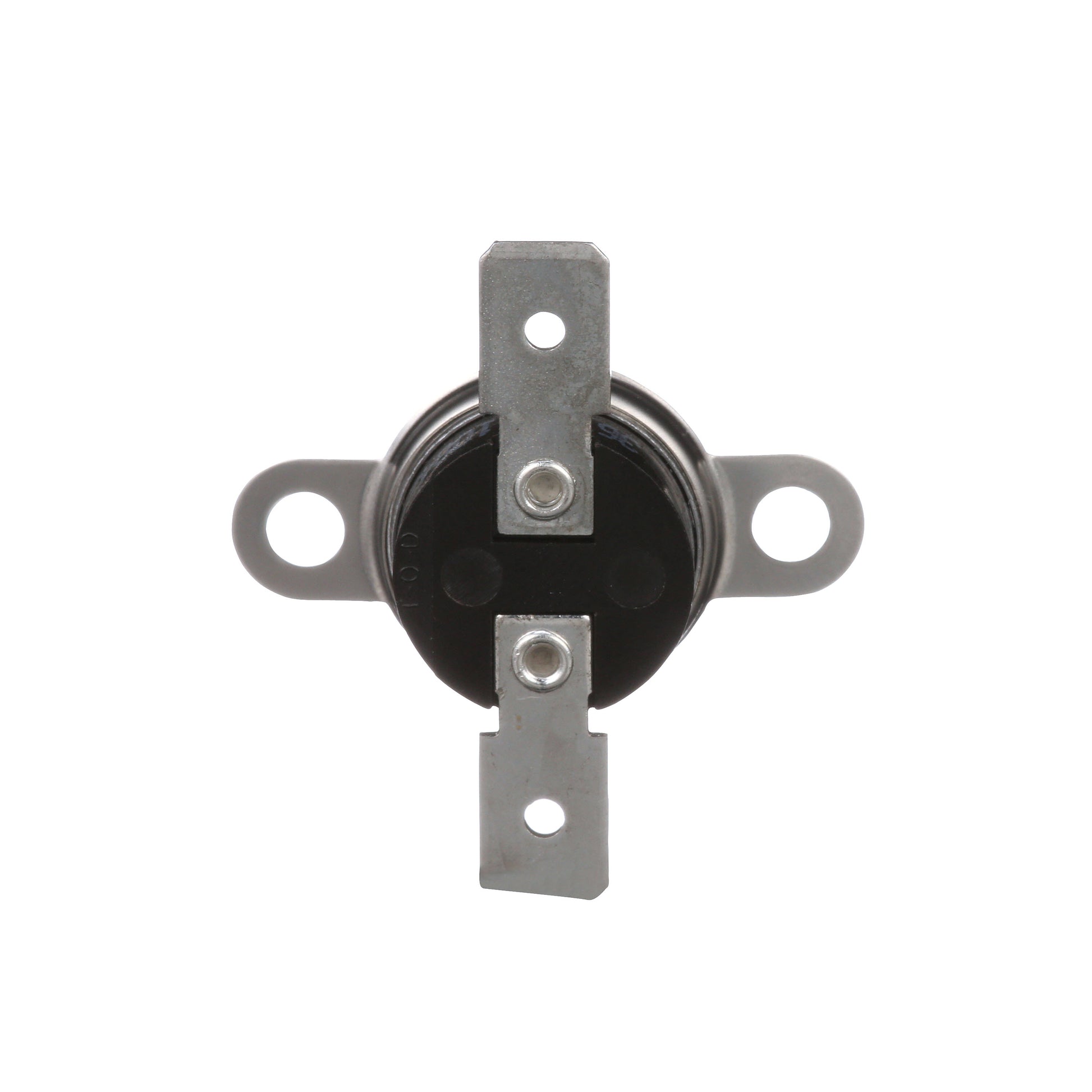

White-Rodgers 3L01-130 Heating Snap Disc Fan/Limit Control

White-Rodgers 3L01-130 Heating Snap Disc Fan/Limit Control is a reliable snap-disc limit control designed for blowers and heating safety applications. This SPST, Open on Rise switch uses Therm-O-Disc technology (60T11 style, 610002 type) and mounts on a 3/4 inch flanged airstream frame to fit standard furnace assemblies.

Engineered for robust performance, it handles a wide voltage range (120/240 VAC full load and 120/240/277 VAC resistive/pilot) with current ratings up to 25 A for resistive loads. The device also features a 125 VA pilot duty rating, ensuring reliable control for safety and blower operations.

With a cut-in at 115°F and cut-out at 130°F, it provides precise temperature-triggered safety for heating systems, protecting equipment and maintaining comfort. The White-Rodgers 3L01-130 is ideal as a high-limit safety control or as a heating control in HVAC equipment, compatible with Therm-O-Disc style components and standard SPST configurations.

• Type: Snap Disc Limit Control, SPST, Open on Rise
• Mounting: 3/4 inch Flanged Airstream Mount
• Electrical: 120/240 VAC full load; 120/240/277 VAC resistive/pilot duty; 10 A (120V), 5 A (240V), 25 A (120/240V resistive), 21.6 A (277V)
• Power: 125 VA pilot duty
• Temperature Range: 115°F (cut-in) to 130°F (cut-out)
