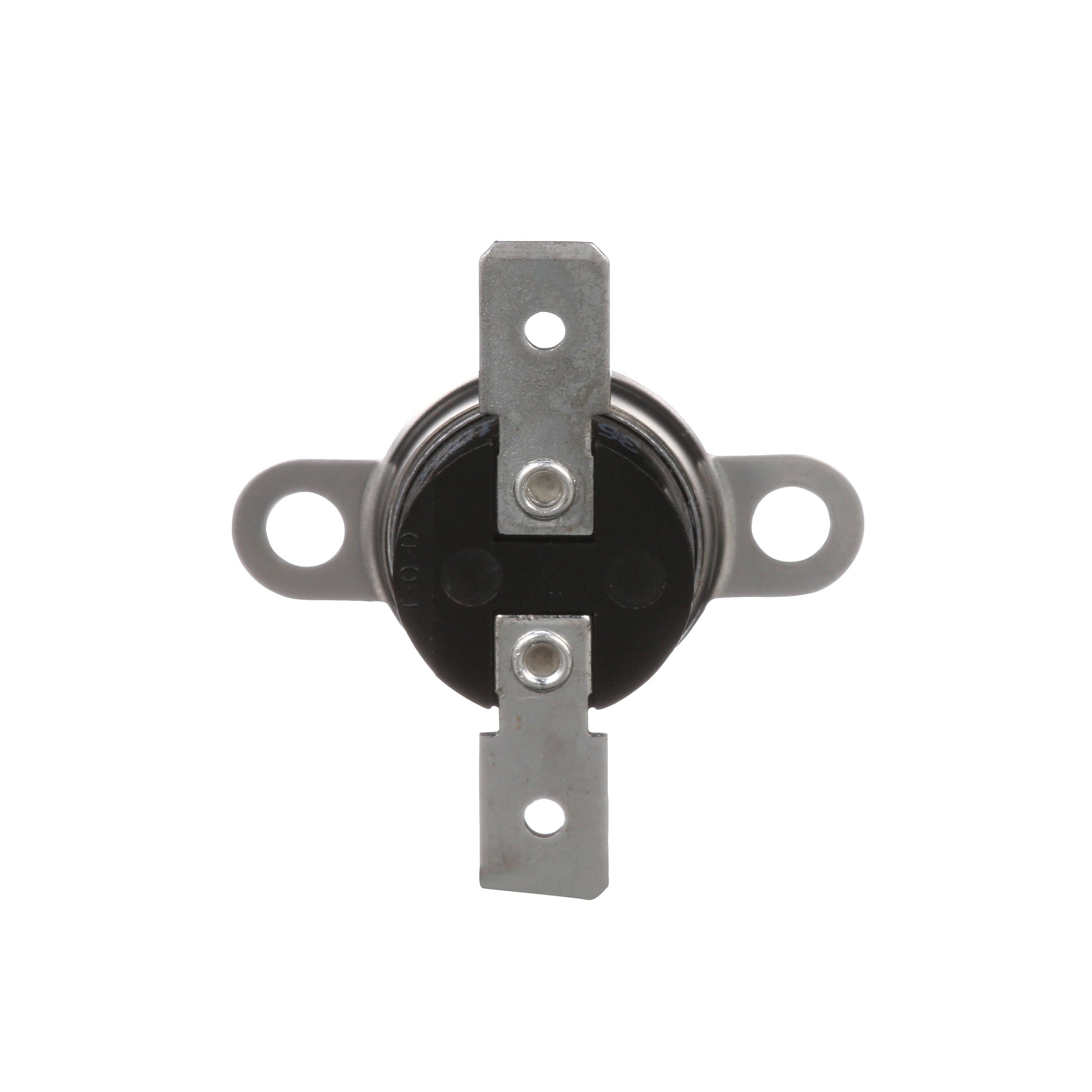

White-Rodgers 3L02-200 Heating Snap Disc Limit Control

White-Rodgers 3L02-200 Heating Snap Disc Limit Control is a compact, manual reset limit switch designed for blower or high-limit safety/heating control systems. Engineered with Therm-O-Disc style 60T15 (Therm-O-Disc Type 330538), this snap-disc limit control delivers precise temperature sensing and dependable cut-out action to protect equipment.

With a 3/4 inch flanged airstream mount for quick installation, this SPST switch is open on rise, ensuring a fail-safe response in heating applications. It is designed for reliable operation across HVAC and furnace safety circuits.

• Type: Snap Disc Limit Control with Manual reset
• Switch: SPST, Open on Rise
• Mounting: 3/4 Inch Flanged Airstream Mount
• Electrical: 120/240 VAC (Full Load); 120/240/277 VAC (Resistive/Pilot Duty); Pilot rating 125 VA
• Current: 10A @ 120V; 5A @ 240V (Full Load); 25A @ 120/240V; 21.6A @ 277V (Resistive)
• Temp Rating: 200 Deg F (Cut-Out)
• Applications: Used on Blower or High Limit Safety/Heating Control
