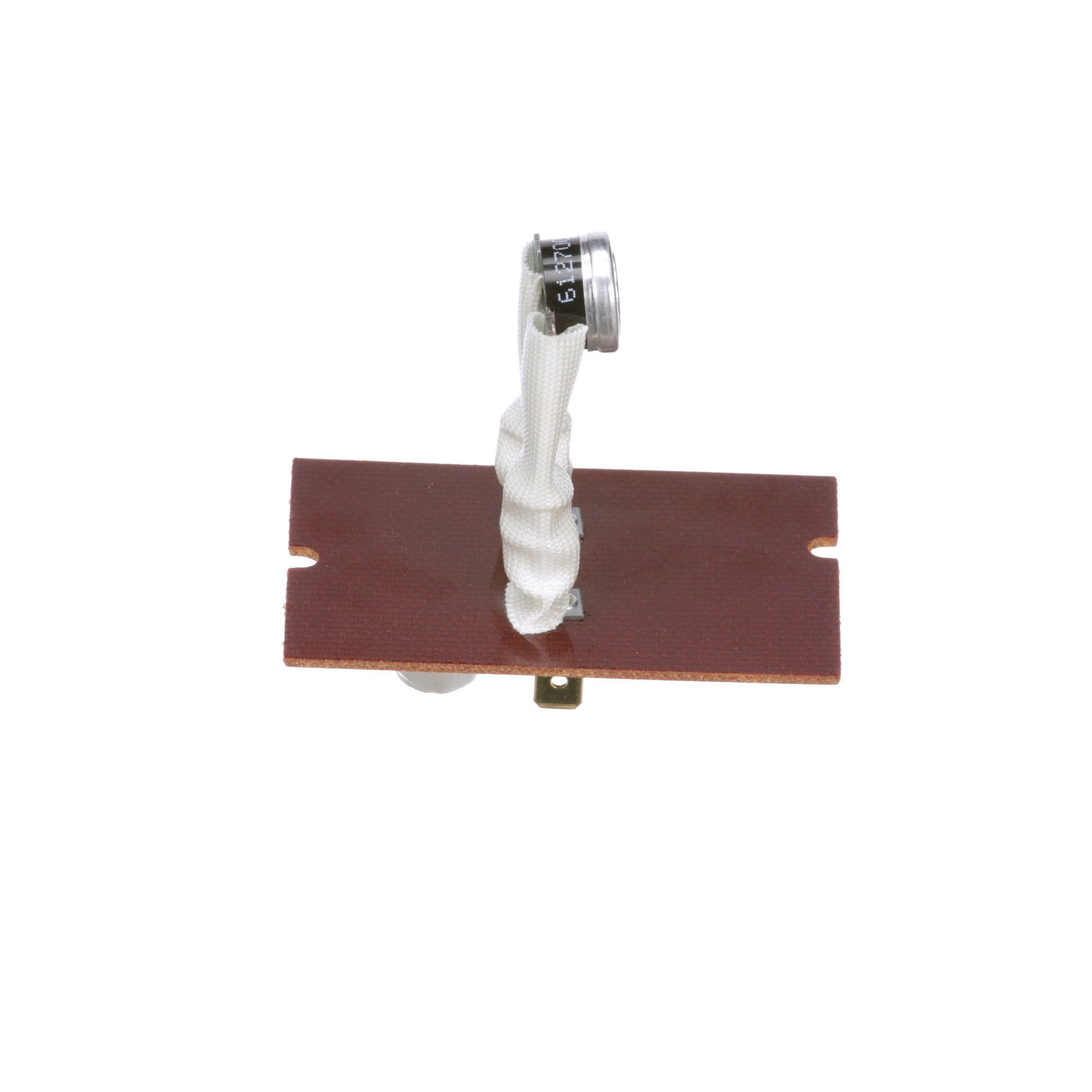

White-Rodgers 3L09-13 Heating Limit Control

The White-Rodgers 3L09-13 Heating Limit Control is a reliable Heating Limit Control designed to protect heating equipment from overheating and ensure safe, consistent performance. Built with Therm-O-Disc Type 36T components and Therm-O-Disc Style 612723, this unit is optimized for easy integration into standard control assemblies. Its compact 3.12-inch length and 1/2-inch bimetal disc deliver precise cut-in and cut-out temperatures in demanding environments.

• Type: Limit Control
• Used On: Heating Control
• Therm-O-Disc Type: 36T
• Therm-O-Disc Style: 612723
• Mounting Type: Board
• Length: 3.12 inches
• Bimetal Disc Size: 1/2 inch
• Voltage Rating: 120/240/277 VAC (Resistive); 120/240 VAC (Inductive)
• Current Rating: 15A @ 120V; 13A @ 240V; 9.3A @ 277V (Resistive); 5.8A Full Load; 34.8A Locked Rotor @ 120V; 2.9A Full Load; 13A Locked Rotor @ 240V (Inductive)
• Power Rating: 125 VA Pilot Duty
• Temperature Rating: Open 240°F; Close 210°F
• Temperature Setting On Panel: L240-30F
